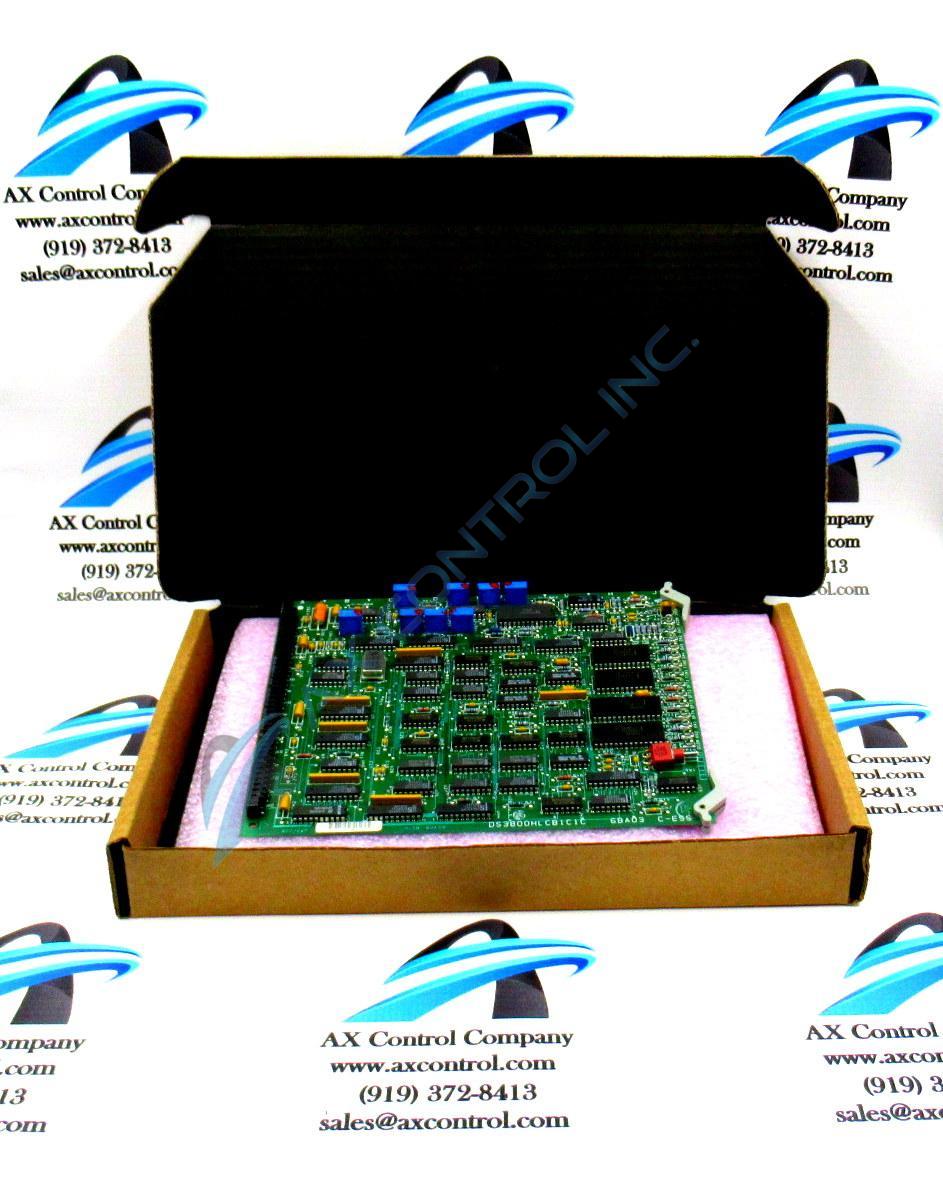

The DS3800HLCB1D1C LCI Contact Interface Board

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a DS3800HLCB1D1C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: DS3800HLCB1D1C
SKU: GBTC-12004

Manufacturer: GE Boards & Turbine Control
Series: Mark IV DS3800

Description
Repairs
Warranty
Manuals

DS3800HLCB1D1C Technical Specifications

Part Number	DS3800HLCB1D1C
Manufacturer	General Electric
Series	Mark IV DS3800
Board Type	LCI Contact Interface Board

About the DS3800HLCB1D1C

The GE LCI Contact Interface Board DS3800HIOD1D1C is designed for quick installation in the drive. The board features a modular connector on 1 end and retention levers on the other end. The GE LCI Contact Interface Board DS3800HIOD1D1C also is populated with a reset button located between the retention levers making it accessible from the front of the board. It also is populated with 8 trimmer resistor components and erasable programmable read-only memory (EPROM) modules.

The drive contains a modular connector at the end of each board rack. When you slide a board into the rack, the 2 modular connectors meet. The connectors have the same number of connectors and are designed to press into each other to make signal and power connections.

Carefully slide the board into the rack and make sure the components on the board do not scrape against the sides of the rack. The components might be damaged by rough contact with the metal rack. Press the board into the rack with your thumbs to seat the modular connectors. Open the retention levers on the board so that they are prepared to lock the board in the rack. Then close the retention levers. This locks the modular connectors together and prevents the board from moving also.

The modular connectors serve several purposes. They enable the board to receive the current to power the board. The modular connectors also provide the means for the board to receive all command signals from the other boards in the drive. The board also sends signals through the modular connectors.

Reviews For DS3800HLCB1D1C

Internal Review

(5.0)

The DS3800HLCB1D1C is designed to easily be installed within drives from gas and steam turbine systems. The board has a variety of components, including the EPROM modules that store memory. The board can be sensitive to certain environments, including static and extreme temperatures. - AX Control Lead Technician

Repair Services For DS3800HLCB1D1C

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$304

Our highly skilled technicians can repair your DS3800HLCB1D1C. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
