DS3800HDDL

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GENERAL ELECTRIC MARK IV DIAGNOSTIC DISPLAY DIVER BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3800HDDL to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

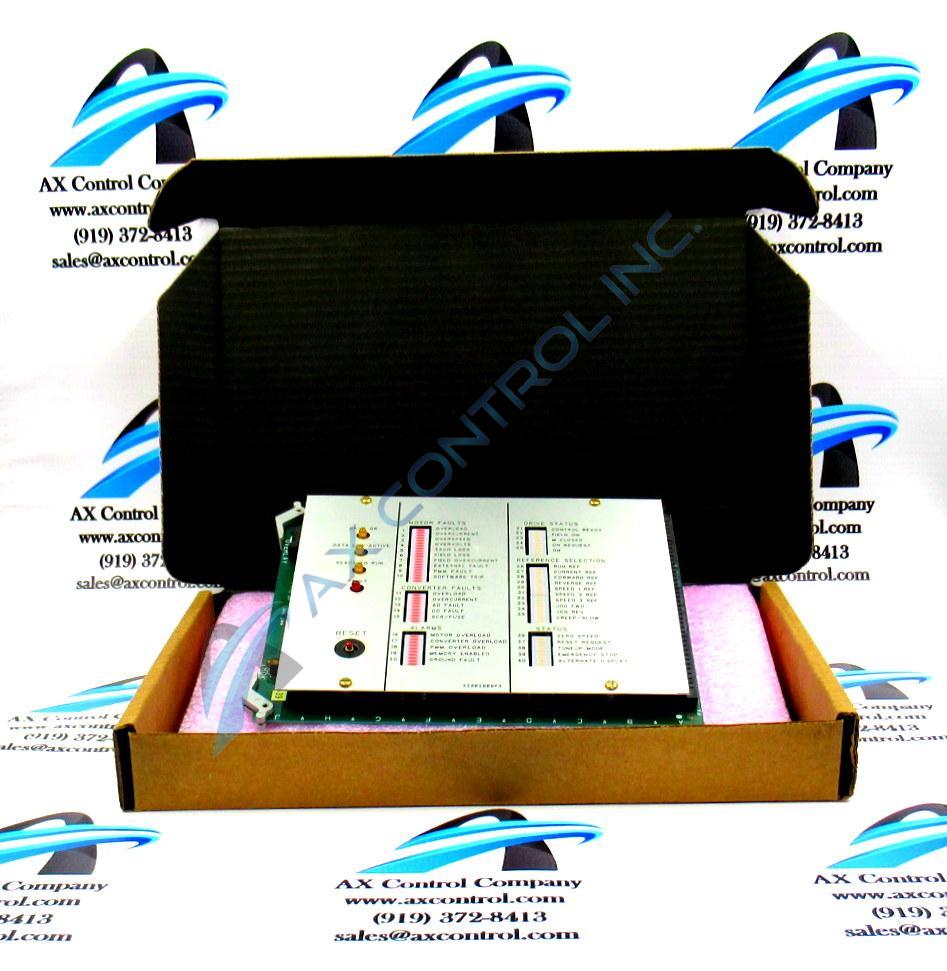

The DS3800HDDL is an HMI or human-machine interface by General Electric. The DS3800HDDL has forty-five light blue resistors with red, purple, yellow, black and brown bands. There are four resistors that are light blue and have a brown band three black bands and then another brown band. The last resistor is light blue with two brown bands, two black bands, and one last brown band. These resistors are banded to show how much energy each resistor can contain. There are fifteen EPROMs. Each EPROM is a programmable component that holds the data for the board to function properly. There is a section on the DS3800HDDL where an additional EPROM can be placed. This section is labeled "SPARE" and has the proper connection points. There are fifteen teal colored diodes. The DS3800HDDL also has a large female connection terminal along the edge. The bottom edge is labeled A-I with small triangles in between each letter. The DS3800HDDL also has two yellow ten prong capacitors and two silver capacitors. This board also features five LED (light emitting diodes). Four of the LEDs are yellow in color and one is red. There are also six strips each featuring a small section that lights up. Each light in theses strips has a corresponding number and phase to indicate what is going on with the machine. Each strip of lights is broken up into different sections. The sections are Motor Faults, Converter Faults, Alarms, Drive Status, Reference Selection, and Status. There is also a small reset button to press once the issue has been fixed.

Repair Services For DS3800HDDL

Type Lead Time Price Action
Repair Service 1-2 weeks $383

Our highly skilled technicians can repair your DS3800HDDL. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
