DS200VPBLG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
The General Electric LS2100 VME Backplane DS200VPBLG2A is used for external connections that cannot be achieved through the VME board due to space restrictions. This model also uses a twelve-pin Mate-n-Lock for power supple connection.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200VPBLG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200VPBLG2A
  • SKU: DS200VPBLG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200VPBLG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
The General Electric LS2100 VME Backplane DS200VPBLG2A is used for external connections that cannot be achieved through the VME board due to space restrictions. This model also uses a twelve-pin Mate-n-Lock for power supple connection.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200VPBLG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200VPBLG2A
  • SKU: DS200VPBLG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200VPBLG2A Technical Specifications

Board Level Base Level
Exciter Connector Type 34-Pin Ribbon
Functional Acronym/Abbreviation VPBL
Group Variation G2
Manufacturer GE Industrial Systems, General Electric Company US
Number of VME Connectors Eight

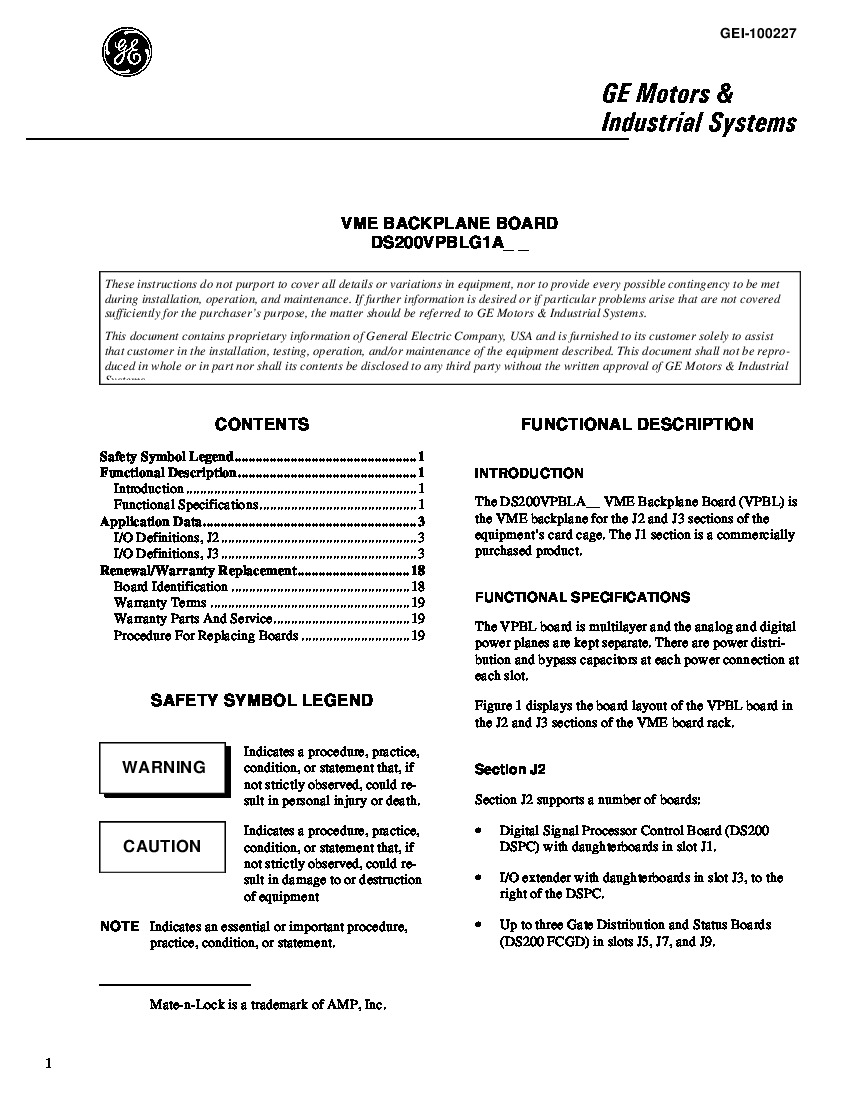

Part Specific Manual GEI-100227
Terminal Block 12-Pin

Frequently Asked Questions about DS200VPBLG2A

What are the power bugs that are within the DS200VPBLG2A board?

The ten power bugs that are on the DS200VPBLG2A board are used to electrically connect the VPBL model to the P1 backplane. All information regarding the power bugs can be found in table twenty-two of the GEI-100227 VME Backplane Board User's Guide.

What type of power connector does the DS200VPBLG2A board use?

The DS200VPBLG2A board uses JAA, a 12-pin Mate-n-Lock for power supply connection. Two of the nomenclatures are DCOMI and a digital common ground, that is isolated and ACOMI, which is a analog common ground, isolated.

How are the eight VME-type connectors in section J2 used on the DS200VPBLG2A board?

Six of the eight connectors are arranged with double-wide spacing and the spare two are single-spaced. The connectors are all used in many instances. For example, two of the J13 connectors, J13-A1, and J13-A1 are digital common grounds connections, for more information regarding the eight VME connectors please refer to the GEI-100227 VME Backplane Board User's Guide tables ten through seventeen for more extensive information.

How is the Diagnostics Connector used?

The Diagnostics Connector is used to provide input and output connections to the processor on the J1 section. Pin names, nomenclatures, and descriptions of such are listed within the second table of the GEI-100227 manual.

Product Description

VME Backplane Board DS200VPBLG2A is part of the LS2100 Series produced by General Electric Industrial Systems. The model is the second version of the VPBL model. There are a number of sections within the VME Backplane, section J2 supports a number of boards within the LS2100 Series. The boards supported in section J2 are a DSPC, up to three Gate Distribution Status Boards, one exciter board, and an I/O extender daughterboard.

The DS200VPBLG2A model has many input/output definitions, the specific definitions in the J2 section of the mode are the eight VME-type connectors, of the eight six are positioned with double-wide spacing, the two that are left over are single-spaced and allow for the opportunity for more capability enhancements.

The DS200VPBLG2A model has a total of ten power bugs, the purpose of which is to electrically connect the P1 backplane to the VPBL. The model also has a thirty-four-pin ribbon connector, labeled as an EXJV. The purpose of the exciter connection is to handle all of the signals for the external exciter bridge.

If you have any questions regarding this model refer to the GEI-100227 VME Backplane Board VPBL User’s Guide. More information can be found on page twenty-one of the GEH-6373 Series Manual.
