DS200SIOBG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
General Electric SC2000 VME I/O Model DS200SIOBG1A is used with the UC2000V board for extra input/output in some applications, please use the GEI-100250 guide when operating the DS200SIOBG1A model.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200SIOBG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SIOBG1A
  • SKU: DS200SIOBG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200SIOBG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
General Electric SC2000 VME I/O Model DS200SIOBG1A is used with the UC2000V board for extra input/output in some applications, please use the GEI-100250 guide when operating the DS200SIOBG1A model.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200SIOBG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SIOBG1A
  • SKU: DS200SIOBG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200SIOBG1A Technical Specifications

Alphanumeric Catalog Number DS200SIOBG1A
Board Type Input/Output Board
Functional Acronym/Abbreviation SIOB
Manuals GEI-100250, GEH-6371, and GEH-6373
Manufacturer General Electric Company USA, GE Industrial Systems
Series LS2100

Frequently Asked Questions about DS200SIOBG1A

What types of data transfer does the DS200SIOBG1A support?

The DS200SIOBG1A board supports 16-bit data transfers and standard I/O address modifers.

Are there any LEDs on the DS200SIOBG1A that can help with a status indication?

Yes, there is one LED that will be lit when the DS200SIOBG1A has been accessed by the VME.

What does the error number 90 with a LED code 5A mean in regards to the DS200SIOBG1A board?

When being used with the UC2000V board the error number 90 indicates that there are missing SIOB device records.

What does the DS200SIOBG1A connect to?

The DS200SIOBG1A board connects to a standard VME P1 connector and will occupy one VME slot.

What do the error number (decimal) 181 and LED code B5 mean?

These two errors mean that an error has occurred while attempting to map the SIOB I/O interface has occurred.

Product Description

The DS200SIOBG1A model is an SC2000 VME I/O Board within the LS2100 Series. The board is a universal input/output terminal board that can be used with the UC2000V board to allow for additional inputs and outputs needed in some applications. This model can connect to a standard VME connector. On the faceplate of this model, there are two I/O connectors, these connectors are labeled as J2 and J1.

The DS200SIOBG1A will support up to sixteen bits of data transfers as well as typical input/output address modifications. When it pertains to the two input/output connectors they need to be attached by special cables to the TBA and TBB Terminal Boards for external connections. This model is used universally with other input/output terminal boards.

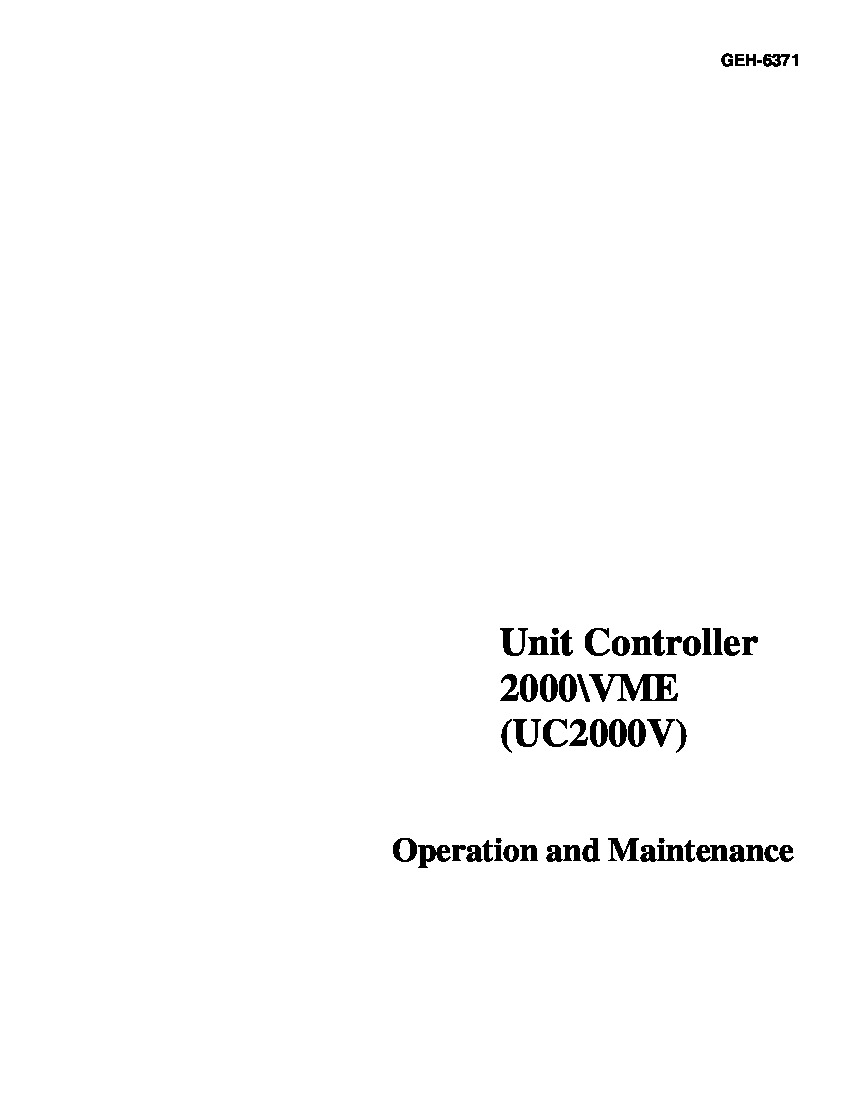

Information on the DS200SIOBG1A can be found in several manuals, those manuals being the GEH-6371 and the GEI-100250. We have a large stock available for this device and can not only help refurbish and repair this item for you but if needed a new one can be supplied for you. For inquiries into pricing please contact us by email or phone number.

Reviews For DS200SIOBG1A
Internal Review

General Electric's DS200SIOBG1A model is a universal input/output terminal board. Information on the model can be found in the GEI-100250 manual. - AX Control Tech Team
