The High Voltage Gate Interface Board DS200FHVAG1A is a board that provides SCR gate interfaces and cell voltage monitoring functions for the power converter. There is a diagnostic LED for the SCR Status Circuit that allows for a visual indication of the potential of blocking voltages.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FHVAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FHVAG1A
  • SKU: DS200FHVAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FHVAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The High Voltage Gate Interface Board DS200FHVAG1A is a board that provides SCR gate interfaces and cell voltage monitoring functions for the power converter. There is a diagnostic LED for the SCR Status Circuit that allows for a visual indication of the potential of blocking voltages.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FHVAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FHVAG1A
  • SKU: DS200FHVAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FHVAG1A Technical Specifications

Ambient Temperature Range 0-50°C
Board Type High Voltage Gate Interface Board
Dimensions 3.25 inches high by 5 inches wide
Functional Acronym/Abbreviation FHVA
Parts Manual GEI-100224
Quantity of FHVA Connections 5

Frequently Asked Questions about DS200FHVAG1A

There are circuits on the DS200FHVAG1A board, what do these circuits do?

The circuits imbedded within the DS200FHVAG1A board are used to provide an isolated path for gate power from the FGPA board to one 77 mm SCR, light an LED mounted on the board to indicate when SCR blocking voltages are present, and sense the voltage drops across the SCR and send a signal back to the FGPA board when the voltage has surpassed a certain threshold.

There are five FHVA connections, what are their names and nomenclatures?

The five FHVA connections on the DS200FHVAG1A board have the following names and nomenclatures; E2, CATH, E1, EQLRES, P1-2, CATH, P1-1, GATE, T1, GATE1, and U1, STATUS. All of the descriptions of these connections can be found on page four of the GEI-100224 High Voltage Gate Interface Board.

What should I do if this model does not have an SCR gate connected to it?

To prevent overheating of the R1 and R2 resistor pins P1-1 and P1-2 should be shorted together.

Is there importance of the A on the DS200FHVAG1A board?

Yes, the A at the end of the alphanumeric catalog number signifies the board revision and compatibility. This board is not backward compatible.

Where can I find information regarding the operation and installation of the DS200FHVAG1A board?

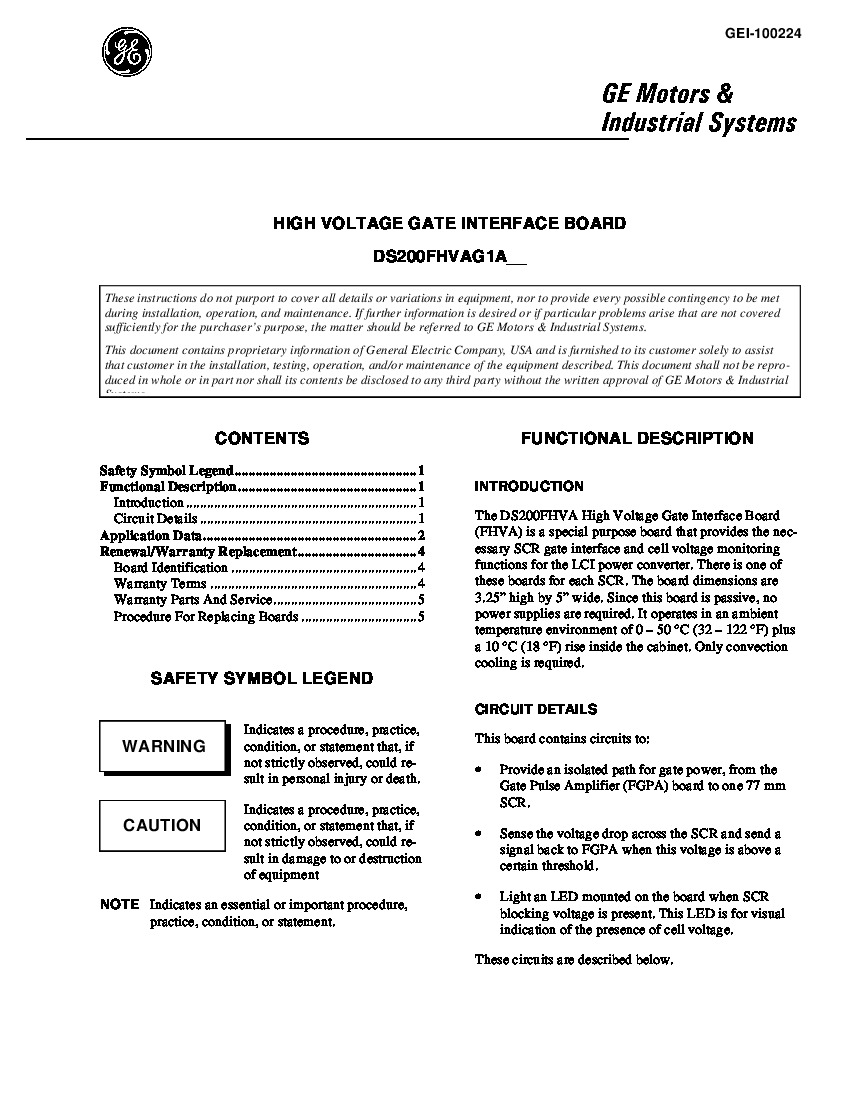

Any and all information can be found in the part-specific GEI-100224 High Voltage Gate Interface Users Manual, or the GEH-6373 Innovation Series Manual.

Product Description

The primary use of the High Voltage Gate Interface Board DS200FHVAG1A is to supply cell voltage and SCR gate interference monitoring, these functions occur through the LCI power converter. For each SCR there is one of these boards. This board comes equipped with an SCR Status Circuit LED which will give off a visible indication that there is a blocking presence at the voltage, please note that this lED should be visible whenever the bridge power is activated and will dim when the SCR conduction angle has increased.

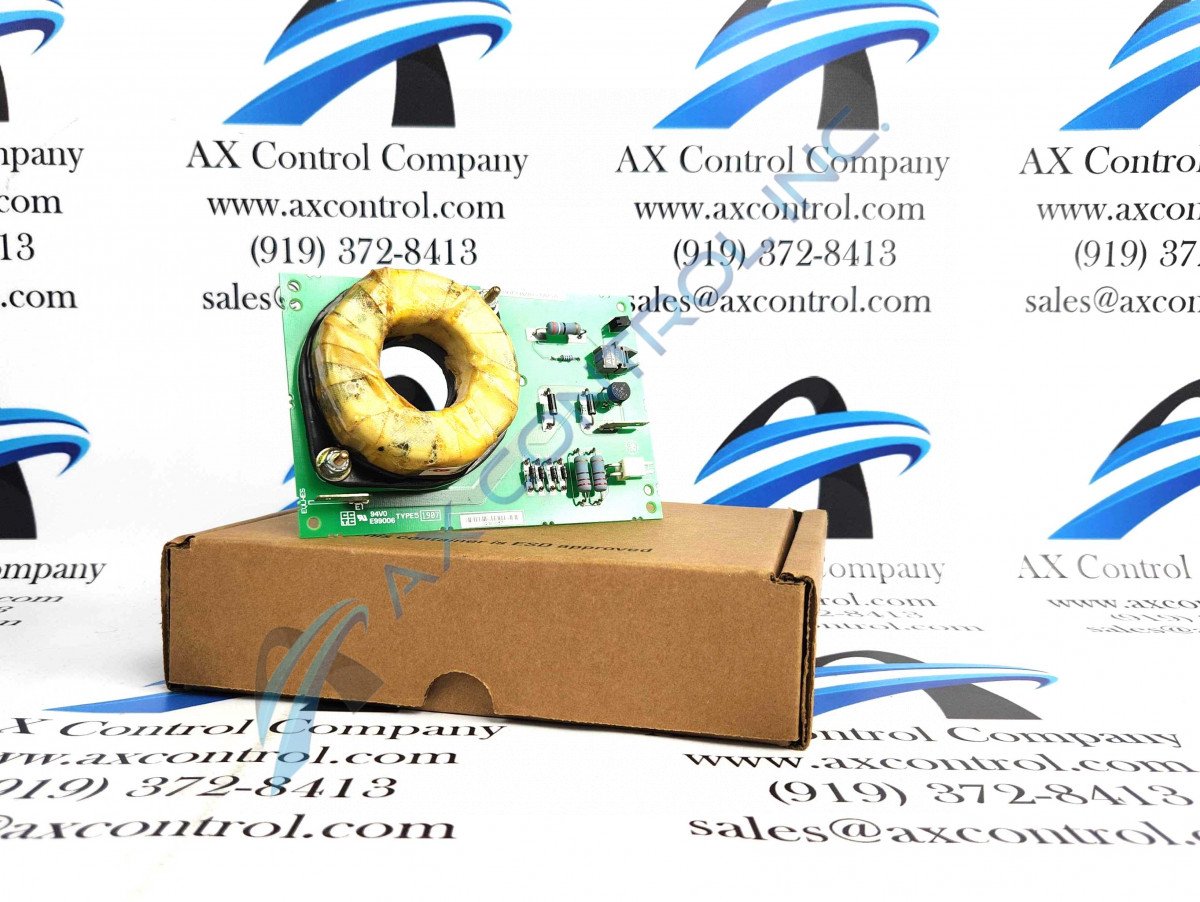

The DS200FHVAG1A model has a gate pulse transformer, this specific transformer is a toroidal transformer that is soldered to the board. There is also a fiber-optic transmitter on this board, it is critical to note that if a fiber-optic is not connected to the device then a rubber plug must be inserted into the U1 to prevent debris from accumulating on the lens. Please note that even after an hour of exposure to the lens in particularly dusty environments noticeable pollution can be seen on the lens.

The DS200FHVAG1A model is widely available on the market in both used and new surplus. If you wish to purchase a new or refurbished model, please contact us by email at sales@axcontrol.com or by phone at (919) 372-8413.

Reviews For DS200FHVAG1A
Internal Review

The DS200FHVAG1A model features a fiber-optics transmitter that must be protected if there is no connection and the transmitter port is left unprotected there will be notable damage and pollution to the lens. - AX Control Technician

Repair Services For DS200FHVAG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $650

Our highly skilled technicians can repair your DS200FHVAG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
