The DS200FCSAG2A model is a Current Sensing Feedback Board. This model is installed in the Static Starter Power Conversion Cabinet within the LS2100 Series. The DS200FCSAG2A model is used in conjunction with a number of other adjustable speed ac drive systems that are used with gas turbine generators.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCSAG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCSAG2A
  • SKU: DS200FCSAG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCSAG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The DS200FCSAG2A model is a Current Sensing Feedback Board. This model is installed in the Static Starter Power Conversion Cabinet within the LS2100 Series. The DS200FCSAG2A model is used in conjunction with a number of other adjustable speed ac drive systems that are used with gas turbine generators.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCSAG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCSAG2A
  • SKU: DS200FCSAG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCSAG2A Technical Specifications

Board Type Current Sensing Feedback Board
Functional Acronym/Abbreviation FCSA
Instruction Guide GEH-6678
Manufacturer General Electric Company USA, GE Industrial Systems
Mounting Location Static Starter Power Conversion Cabinet
Parts Manual GEI-100222
Series LS2100

Frequently Asked Questions about DS200FCSAG2A

Is there a parts-specific manual for the DS200FCSAG2A model?

Yes! The parts-specific manual for the DS200FCSAG2A model is the GEI-100222 manual. This manual is not widely available online but information on this board can be found within the GEH-6678G LS2100 Installation and Startup Users Guide attached in the Manuals tab on this page.

The DS200FCSAG2A board can sometimes be found in the Mark V Series from General Electric. How can I be sure that the DS200FCSAG2A can be used with the LS2100 Series?

In the GEI-100476 ControlST Manual, there is a page that detail all of the boards that are in the LS2100 Series. On page two hundred and ninety-three, the DS200FCSAG1A board is listed as boards within the LS2100 Series, along with documentation that can be used when operating and installing the FCSA boards.

How do I check to ensure that the voltage of the FCSA is correct?

To check for the correct voltage verify the voltages at the following points of the LEMPS plug, N15 (pin 3), P15 (pin 1), and ACOM (pin 2), once verified you can reconnect the LEMPS plug at the FCSA-L (load bridge).

Is there a difference between the CPSL and LEMPS connectors on the DS200FCSAG2A board?

The primary difference between the CPSL and LEMPS connectors is the number of pins. Both connectors are used with power control.

What should I do to ensure that there are no power errors when the DS200FCSAG2A board is being used?

If you suspect that there might be power errors on the DS200FCSAG2A board it is best to unplug the LEMPS connector.

Product Description

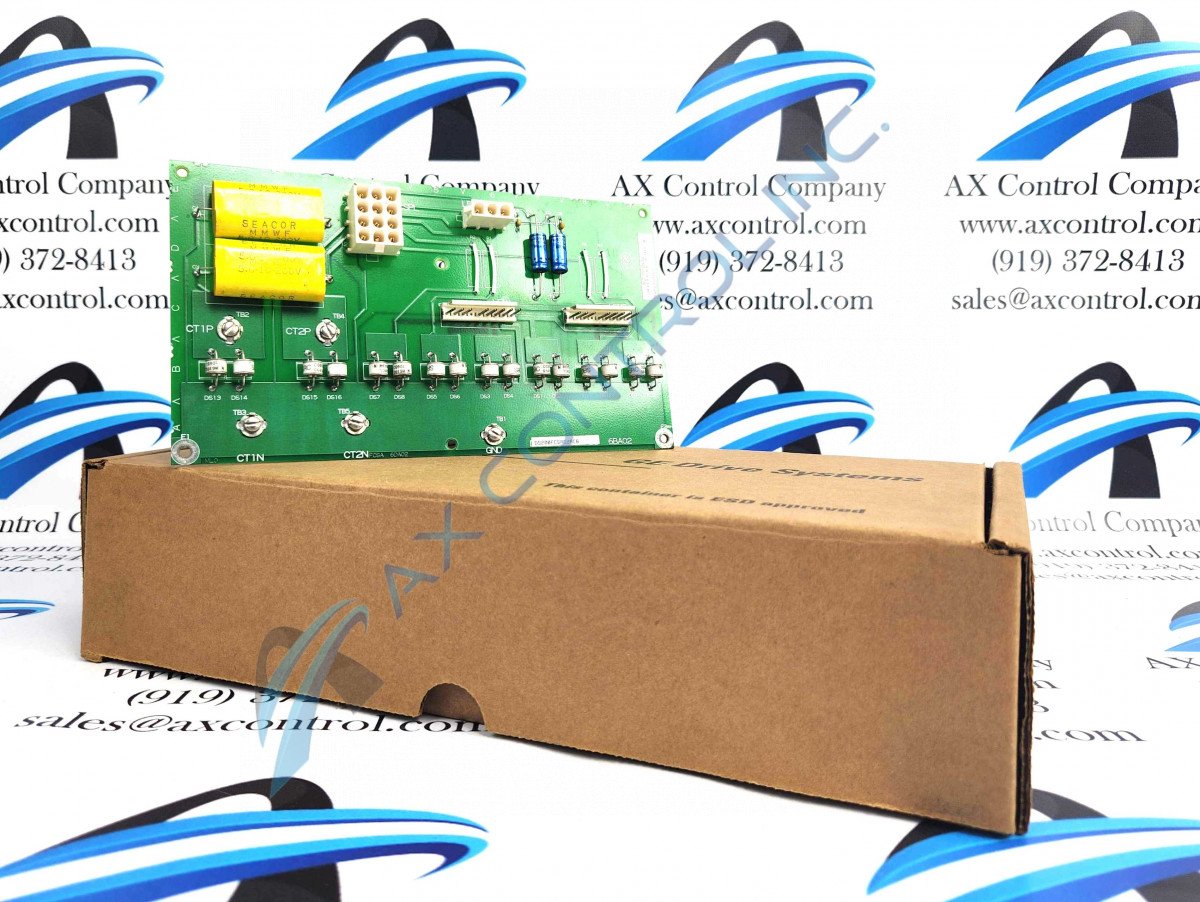

The DS200FCSAG2A board is a Current Sensing Feedback Board produced by General Electric in the LS2100 Series. This model is used alongside several boards that help with the ac drive system specifically designed to be used with gas turbine generator prime movers. This model is mounted in the static starter power conversion cabinet linked with the LS2100 Series. In terms of connectors on the board, there are two versions of sub-D pin connectors, one of the connectors is a three-pin LEMPS connector, while the other is a twelve-pin CSPL connector.

The DS200FCSAG2A model is used with a Control Power Supply (CPS). When the FCSA model is being used with the CPS, the CPS model will directly produce a voltage output for the FCSA model, typically these voltages are twenty-four, fifteen, twelve, and five volts. Sometimes it is necessary to ensure that auxiliary power does not exist on the circuits to ensure this the LEMPS connector on the DS200FCSAG2A need to be unplugged prior to checking for the correct voltage.

While the DS200FCSAG2A model is not widely available on the market as it previously was, AX Control offers refurbished boards. If you have any questions regarding the availability of this controller please contact us at (919) 372-8412.

Reviews For DS200FCSAG2A
Internal Review

Model DS200FCSAG2A is used in conjunction with a number of adjustable ac drive systems. When being used this model is specifically used with a gas turbine generator set. - AX Control Tech Team
