DS200FCSAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product

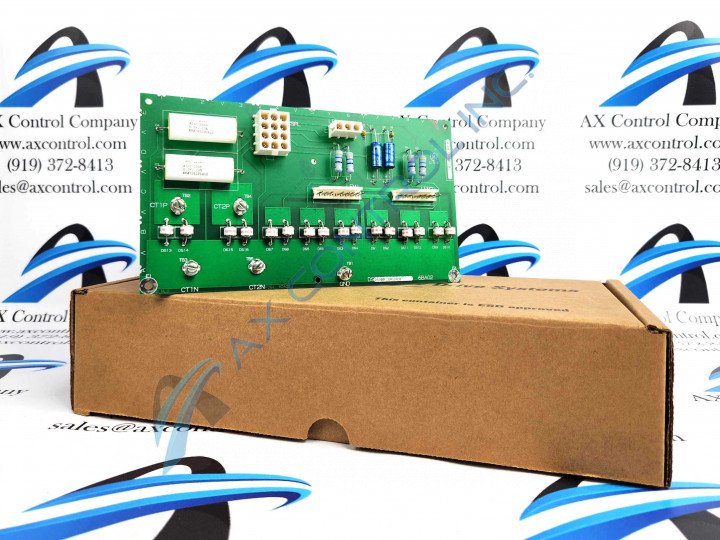

Current Feedback Board DS200FCSAG1A is used alongside the control power supply (CPS). This board accepts the 5, 12, 15, and 24 voltage supply from the CPS. Model DS200FCSAG1A is used with the parts manual labeled as the GEI-100222.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCSAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCSAG1A
  • SKU: DS200FCSAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCSAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Current Feedback Board DS200FCSAG1A is used alongside the control power supply (CPS). This board accepts the 5, 12, 15, and 24 voltage supply from the CPS. Model DS200FCSAG1A is used with the parts manual labeled as the GEI-100222.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCSAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCSAG1A
  • SKU: DS200FCSAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCSAG1A Technical Specifications

Board Type Current Sensing Feedback Board
Functional Acronym/Abbreviation FCSA
Manufacturer GE Industrial Systems, General Electric Company US

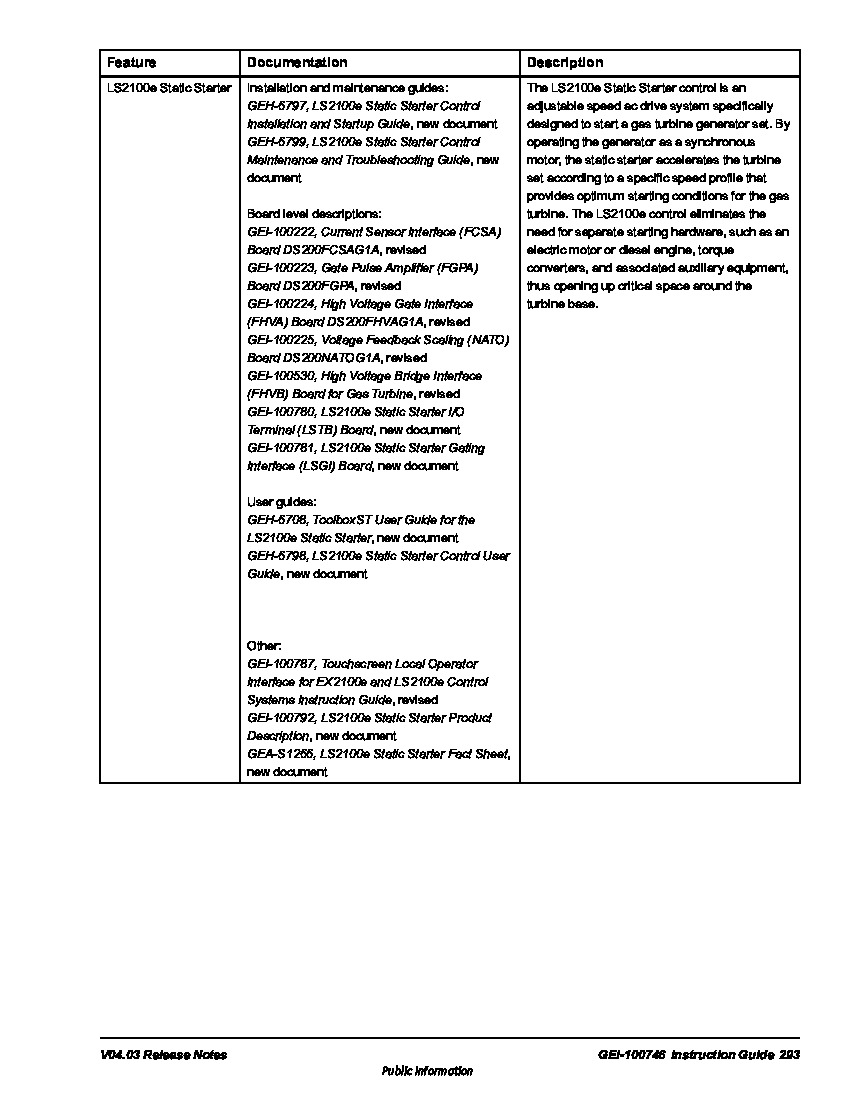

Parts Manual GEI-100222
Series LS2100
Standards CSA, UL, and CE
Supply Frequency 50 or 60 Hz

Frequently Asked Questions about DS200FCSAG1A

What is the hardware on the DS200FCSAG1A board?

The hardware on the DS200FCSAG1A board are two LEM connectors and five TB screws which are labeled as TB1 (GND), TB2 (CT1P), TB3 (CT1N), TB4 (CT2P), and TB5 (CT2N). There is also a twelve-pin CSPL connector and a three-pin LEMPS connector.

What does the DS200FCSAG1A do?

The DS200FCSAG1A board is used to collect several voltages that are produced by the Control Power Supply.

Where is the DS200FCSAG1A model mounted and how should it be mounted?

The DS200FCSAG1A should be mounted within the Static Starter Power Conversion Cabinet and should be rotated ninety degrees when mounted.

Where can I find information on the DS200FCSAG1A board?

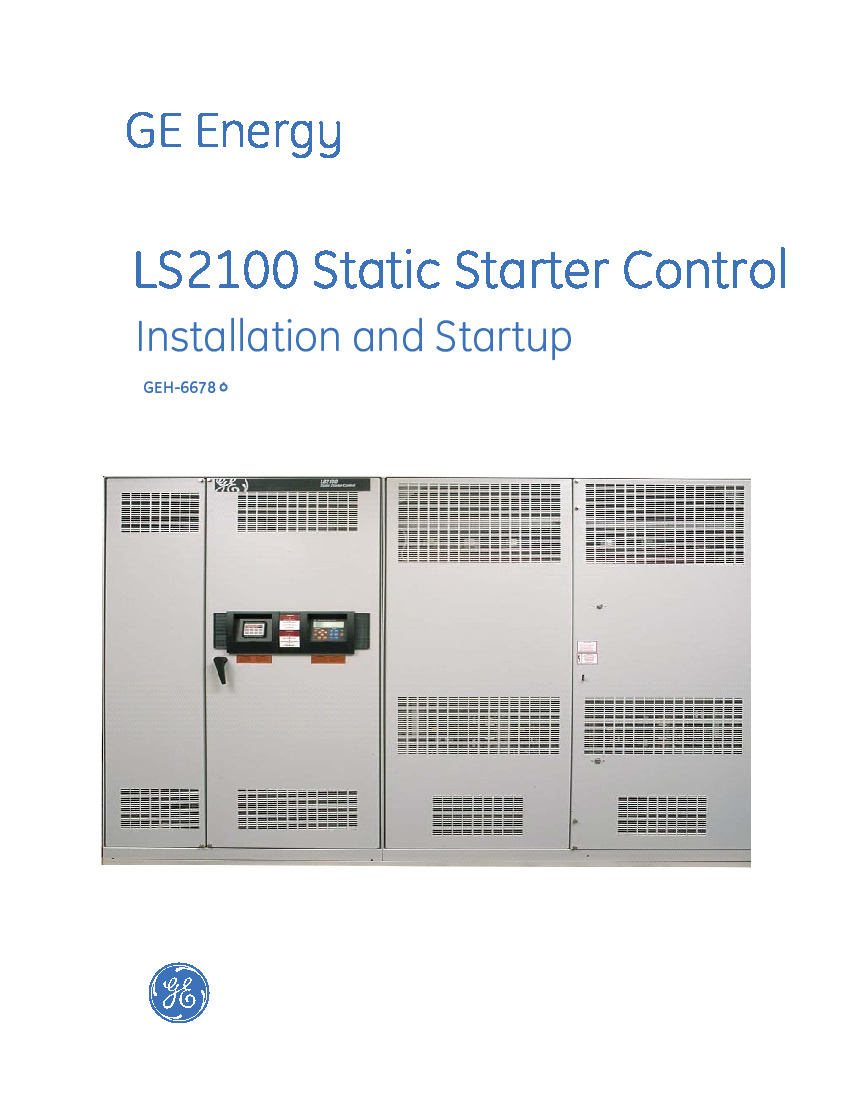

While information is extremely limited on the DS200FCSAG1A board information can be found within the GEH-6678G LS21000 Installation and Startup User's Guide.

Product Description

Current Sensing Feedback Board DS200FCSAG1A is part of the LS2100 Series produced by General Electric. This model is installed in the Static Starter Power Conversion Cabinet. When being operated this model is used in conjunction with a Control Power Supply (CPS). During the operation of both the CPS and FCSA, the CPS will produce several voltage levels, these being five, twelve, fifteen, and twenty-four volts, these voltages are produced specifically for the FCSA board and VME card rack.

The DS200FCSAG1A model can be used in a load bridge operation setting. When the model is in this setting voltages need to be verified by the LEMPS plug at the N15 (pin 3), ACOM (pin 2), and the P15 (pin 1). Once this has been done the LEMPS plug can be reconnected to the the FCSA. On the front of the board there are two connectors, the twelve-pin connector is the CSPL, while the three-pin connector is the LEMPS plug. All of the aforementioned connections are used to operate the load bridge current sensor power supply with the Static Starter Power Conversion Cabinet.

The DS200FCSAG1A model is abundantly available on the model and is available at AX Control Inc. If you have any questions regarding the pricing on this model please contact us by phone or email during normal business hours Monday through Friday.

Reviews For DS200FCSAG1A
Internal Review

While the DS200FCSAG1A model is widely available on the market product information is extremely limited. If any questions arise you can contact us by phone or email and we can do our best to help answer any lingering inquiries. - AX Control Technicnian
