DS200FCGDH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product

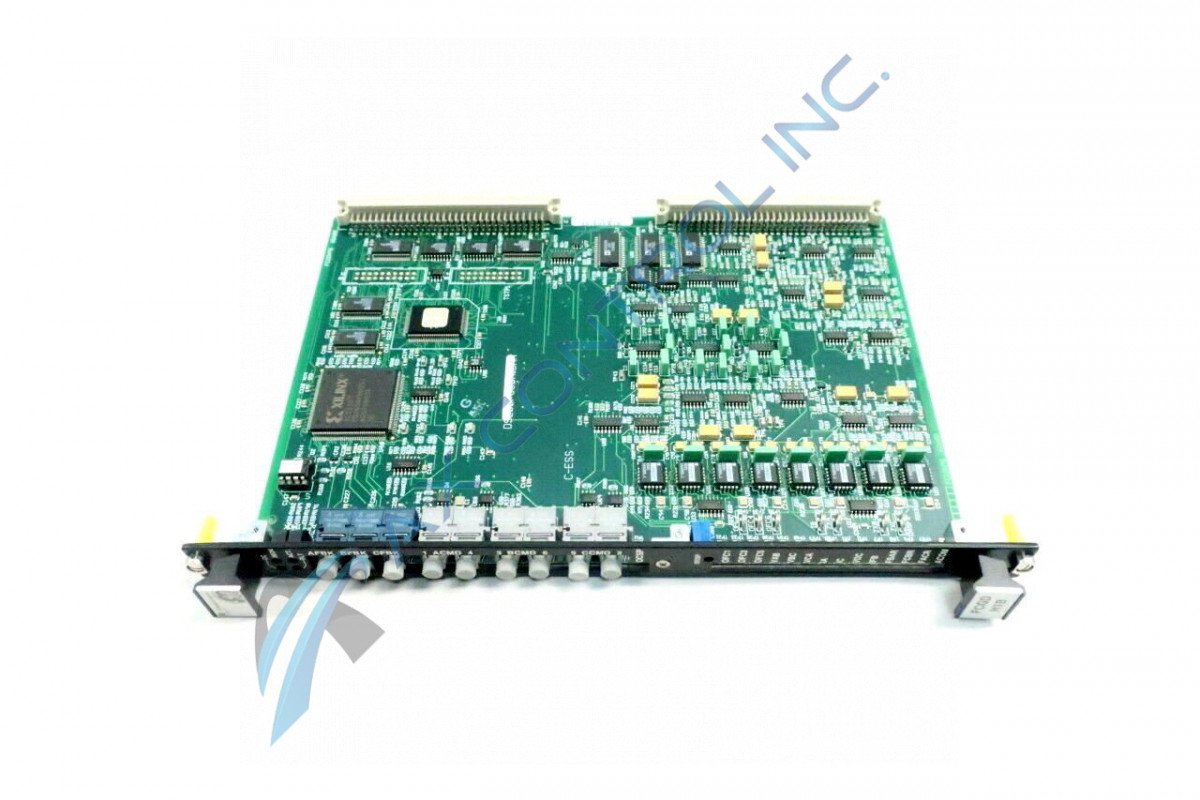

The General Electric Gate Distribution and Status Board DS200FCGDH1A is used with a six-phase-pulse-controlled non-reversing bridge that receives SCR firings. This model also distributes and decodes cell gating signals for each bridge and receives multiplexed cell status signals.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCGDH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCGDH1A
  • SKU: DS200FCGDH1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCGDH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The General Electric Gate Distribution and Status Board DS200FCGDH1A is used with a six-phase-pulse-controlled non-reversing bridge that receives SCR firings. This model also distributes and decodes cell gating signals for each bridge and receives multiplexed cell status signals.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FCGDH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FCGDH1A
  • SKU: DS200FCGDH1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200FCGDH1A Technical Specifications

Board Description Gate Distribution and Status Board
Bridge Structure SCR Dual-Stack/Heatsink
Functional Acronym/Abbreviation FCGD
Number of Fiber-Optic Connectors Four, Three Blue and One Grey
Number of LEDs Two, OC FLT and IMOK (T) Active
Parts Manual GEI-100221
Size 6U VME (9.23 by 6.3 inches)

Frequently Asked Questions about DS200FCGDH1A

What does the DS200FCGDH1A board do?

The DS200FCGDH1A receives SCR firing information from the DSPC board and returns diagnostic and feedback information via the VME backplane. Not only does the DS200FCGDH1A board perform the aforementioned it receives and scales bridge feedback signals and will then send the voltages, current status information, and frequency back to the DSPC board.

One of the functions within the DS200FCGDH1A board is to receive voltage feedback from the Voltage Feedback Scaling (NATO) board, what do these signals include?

The signals included from the NATO board are five attenuated analog voltage signals which correspond to the plus/minus DC, as well as three AC voltages which are all referenced to ground through a local resistor.

What is the system heartbeat?

The system heartbeat is a periodic signal that is generated by an electric component to announce the component imbedded within the DS200FCGDH1A is still functional.

What is the compatibility of the DS200FCGDH1A board?

The FCGD board is compatible with the VME (A24/D16) bus specification both electrically and physically. The typical environment surrounding the DS200FCGDH1A board is four FCGD boards and a VME bus host CPU.

Product Description

Model number DS200FCGDH1A is a Gate Distribution and Status Model is an interface board that is a six-pulse-phase-controlled non-reversing bridge model. The primary function of the interface board is to receive silicon-controlled rectifiers (SCR) firing information from the DS200DSPCH1A model, which is the VME processor, that will return diagnostic and feedback information through the VME backplane. This model has six layers as well as SMDs (surface-mounted devices).

One of the functions of the DS200FCGDH1A is a system heartbeat. The heartbeat is a signal that is sent intermittently, this heartbeat signal is generated by electronic components, the purpose of which is to ensure that the component is still functioning. Please note that when operating this model if the heartbeat exceeds a number greater than eight milliseconds the front IMOK LED and gating will both turnoff, if this occurs then a hard reset will need to occur to exit this condition.

The LS2100 Series model number, DS200FCGDH1A, has three hardware overcurrent signals which will combine to form an IFB signal. If the IFB signal receives a signal that is greater than or equal to that of twenty-six milliseconds the overcurrent signal that occurs on the FCGD will need to be cleared by a hardware reset.

Reviews For DS200FCGDH1A
Internal Review

The DS200FCGDH1A board has ground fault protection signals that are implemented within the software of the board. This model can also be used to generate firing commands. - AX Control Technician

Repair Services For DS200FCGDH1A

Type Lead Time Price Action
Repair Service 1-2 weeks $945

Our highly skilled technicians can repair your DS200FCGDH1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
