DS200DSPCH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product

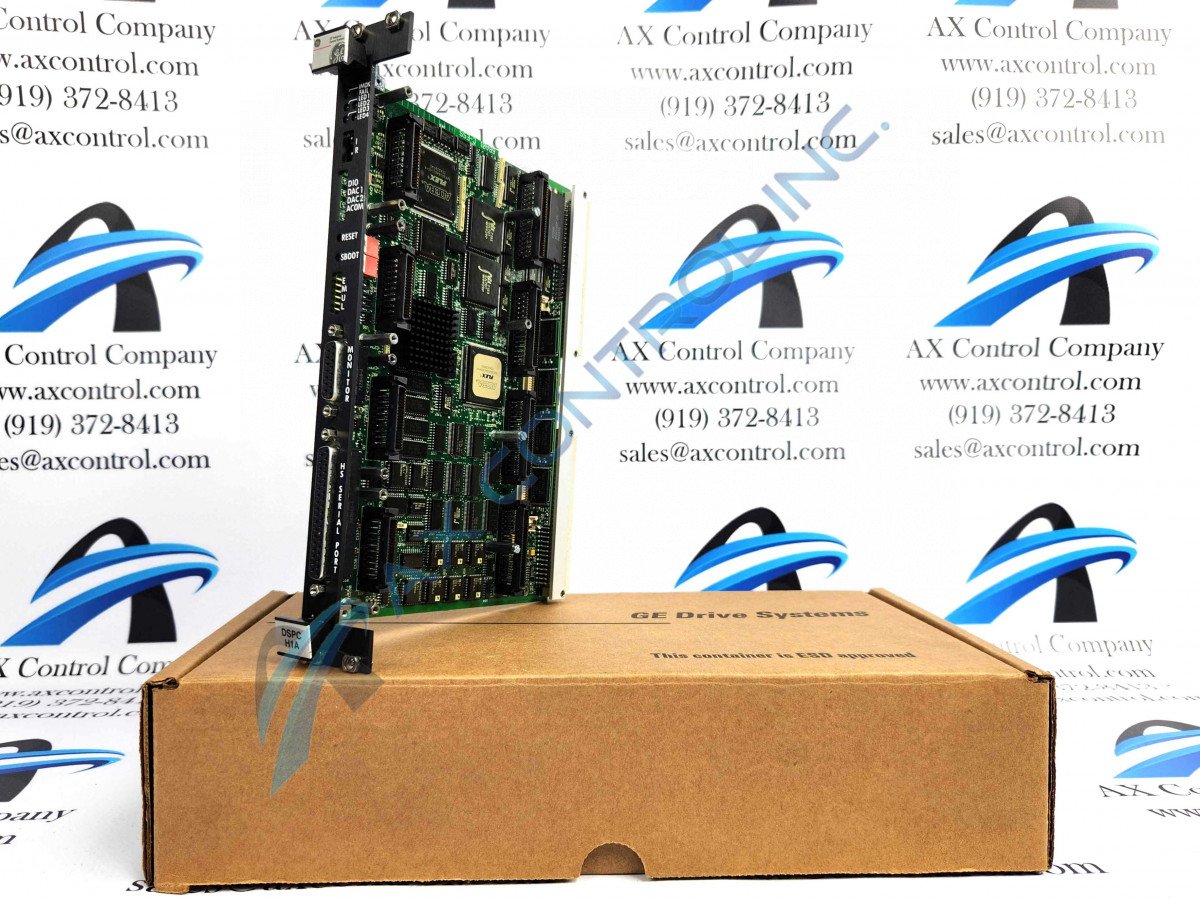

The Digital Signal Processor Control Board DS200DSPCH1A is a high-performance processor board that can provide computational communications and capacities. This device can be used as a master or slave device but can provide its own memory and local high-speed I/O direct interfaces.
  • Board Part Number: DS200DSPCH1A
  • Product Weight: 3 lbs
  • Warranty: 3 Year Warranty
  • Revisions: DS200DSPCH1ACA, DS200DSPCH1ADA, DS200DSPCH1AEA

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200DSPCH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DSPCH1A
  • SKU: DS200DSPCH1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200DSPCH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The Digital Signal Processor Control Board DS200DSPCH1A is a high-performance processor board that can provide computational communications and capacities. This device can be used as a master or slave device but can provide its own memory and local high-speed I/O direct interfaces.
  • Board Part Number: DS200DSPCH1A
  • Product Weight: 3 lbs
  • Warranty: 3 Year Warranty
  • Revisions: DS200DSPCH1ACA, DS200DSPCH1ADA, DS200DSPCH1AEA

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200DSPCH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DSPCH1A
  • SKU: DS200DSPCH1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: LS2100 & LS2100e Static Starter Control

DS200DSPCH1A Technical Specifications

Backwards Compatible No
Board Description Digital Signal Processor Control Board
Board Level Base
Functional Acronym/Abbreviation DSPC
Manufacturer General Electric Company USA, GE Industrial Systems
Number of LEDs Six
Number of Test Points 4, TP1-TP4
Quantity of Switches Two, Pushbutton

Frequently Asked Questions about DS200DSPCH1A

The DS200DSPCH1A board has a VME Bus Interface. What is the purpose of the VME Bus and how does it function?

The VME Bus Interface is used as an optional connector for compatibility with the GE Fanuc 90/70 Programmable Logic Controllers (PLCs). The board can function as either a VME Bus master or slave. When operating as a VME Bus slave it will do so with an 8K dual-ported SRAM interface. All VME Bus accesses will be controlled in a configurable static random access memory (SRAM) based field programmable array (FGPA) device.

If I need to reset the DS200DSPCH1A board how can I do so?

There are four ways you can reset the DS200DSPCH1A board, you can do a VME sysreset, a power-up reset, use the reset pushbutton, or the VME master bus can write to the VME control register.

Can the DS200DSPCH1A board handle daughterboard connections?

Yes the DSPC board has provisions for mounting up to four daughterboards.

How many switches are on the DSPC board?

There are two switches. The SW1 is a hard reset switch for the DSP and the SW2 switch is a serial boot switch.

How many LEDs does the DS200DSPCH1A board have and what are their purposes?

There are six LEDs on the board, two of them are used to indicate the status of the DSPC board, the designation regarding the status are IMOK and FAIL. The IMOK will be green and indicating that the board is functioning properly; the FAIL LED will be red and indicates that the VME Bus has reported that the board has failed. The remaining four LEDs are software-defined but are done so per individual project, they will be Amber and the designations are LED1, LED2, LED3, and LED4.

Product Description

The Digital Signal Processor Control Board number DS200DSPCH1A is primarily used to provide communications bandwidth and computational capacity, these features are used for directly controlling high-powered converter applications. The following applications are directly controlled applications, wind turbines, dynamometers, multi-bridge power converters,  uninterruptible power sources (UPS), and active filters. This model provides its own memory program as well as expandable high-speed input/output for direct interfaces without using the datapath from the VME.

The DS200DSPCH1A board has a serial communication feature that provides asynchronous communication through a duplicate channel UART (universal asynchronous receiver/transmitter).  Note that the DSPC model has two pushbutton switches on the front faceplate, the SW1 switch is used for a hard reset of the DSPC model, while the SW2 is used as a serial boot switch for the DSPC. When needing to use the reset pushbutton switches a pen/pencil will need to be used to press the switch.

All information on the DS200DSPCH1A model can be found in not only the GEH-6373 series manual but the GEI-100220 manual as well which includes all information on the LEDs, test points, connectors, and switches.

Reviews For DS200DSPCH1A
Internal Review

The DS200DSPCH1A model has a VME bus interface that can allow for a GE Fanuc 90/70 PLC (Programmable Logic Controller) to be connected. This model also has provisions to mount up to four daughterboards. - AX Control Tech Team

Repair Services For DS200DSPCH1A

Type Lead Time Price Action
Repair Service 1-2 weeks $1435

Our highly skilled technicians can repair your DS200DSPCH1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
