193X704ABG01

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The 193X704ABG01 is a GE printed circuit board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 193X704ABG01 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The 193X704ABG01 is a Sensitive Relay Card component from GE.  This printed circuit board is manufactured for the SCR Drive system and for the Speed Variator Drive system.  The SCR drive includes DC motors from 30 to 250 horsepower, shunt wound, 240 VDC or 500 VDC armature. The Speed Variator Drive uses DC motors from 5 to 75 horsepower, shunt wound separately excited field or permanent magnet,  180 or 240 VDC armature. Both systems use a power and control unit. Control unit requirements may be found through GE publications.

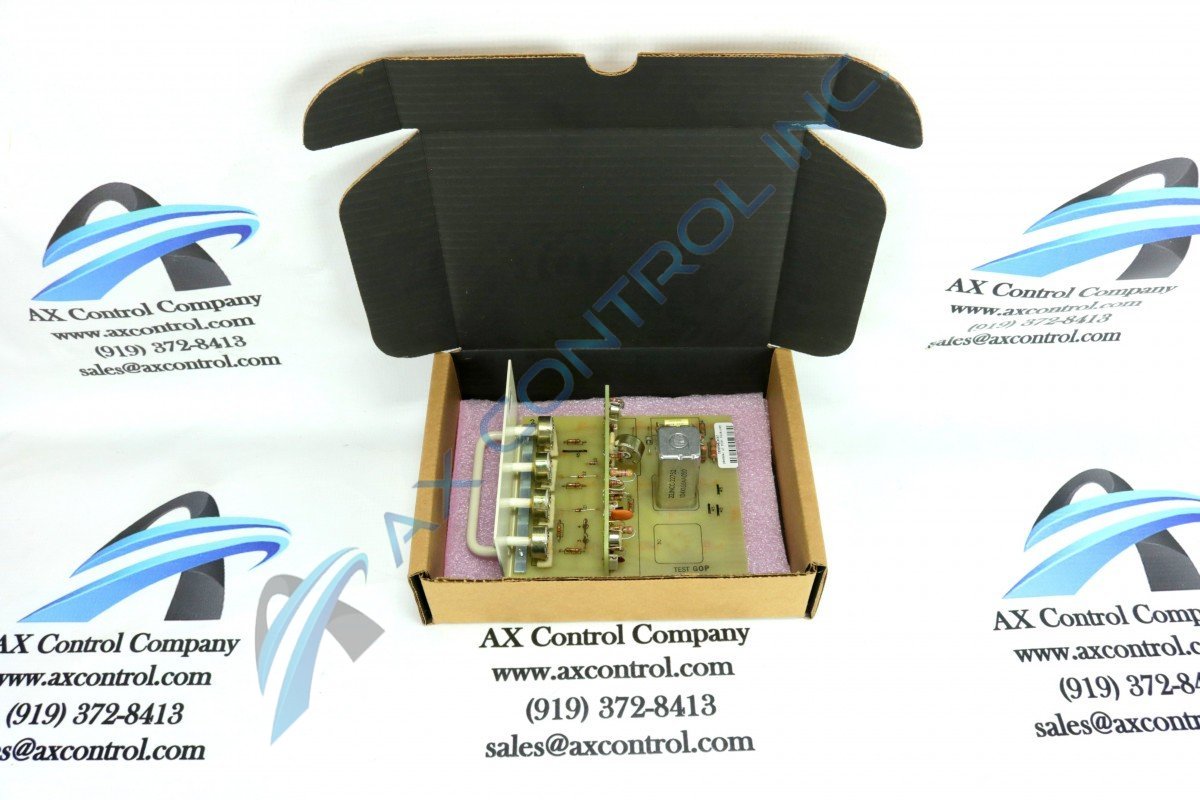

The 193X704ABG01 is designed with a wide front silver and blue front panel with a handle.  This panel is attached to the main PCB using two screws and reinforced with a metal bar placed on the top edge of the board.  The front panel includes the board number, the board name, and the GE logo. It has four rotating switches that are labeled (left to right) gain, P628, P627, and Bias.  Each of these switches connects to a rotary potentiometer that is wired into the PCB.

The 193X704ABG01 is populated with metal film and carbon composite resistors. Some of these components are numbered. Resistors may be mounted to the board vertically or horizontally.  It has one capacitor located in the rear corner of the board. It also has one relay, which is marked 22JNCC-22752 104X168AA050.  The relay has a printed relay diagram on one surface. The 193X704ABG01 includes one sub-board which has been mounted to the surface of the primary board vertically. This is a universal amplifier board (193X701CA,) which is populated with transistors, capacitors, resistors, and other components.

Repair Services For 193X704ABG01

Type Lead Time Price Action
Repair Service 1-2 weeks $483

Our highly skilled technicians can repair your 193X704ABG01. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
