Product Description

The 193X565ABG01 board from General Electric is an Auxiliary Interconnect board designed for use in the company’s drive systems,  like the Speed Variator or Valutrol drive systems.  These systems were designed to offer basic control of industrial motors with GE value and assembly.

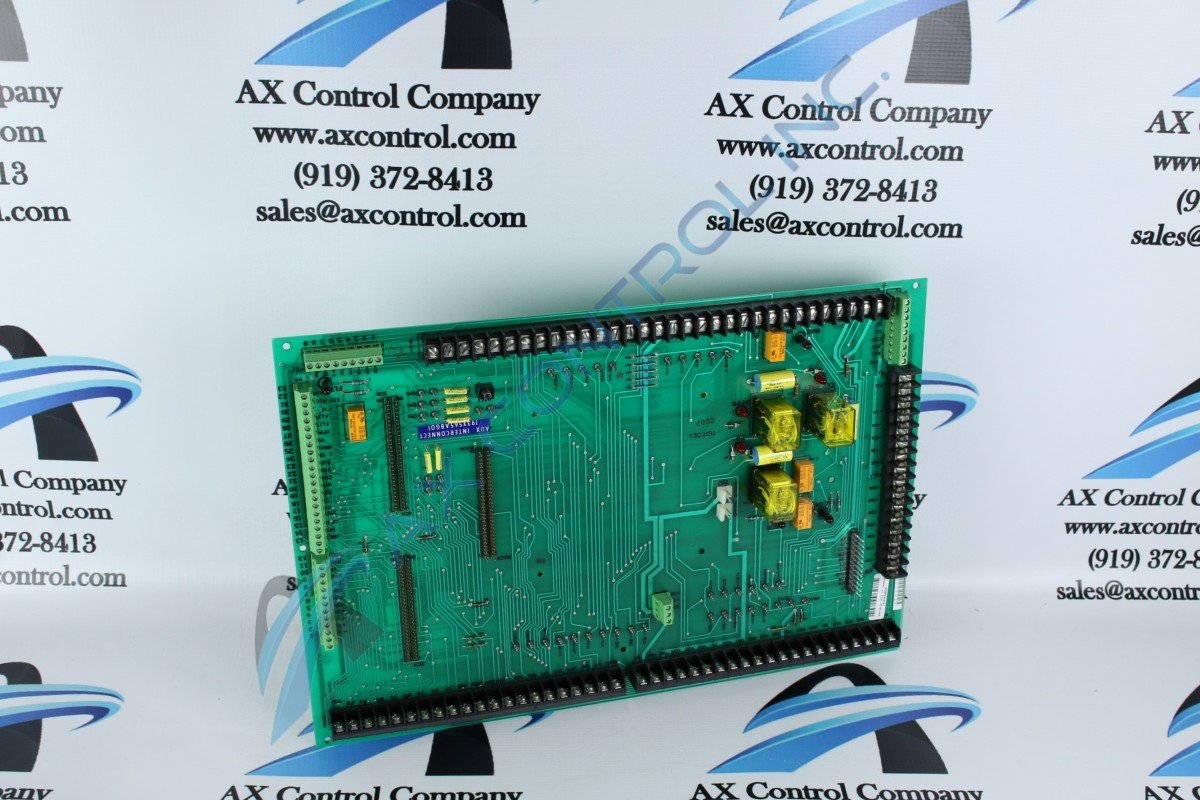

The 193X565ABG01 is a rectangular circuit board with only a few board components on its surface.  The board has been factory drilled at each corner to facilitate easy mounting options using screws or standoffs.  It is marked with its board number, with its use, and with the GE logo.  It may also carry additional codes.

The 193X565ABG01  has five terminal strips of various sizes located primarily along the board edges.  The smallest of these is located near the center top of the board. Additionally, there are four additional terminal strips of a different type also located on the board, along with vertical pin connectors that are located within the body of the board.

Other board components include relays, transistors, capacitors, and a number of LED indicators that are located near the relays and toward the bottom right corner of the board. Most components are marked with some sort of reference designation and/or an original part number.

Additional information regarding this board, including any information you may need to guide you through proper maintenance or installation, can be sourced through original GE manuals and user guides.

AX Control is located in central North Carolina.  If you are a local customer, we are happy for you to arrange for pickup at our facility for faster turnaround times.  Please call ahead with your purchase order and part list so we can have everything ready for you when you arrive.


Repair Services For 193X565ABG01

Type Lead Time Price Action
Repair Service 1-2 weeks $460

Our highly skilled technicians can repair your 193X565ABG01. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
