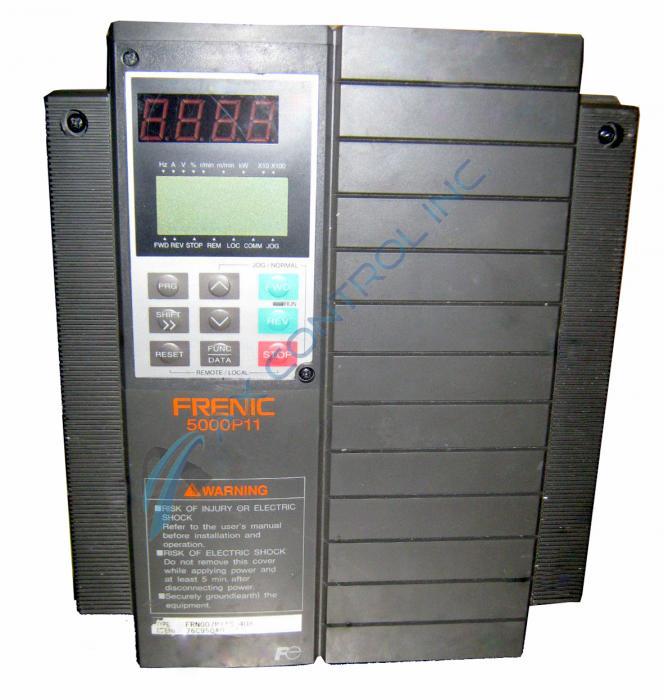

FRN007P11S-4UX is a 7 horsepower inversion drive from the Fuji Electric Frenic 5000 P11 series. The P11 series features inverters that operate pumps and fans in a production line or in factory settings. Pumps for an array of uses, water, sludge, feeds, etc, benefit from motors like this running the device. Individual loads determine the output produced by the inverter. A system integrated dynamic torque vector control intelligently determines the output required per load.
Prolonging device longevity requires monitoring voltage levels for the inverter. Voltage outputs produced by FRN007P11S-4UX can range from 380V to 460V with a range of frequencies as low as 0.1Hz to as high as 400Hz. The maximum sustained voltage this drive can produce is 480V. Input ranges for this inverter can measure between 380V to 480V with a frequency of 50/60Hz. Remote operation is available by removing the detachable keypad.
The lifespan of the device is dependent upon following all manufacturer-provided installation and storage parameters. FRN007P11S-4UX is housed in a NEMA 1 enclosure, dictating an indoor environment as the only suitable installation site. These climate-controlled factories and production lines should maintain ambient temperatures between -10℃ and 50℃ (14℉ and 122℉).
To see a complete installation guide, refer to the P11 series manual as well as the device datasheet. The original technical support provider for this device and its series was Fuji Electric.
Our experienced and knowledgeable team at AX Control is available to assist with all of your automation needs. Please contact a member of our sales team to receive prices on all parts and repairs.
