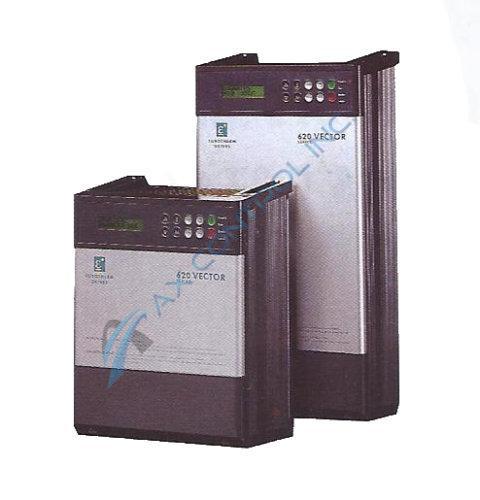

The 620STD-0075-400-0010-UK-ENW-0000-000-B0-000-000 is a standard AC drive developed by Eurotherm. Featured in the 620 Vector series, this drive interfaces with AC induction drives using logic controllers as well as analog setpoints. High performance speed controls are integrated into this 7.5kW drive. Inputted voltages to the drive can rate between 380 and 460 VDC. Compliant with UK standards, the unit features a 50 Hz set frequency.
I/O capabilities of 620STD-0075-400-0010-UK-ENW-0000-000-B0-000-000 are numerous, as both analog and 24 VDC digital signals are accepted. To the drive, nine digital inputs (with four being programmable) and five analog inputs (with four being programmable) are provided. Outputs include three programmable digital and two programmable analog. Braking options are built into the drive, as it includes a factory installed brake power switch. A man machine interface (MMI) system provides users with easy access to a number of system parameters, diagnostics, and alarms. User interface is further expanded with the additional 32 character alphanumeric keypad.
Detailed installation parameters are provided by the manufacturer. A IP20 rated enclosure protects 620STD-0075-400-0010-UK-ENW-0000-000-B0-000-000 from floating debris. Operating facilities housing this drive should maintain ambient temperatures no lower than 0℃ (32℉) and no higher than 50℃ (122℉). Wiring and installation instructions are available in the series manual as well as the device datasheet. Technical support for this drive was originally provided by Eurotherm.
