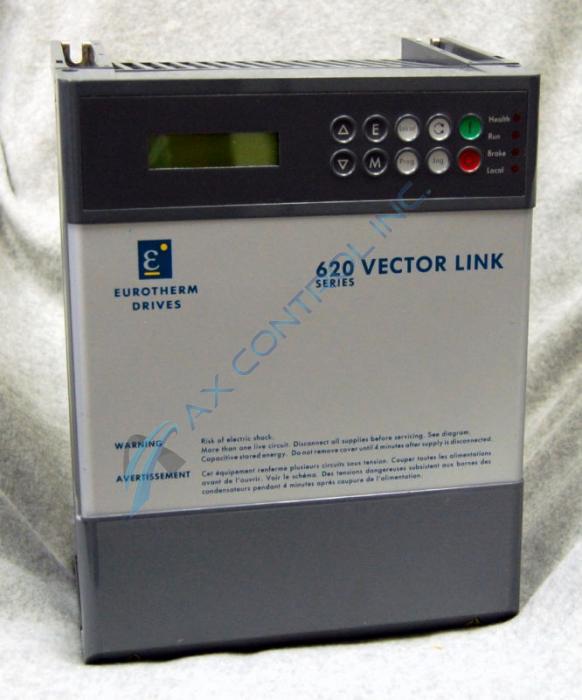

Eurotherm 620L00224000010USENW0000000B0000000 Vector Drive

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 620L00224000010USENW0000000B0000000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 620L00224000010USENW0000000B0000000
  • SKU: 620L00224000010USENW0000000B0000000ED
  • Manufacturer: Eurotherm Drives
  • Series: 620 Vector Link

About the 620L00224000010USENW0000000B0000000

The Eurotherm 620L00224000010USENW0000000B0000000 enables speed control of induction motors with an encoder. It also provides for a co-processor and ports for a fibre optic communications network.

DIP switches are are easily accessible and provide a quick method to configure some of the functions of the Eurotherm 620L00224000010USENW0000000B0000000. One switch configures the device to use a 2-wire or 4-wire serial communications. You can choose to disconnect the line termination if you have devices connected in a series for communication. The last device should be set to the Off position and all other should be set to the On position.

The next DIP switches are used to configure the fibre optic network behavior. It sets the transmission fiber output power as low, medium, or high. One switch enables you to test the fibre optic network by turning the transmitter on permanently. You can check the received power at the far end of the transmission line with a light meter.

You can also configure the threshold sensitivity for the feedback encoder. One switch controls input A, one controls input B, and one controls input Z. You can configure the threshold sensitivity for the reference encoder. Input A, input B, and input Z are configured with switches.

Another means of controlling the configuration of the Eurotherm 620L00224000010USENW0000000B0000000 is the control panel. Keys are available for you to set the parameters of the application program. However, best practice is to use a laptop connected to the device through a serial connection. Load an editing tool on the laptop to edit the parameters.




Repair Services For 620L00224000010USENW0000000B0000000

Type Lead Time Price Action
Repair Service 1-2 weeks $2390

Our highly skilled technicians can repair your 620L00224000010USENW0000000B0000000. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
