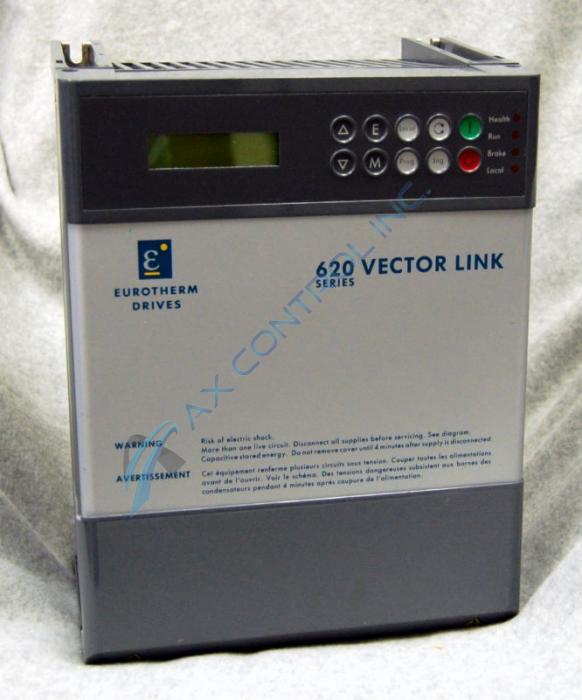

The Eurotherm 620L-0055-400-0010-US-ENW-0000-000-B0-000-000 enables speed control of induction motors with an encoder. It also provides for a co-processor and ports for a fibre optic communications network.
Informative labels are affixed to the shipping carton and to the Eurotherm 620L-0055-400-0010-US-ENW-0000-000-B0-000-000 to supply you with the information you need to identify, install, and maintain the device.
The shipping carton has a label that identifies the model number, optional features that are included with the shipment, serial numbers, and catalog numbers. Use this information to verify that what you received matches your expectations. Once you have confirmed that the device matches what you ordered and opened the box and unpacked the device, you can use other labels to proceed with the installation.
Two nameplate labels are on the exterior of the 620L-0055-400-0010-US-ENW-0000-000-B0-000-000. One on the front and one on the interior of the back plate. They identify the device by model number and other identifying information. They can be useful for servicers and operators to identify the device before maintenance and operation.
A label is affixed to the fuse compartment that provides information about the proper fuses to install. The fuse compartment is accessed by loosening two screws at the top of the drive. You can refer to the label before you replace fuses. Verify that the fuses you install meet the requirements.
Another label is affixed near the fuse label and it contain torque tightening information. To avoid damaging the terminals and cables, you can use a torque wrench to know how tight to make the terminals.
