XPC06VT-HC-2P3

Name: XPC06VT-HC-2P3
Brand: CTC Parker Automation
SKU: CPA-58938
Availability: LimitedAvailability
Rating: 4 (1 reviews)

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The XPC06VT-HC-2P3 is an XP Series PowerStation

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a XPC06VT-HC-2P3 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: XPC06VT-HC-2P3
SKU: CPA-58938

Manufacturer: CTC Parker Automation
Series: XP Series PowerStations

Description
Repairs
Warranty

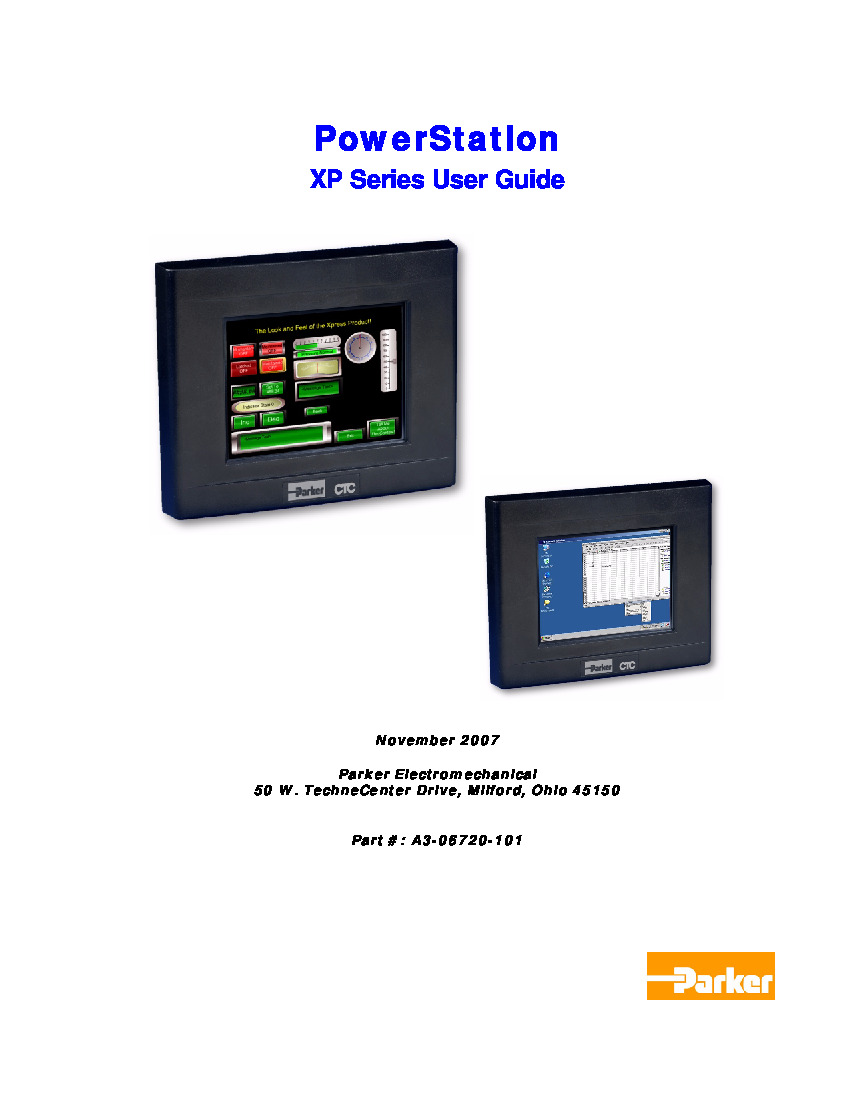

Manuals

XPC06VT-HC-2P3 Technical Specifications

Part Number	XPC06VT-HC-2P3
Series	XP Series PowerStations
Manufacturer	Parker CTC
Country of Manufacturer	United States
Weight	2.56 lbs
Environmental Rating	NEMA 4/4X
Operating System	Windows CE 5.0
DRAM	512MB
Agency Approval	CE, UL/CUL
Operating Temperature	32 to 122 Degrees Fahrenheit

About the XPC06VT-HC-2P3

The XPC06VT-HC-2P3 is a Parker CTC PowerStation from the XP Series. The XPC06VT-HC-2P3 has a 6" display, which makes it the smallest display out of the series. The XPC06VT-HC-2P3 has two manuals associated with the unit. These manuals were originally provided by Parker. The manuals give important information on the series and the units in the series. These manuals can be found under our "Manuals" tab.

XPC06VT-HC-2P3 Hardware Inclusions

The XPC06VT-HC-2P3 has a chemically resistant screen and surface. This allows an extra layer of protection for harsher environments. The XPC06VT-HC-2P3 also has a NEMA 4/4X rating when installed in an enclosure. This also provides protection to the unit.

The XPC06VT-HC-2P3 has a variety of connection ports, including:

USB ports
Serial ports
Ethernet port
Ground stud

More information on the connection ports can be found on page 3-2 of the user guide.

Frequently Asked Questions about XPC06VT-HC-2P3

How does the XPC06VT-HC-2P3 communicate with external devices?

The XPC06VT-HC-2P3 uses the serial ports to communicate with external devices. The COM1 port can support RS-232, and COM2 supports RS-232, RS-422, and RS-485.

Does the user guide help with troubleshooting?

Yes, the user guide offers help for things like replacing the fuse or installing units to an enclosure.

Reviews For XPC06VT-HC-2P3

Internal Review

(4.0)

The XPC06VT-HC-2P3 has a more standard BIOS utility with the Insyde XpressROM system. The XPC06VT-HC-2P3 also has the smallest display size and lowest resolution. These features are not as popular with users because other units have bigger displays and better resolutions. The XPC06VT-HC-2P3 does have a 75,000 hour backlight, which offers the longest bulb life. - AX Control Lead Technician
