Product Description

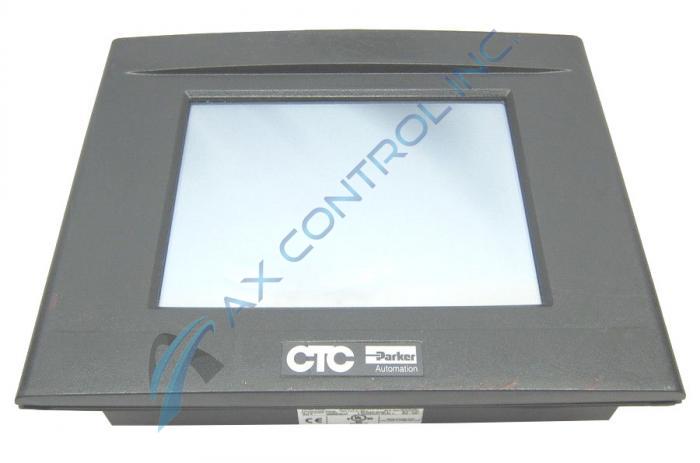

The CTC Parker Automation company made the Industrial PC with Touchscreen Monitor. Measuring the monitor diagonally, the screen is 10.4 inches and has a flat panel. The screen is color TFT and has a 640 x 480, VGA resolution. You can attach the monitor of the system to a wall or another system because of the mounting technology. There can be some distance between the monitor and the because of the remote channels. The device is compatible with a NEMA 4 enclosure which provides a significant amount of protecting from dust and debris. The computer has an operating temperature is between 0 and 50 degrees Celsius. The humidity around the system should stay between 5% and 95%.

There are a large array of ports on the Industrial PC with Touchscreen Monitor. The Ethernet port allows for the PC to connect to the internet. More ports on the system are the three external serial ports, video port, two PS/2 ports, and a parallel port. A CD-ROM or a floppy disk drive can be added to the system. There is also a internal and external compact flash slot.

The operating Card on the Industrial PC with Touchscreen Monitor is the PC/104. There is a standard 32 megabyte system memory. The BIOS on the system is accompanied by a 256K flash memory.

The searchable product number of the Industrial PC with Touch Screen Monitor is PS10-2T2-DD1-AD3. The product numbers of the instruction booklets are A3-06275-100, A3-06275-101, A3-06275-102, A3-06275-103 manuals. Call us now to get pricing quotes and information about our warranties.

Repair Services For PS10-2T2-DDA-AD3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PS10-2T2-DDA-AD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
