PM1-5E1-XD5

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
The PM1-5E1-XD5 PM1 Touchscreen PowerStation
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-5E1-XD5 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5E1-XD5
  • SKU: CPA-58685
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5E1-XD5 Technical Specifications

Model Number PM1-5E1-XD5
Series PowerStation RS Monitors
Manufacturer CTC Parker Automation
Voltage Rating 20-36VDC, 30-48 Watts Max
NEMA/Environmental Rating Type 4.0
Backlight Model BLR-7000
Bently Part Number 148653-01
Ports Serial RS232, USB-Type B, Analog, Digital DVI
Weight 17.2 lbs
Dimensions 13.3” x 16.8” x 4.4”

About the PM1-5E1-XD5

The PM1-5E1-XD5 is an HMI PowerStation PM1 Monitor that was originally manufactured by Parker CTC. The HMI PowerStation RS Monitor series has a variety of capabilities, including the connection compatibility with the RS, RC, and RX PowerStation. Parker CTC has provided original manuals online that are designed for the PM1 Series. This manual can be found under the manuals tab on our website.

PM1-5E1-XD5 Hardware Inclusions

The PM1-5E1-XD5 is a touchscreen monitor and has resistive features to help minimize damage to the display or surface.The PM1-5E1-XD5 should still be kept indoors and in a NEMA 4 environmental enclosure. The PM1-5E1-XD5 has multiple features on the side of the monitor, including:

  • Power input port
  • Touchscreen port
  • Analog video input port

The PM1-5E1-XD5 can be operated in the range of 32-122 Degrees Fahrenheit. Storage temperatures range from -13 to 185 Degrees Fahrenheit. More specifications are available in the original user guides.

Frequently Asked Questions about PM1-5E1-XD5

What is the input voltage of the PM1-5E1-XD5?

The input voltage is 24VDC @ 2A max.

Can the monitor accept AC power?

No, the monitor only accepts DC input. AC power can be accepted if the monitor has an AC adapter.

Reviews For PM1-5E1-XD5

Internal Review
(5.0)

The PM1-5E1-XD5 is an HMI PowerStation PM1 RS Monitor that has touchscreen capabilities. The PM1-5E1-XD5 can be connected to a non-display PowerStation or another computer that runs the systems that the monitor is compatible with. This allows for extended capabilities that a non-display PowerStation wouldn't have without the PM1-5E1-XD5. - AX Control Lead Technician

Repair Services For PM1-5E1-XD5

Type Lead Time Price Action
Repair Service 1-2 weeks $2635

Our highly skilled technicians can repair your PM1-5E1-XD5. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

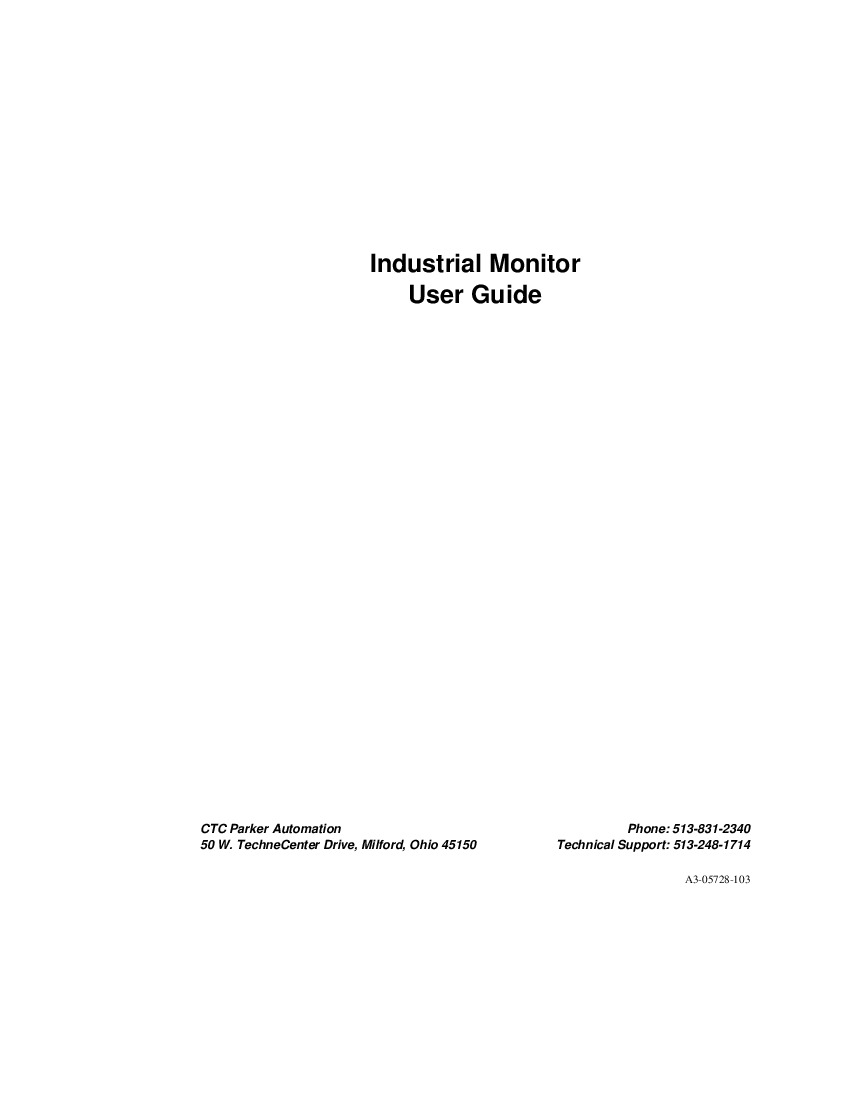

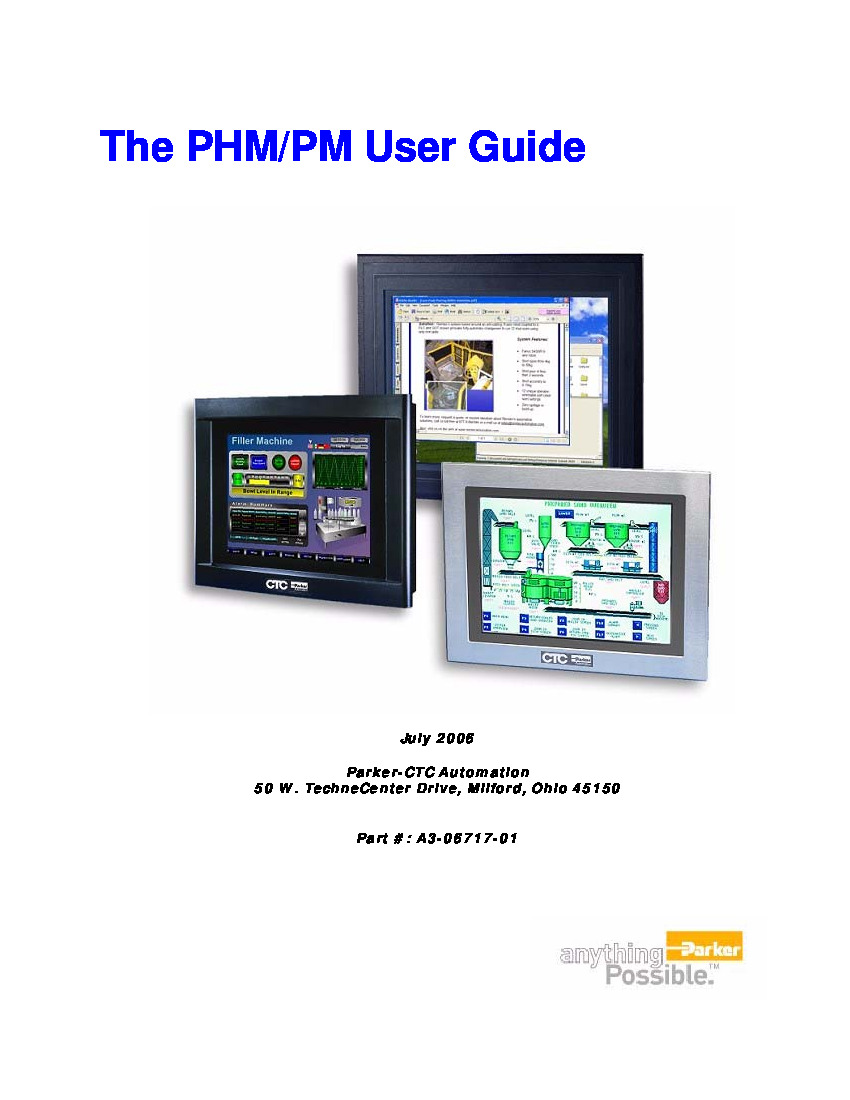

PM1-5E1-XD5 Manuals, White Papers, Data Sheets, and Troubleshooting
