PM1-5E1-XD3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The PM1-5E1-XD3 is an HMI PowerStation PM1 RS Monitor.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-5E1-XD3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5E1-XD3
  • SKU: CPA-58675
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5E1-XD3 Technical Specifications

Model Number PM1-5E1-XD3
Product Type HMI Monitor
Product Family PowerStation RS PH Monitors
Manufacturer CTC Parker
Input Voltage 24VDC
Environmental Rating Type 4
Repairable Yes, contact AX Control for pricing
Certifications UL, CE, RoHS
Backlight Model # BLR-7000

About the PM1-5E1-XD3

The PM1-5E1-XD3 is a PowerStation PM1 RS Monitor originally manufactured by Parker CTC. The RS Monitor series comes with original online manual materials that CTC Parker has provided users with. These manuals give detailed overviews of the series as a whole, with instructions on installation and maintenance.

PM1-5E1-XD3 Hardware Inclusions

The PM1-5E1-XD3 can be mounted in an enclosure or onto an adjustable arm. Guidelines for these installation processes can be found in the original manuals. The PM1-5E1-XD3 can also be connected to a PowerStation RS PC or other computers that have compatible systems. The PM1-5E1-XD3 and other PM1 Monitors have three connectors:

  • Power Input port
  • Touchscreen port
  • Analog Video Input port

The PM1-5E1-XD3 can resist a variety of chemicals, including Ethanol and Acetone. The surfaces of all RS Monitors are also resistant to some chemicals, like gasoline and motor oil. Even with the resistive qualities that the PM1-5E1-XD3 has, the monitor should still be kept from harmful conditions.

Frequently Asked Questions about PM1-5E1-XD3

How can unwanted electrical interference be minimized?

The PM1-5E1-XD3 should be installed away from areas that produce high volumes of electrical noise. If the PM1 monitor has to be installed where there is noise, the input power should be isolated to the unit and communication cables used in the unit should be separated from power lines.

What temperatures can the PM1 Monitors be operated at?

The PM1 Monitors can operate from 32-122 Degrees Fahrenheit or 0-50 Degrees Celsius.

Reviews For PM1-5E1-XD3

Internal Review
(5.0)

The PM1-5E1-XD3 Monitor gives users a range of capabilities when connected with a non-display PowerStation or other compatible computers. PowerStation PM1s are designed for NEMA 4 environments, and the monitor itself has a variety of resistive features when it comes to chemicals. More information on PM1 systems can be found in the original manuals provided by Parker CTC, which can be found under the manual tab. - AX Control Lead Technician

Repair Services For PM1-5E1-XD3

Type Lead Time Price Action
Repair Service 1-2 weeks $2465

Our highly skilled technicians can repair your PM1-5E1-XD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

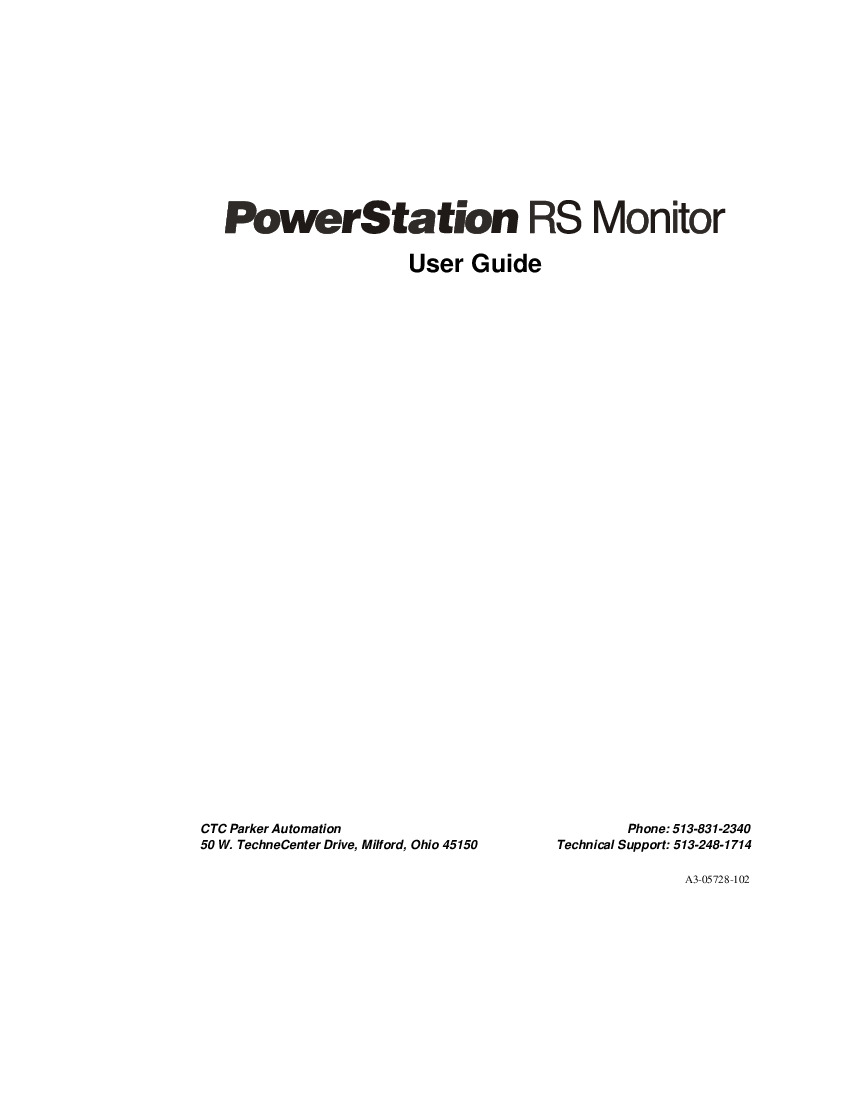

PM1-5E1-XD3 Manuals, White Papers, Data Sheets, and Troubleshooting
