PM1-5C1-XD3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
The PM1-5C1-XD3 is a PowerStation RS Monitor

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-5C1-XD3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5C1-XD3
  • SKU: CPA-58901
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5C1-XD3 Technical Specifications

Model Number PM1-5C1-XD3
Manufacturer Parker CTC
Series PowerStation RS Monitors
Environmental Rating NEMA 4
Temperature 0-50 degrees Celsius
Country of Manufacturer United States
Weight 17.2 lbs
Dimensions 13.3” x 16.8” x 4.4”
Manual Number A3-05728-103
Screen size 15.1"

About the PM1-5C1-XD3

The PM1-5C1-XD3 PowerStation RS Monitor was originally manufactured by Parker CTC. The RS Monitors are compatible with the RS, RX, and RC PowerStation non-displays and specific Windows systems. Parker has provided manuals for the PM1-5C1-XD3 and other monitors. The manual for the PM1-5C1-XD3 can be found under the "manuals" tab on our website. The manual gives an overview of the monitor systems and best practices for successful use.


PM1-5C1-XD3 Hardware Inclusions

The PM1-5C1-XD3 has three connection ports that are standard for the RS Monitor series. These ports are:

  • +24 VDC Power Input port
  • Touchscreen port
  • Analog Video Input port

The PM1-5C1-XD3 also has the ability to be connected to an AC power adapter. This is an external connection that allows for AC power to be accepted instead of DC power. This design offers users flexibility when picking power inputs. The display of the RS monitors allows users to change their settings or see the current settings. Users are able to adjust features, like brightness and resolution.


Frequently Asked Questions about PM1-5C1-XD3

What is the on-screen display for?

The OSD can help users to adjust video images to get the best quality. The display shows the options that users can set or keep standard.

What other computers are the RS Monitors compatible with?

The monitors are compatible with RS, RC, and RX PowerStations, as well as computers that run MS-DOS or Windows 98, NT 4.0, Embedded NT 4.0, 2000, and XP Pro operating systems.

Reviews For PM1-5C1-XD3

Internal Review
(5.0)

The PM1-5C1-XD3 is a PowerStation RS Monitor. The PM1-5C1-XD3 offers a flat screen display, which makes it easier for users to mount the monitor in an enclosure or on an adjustable arm. The flat screen display is an user and more compact option rather than a bulky unit. The RS monitors can be stored in temperatures as cold as -25 degrees Celsius, allowing users ease of mind in cool temperatures. - AX Control Lead Technician

Repair Services For PM1-5C1-XD3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-5C1-XD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

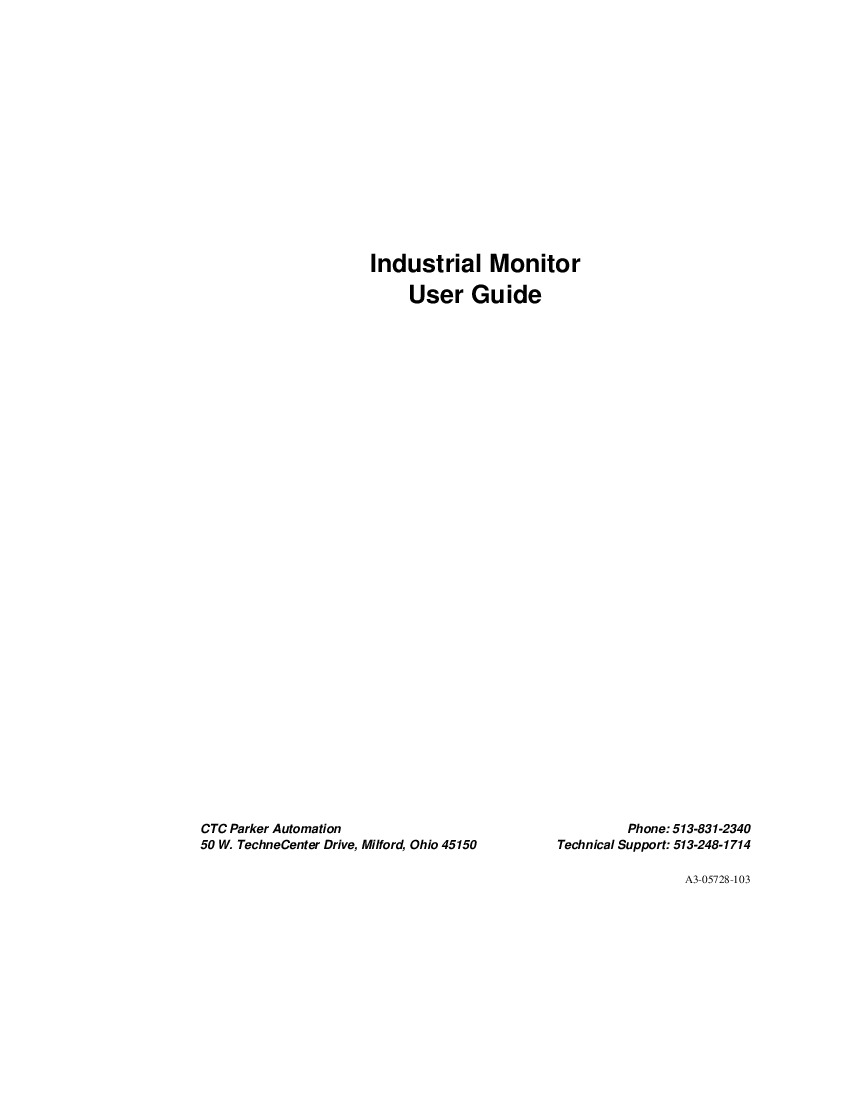

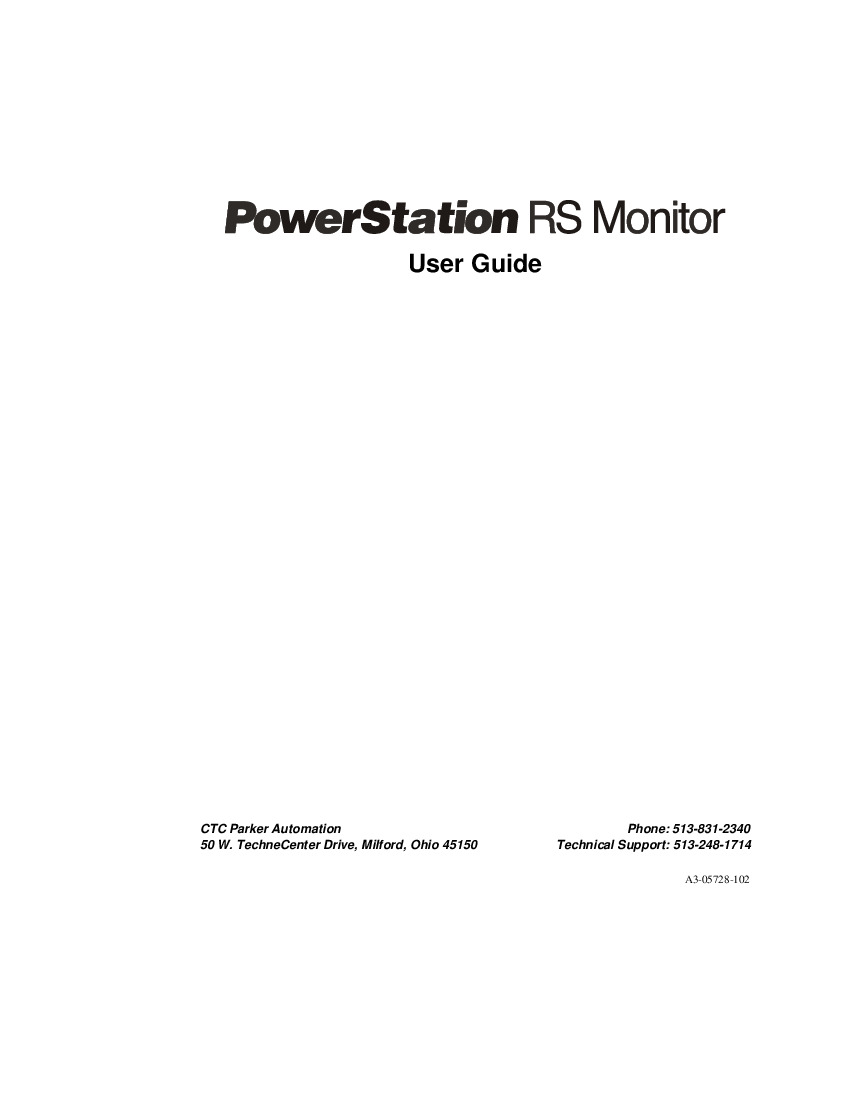

PM1-5C1-XD3 Manuals, White Papers, Data Sheets, and Troubleshooting
