PM1-5A1-XD3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The PM1-5A1-XD3 is an HMI PowerStation PM1 RS Monitor
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PM1-5A1-XD3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5A1-XD3
  • SKU: CPA-58884
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5A1-XD3 Technical Specifications

Model Number PM1-5A1-XD3
Manufacturer Parker CTC
Series PowerStation RS Monitors
Product Type HMI Monitor
Environmental Rating NEMA 4
Country of Manufacturer United States
Repairable Yes, contact AX Control for pricing
Touchscreen Kit # BZK-1505
Maximum Wattage 48W
Weight 17.2 lbs

About the PM1-5A1-XD3

The PM1-5A1-XD3 is a PowerStation RS Monitor manufactured by Parker CTC. There are online manual materials designed by Parker to help guide users through the installation and maintenance of the PowerStation series. The manual can be found under the page's manuals tab.

PM1-5A1-XD3 Hardware Inclusions

The PM1 Monitor series has a variety of features that are standard for all models. The PM1-5A1-XD3 has an optional external AC adapter that will allow the monitor to accept AC power instead of only DC power. The PM1-5A1-XD3 has a NEMA 4 rating and the screen is resistive to a variety of chemicals, such as:

  • Ethanol
  • Acetone
  • Ethyl Acetate

The PM1 Monitors are sensitive to electrical interference, which makes the location of installation extremely important. The PM1-5A1-XD3 should not be installed in humid or moist conditions, as in worst-case scenarios these conditions may present something of an electrocution risk.

Frequently Asked Questions about PM1-5A1-XD3

What is the function of the ground stud?

The ground stud helps to make sure the monitor is complying with emissions guidelines needed to operate properly.

How does the AC power adapter connect to the PM1-5A1-XD3?

The original manual gives a step-by-step guide to connecting the AC power adapter. There are mounting holes on the back of the PM1-5A1-XD3 to allow for connection.

Reviews For PM1-5A1-XD3

Internal Review
(5.0)

The PM1-5A1-XD3 has a 24 VDC input, as well as other connection ports, including an Analog 15 Pin SVGA. The PM1 Series have on-screen displays, which feature a variety of options like Auto Setup, Management and Language. Users are able to control these options and change settings as needed. - AX Control Lead Technician

Repair Services For PM1-5A1-XD3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-5A1-XD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

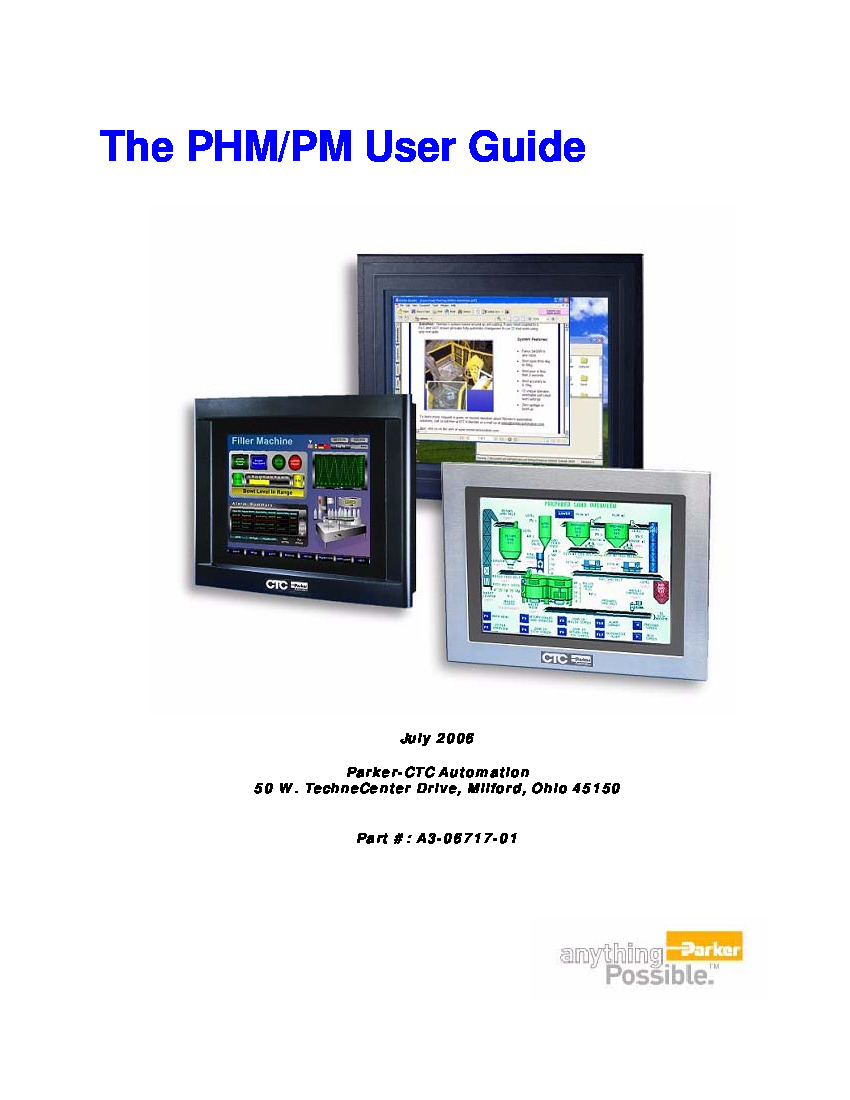

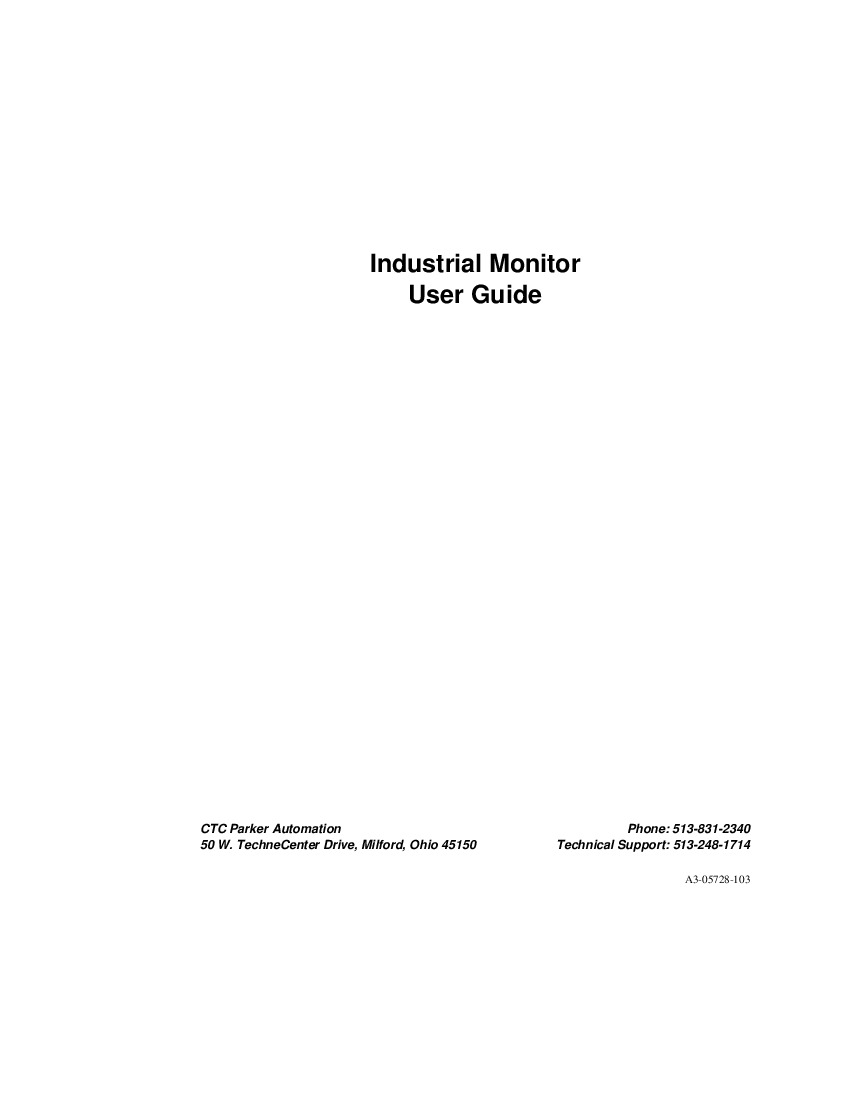

PM1-5A1-XD3 Manuals, White Papers, Data Sheets, and Troubleshooting
