PM1-5A1-XD1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
The PM1-5A1-XD1 is an HMI PowerStation RS Monitor
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-5A1-XD1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5A1-XD1
  • SKU: CPA-58898
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5A1-XD1 Technical Specifications

Model Number PM1-5A1-XD1
Manufacturer Parker CTC
Series PowerStation RS Monitors
Environmental Rating NEMA 4
Country of Manufacturer United States
Temperature 0-50 degrees Celsius
Weight 17.2 lbs
Dimensions 13.3” x 16.8” x 4.4”
Pixel Format XGA 1024 X 768

About the PM1-5A1-XD1

The PM1-5A1-XD1 is a PowerStation PM1 RS Monitor originally manufactured by Parker CTC. The monitor has the basic features that all RS monitors have. Parker has provided a variety of manual materials that can be found under the "manuals" tab on our website. This guide offers important information on the PM1-5A1-XD1 and the PowerStation series. There are detailed instructions on installation and maintenance of the monitor.

PM1-5A1-XD1 Hardware Inclusions

The PM1-5A1-XD1 has an input voltage rating of 20-36 VDC. The monitor screen is resistive to a variety of chemicals that might be found near the installation site of the monitor, depending on the user. The series can support multiple different numbers for video mode types, including:

  • Resolution
  • Vertical Sync Frequency
  • Horizontal Sync Frequency

The PM1-5A1-XD1 can either be mounted in a control enclosure or on an adjustable arm. Users can choose their method of installation based on the way they want to use the monitor. There are different installation processes for both methods, but these processes can be found in the manuals.

Frequently Asked Questions about PM1-5A1-XD1

Where should the PM1-5A1-XD1 be installed?

The location of the installation is important. The PM1-5A1-XD1 is sensitive to electrical noise, which users should keep in mind. The temperature should also range from 0-50 degrees Celsius. There should not be moisture or humidity present in the area.

What might be a common problem for the PM1-5A1-XD1?

The image might extend beyond the screen, but this could mean that either the horizontal or vertical position needs to be adjusted. You can find how to adjust these positions on page 47 of the user guide.

Reviews For PM1-5A1-XD1

Internal Review
(5.0)

The PM1-5A1-XD1 PowerStation RS Monitor offers a user friendly display with a variety of features that can be changed to fit users needs. Installation of the monitors is crucial to ensure the success of the monitor. The PM1-5A1-XD1 needs to be installed in specific conditions in order to function properly. There are guides in the manual that give a walk through on installation and configuring the monitor with the PC, PX, or PS PowerStation or computer. - AX Control Lead Technician

Repair Services For PM1-5A1-XD1

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-5A1-XD1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

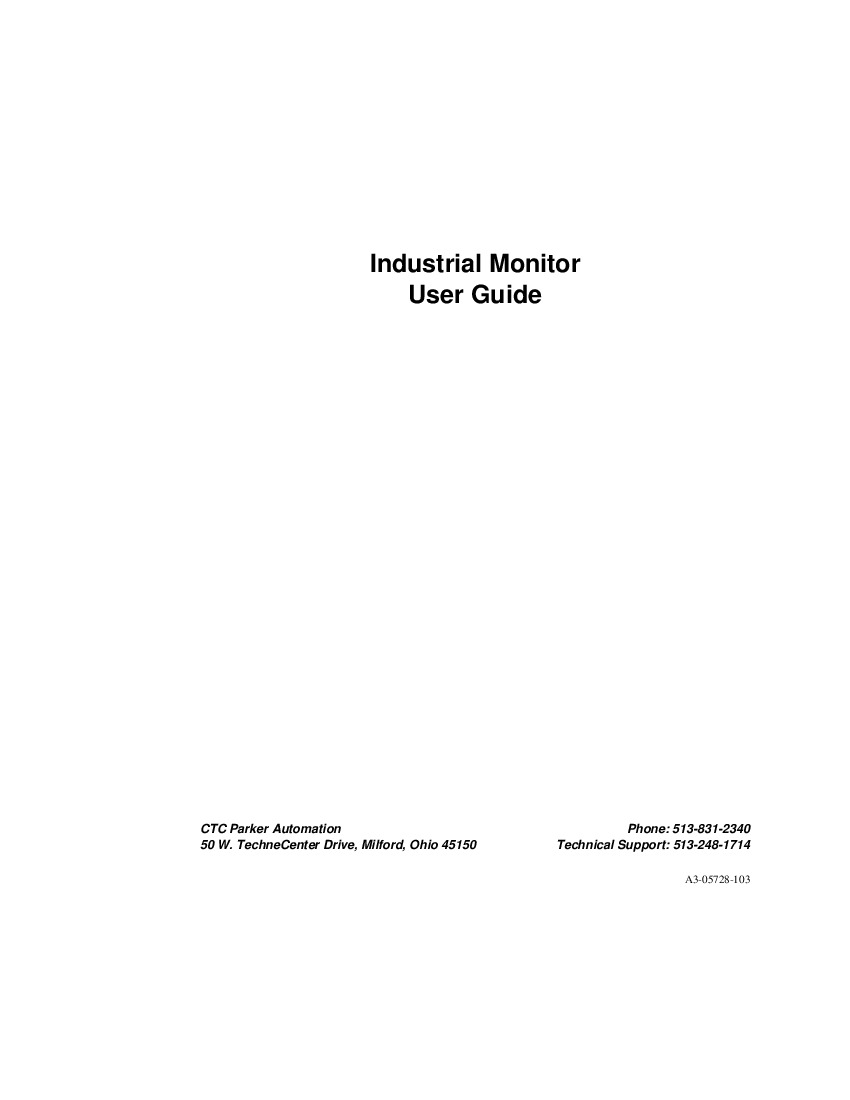

PM1-5A1-XD1 Manuals, White Papers, Data Sheets, and Troubleshooting
