PM1-5A1-XA3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
The PM1-5A1-XA3 is an HMI PowerStation PM1 RS Monitor

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a PM1-5A1-XA3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-5A1-XA3
  • SKU: CPA-58885
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-5A1-XA3 Technical Specifications

Model Number PM1-5A1-XA3
Manufacturer Parker CTC
Series PowerStation RS Monitors
Environmental Rating NEMA 4
Country of Manufacturer United States
Condition Availability Call for Availability
Weight 17.2 lbs
Dimensions 13.3” x 16.8” x 4.4”
Temperature 0-50 degrees Celsius

About the PM1-5A1-XA3

The PM1-5A1-XA3 is a PowerStation PM1 RS Monitor. The PowerStation series was originally manufactured by Parker CTC. There is a good deal of original manufacturer content online regarding the RS Monitors. The manual for the PM1 Monitors can be found under the "manuals" tab on this page. The manuals include important information regarding installation and troubleshooting for the series.


PM1-5A1-XA3 Hardware Inclusions

The PM1 Monitors are designed similarly with many of the same features included in all of them. The PM1-5A1-XA3 has an LED display screen that makes it easier for operators to access important information and settings. The PM1 Monitors have the following ratings:

  • 20-36 VDC Input voltage
  • 30 Watts maximum
  • 3.15A Fuse rating
  • NEMA 4 Enclosure*

* The NEMA 4 rating only applies when the monitor is contained in the enclosure. Without the enclosure, the PM1-5A1-XA3 is only resistive on the surface and screen to certain chemicals. PM1 Monitors should not be around corrosive materials or moist environments.


Frequently Asked Questions about PM1-5A1-XA3

What are the connectors on the PM1 Monitors?

There is an Analog Video Input port, Touchscreen port, and a +24VDC Power Input port.

What devices is the PM1-5A1-XA3 compatible with?

The PM1-5A1-XA3 is compatible with a PowerStation RS PC or other computers that run MS-DOS or Windows 95, 98, or NT systems.

Reviews For PM1-5A1-XA3

Internal Review
(5.0)

The PM1-5A1-XA3 offers a user friendly experience with an LED display screen that is resistive to chemicals like gasoline or ethanol. The PM1 Monitors can also be contained in a NEMA 4 rated enclosure. Another great feature of the series is the ability to mount monitors on an adjustable arm. All installation instructions can be found in the original manual materials. - AX Control Lead Technician

Repair Services For PM1-5A1-XA3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-5A1-XA3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

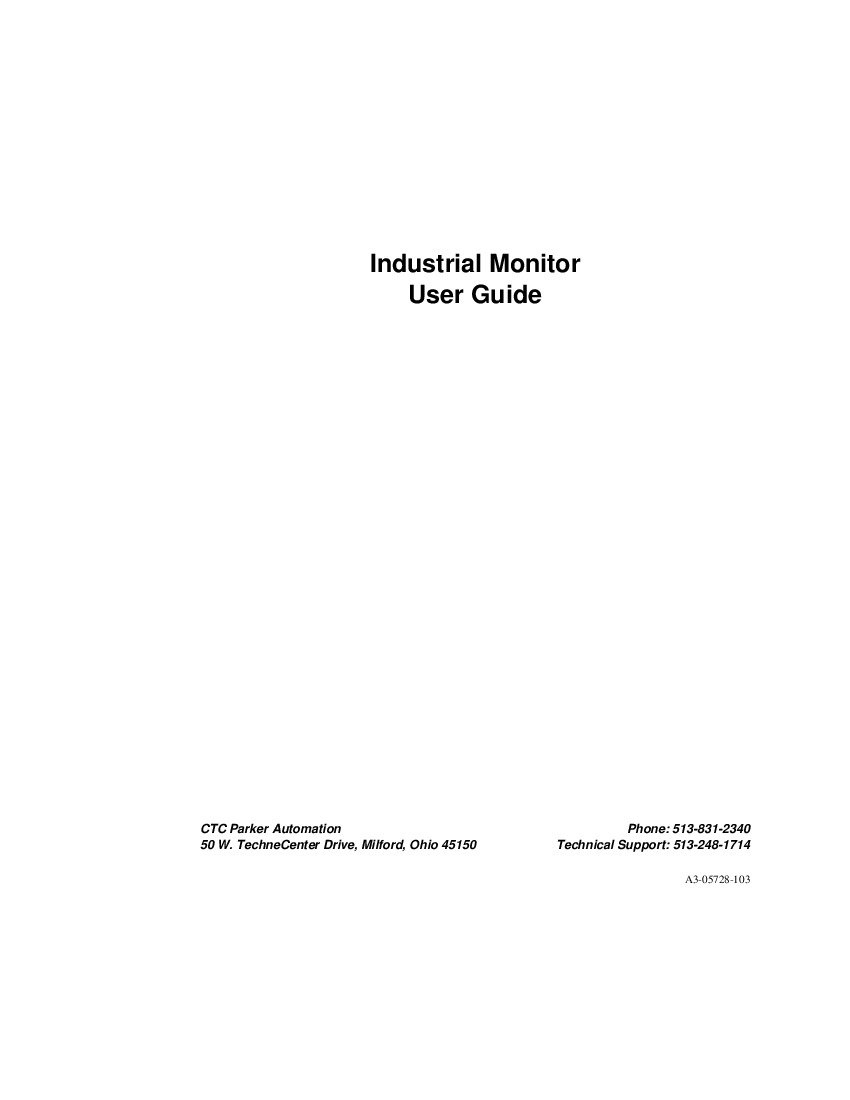

PM1-5A1-XA3 Manuals, White Papers, Data Sheets, and Troubleshooting
