PM1-4G1-XD3 PowerStation PM1 RS Monitor

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PM1-4G1-XD3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-4G1-XD3
  • SKU: CPA-58904
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-4G1-XD3 Technical Specifications

Model Number PM1-4G1-XD3
Manufacturer Parker CTC
Series PowerStation RS Monitors
Environmental Rating NEMA 4
Backlight Model # BLR-7000
Country of Manufacturer United States
Screen size 12.1"
Weight 14.6 lbs
Dimensions 12.1” x 15.1” x 3.6”
Voltage Rating 20-36 VDC

About the PM1-4G1-XD3

The PM1-4G1-XD3 is an HMI PowerStation RS Monitor. The PM1-4G1-XD3 was originally manufactured by Parker CTC. This series has online manual materials that are generalized but give information on how to install the monitors and how to maintain the system. The manual can be found under the "manuals" tab on our website. The manual provides users with installation processes and troubleshooting information.


PM1-4G1-XD3 Hardware Inclusions

The PM1-4G1-XD3 can support different video modes, like resolution, horizontal sync frequency, and vertical sync frequency. The monitors have a guide on the back that give information on the three connection ports, which can be found on the side of the monitor. These three connection parts are:

  • +24VDC Power Input port
  • Touchscreen port
  • Analog Video Input port

The PM1-4G1-XD3 connects with RS, RC, and RX PowerStation non-displays and other computers that run compatible systems. The PM1-4G1-XD3 is extremely sensitive to electrical noise, which should be considered before installation. For best installation practices, refer to the "manuals" tab for the user guide.


Frequently Asked Questions about PM1-4G1-XD3

What does the NEMA 4 rating mean?

NEMA 4 means that the monitor is designed for indoor use. The NEMA 4 rating only applies when the monitor is in the enclosure.

What is the maximum wattage of the PM1-4G1-XD3?

The max wattage is 30 Watts.

Reviews For PM1-4G1-XD3

Internal Review
(5.0)

The PM1-4G1-XD3 is a PowerStation RS Monitor that offers users a display with many features, such as brightness and contrast. The on-screen display has manageable settings that can be changed as needed. Users are given more options with the PM1-4G1-XD3. The PM1-4G1-XD3 also has a 20-36 VDC voltage rating and a 3.15A fuse rating. This rating is helpful for users because it is a faster acting ruse than others. - AX Control Lead Technician

Repair Services For PM1-4G1-XD3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-4G1-XD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

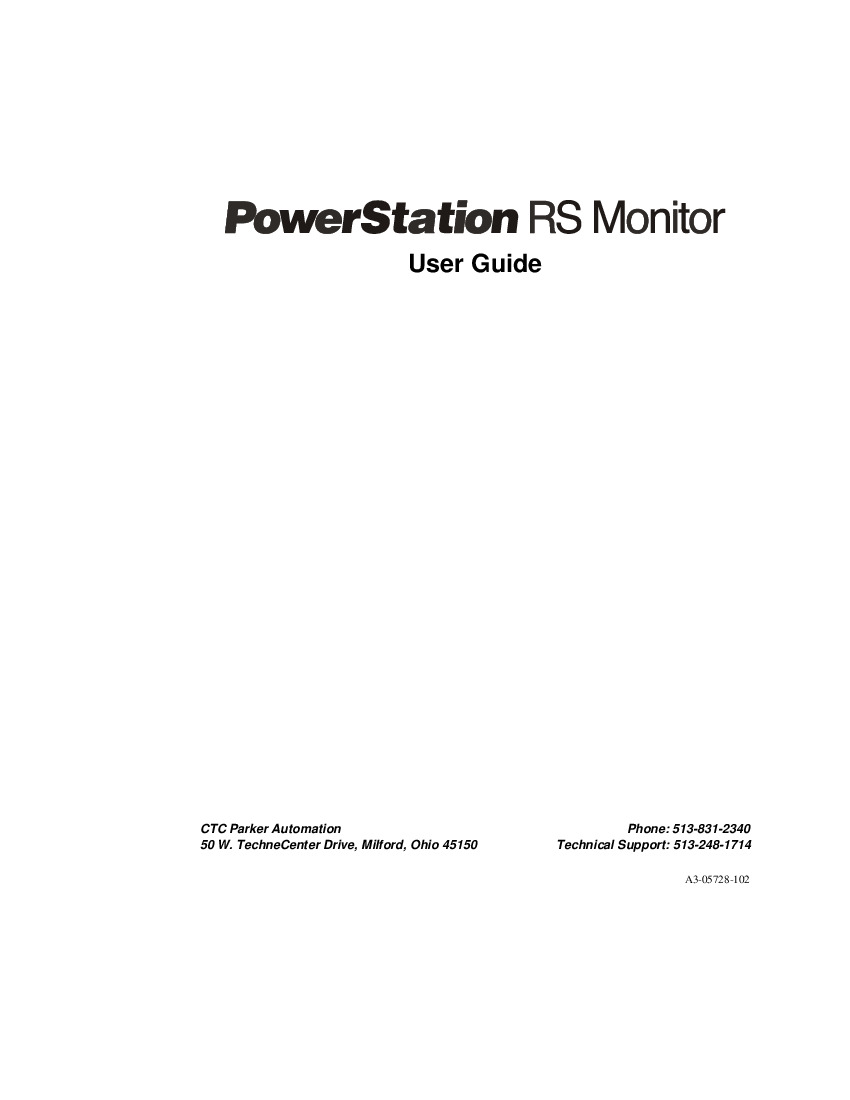

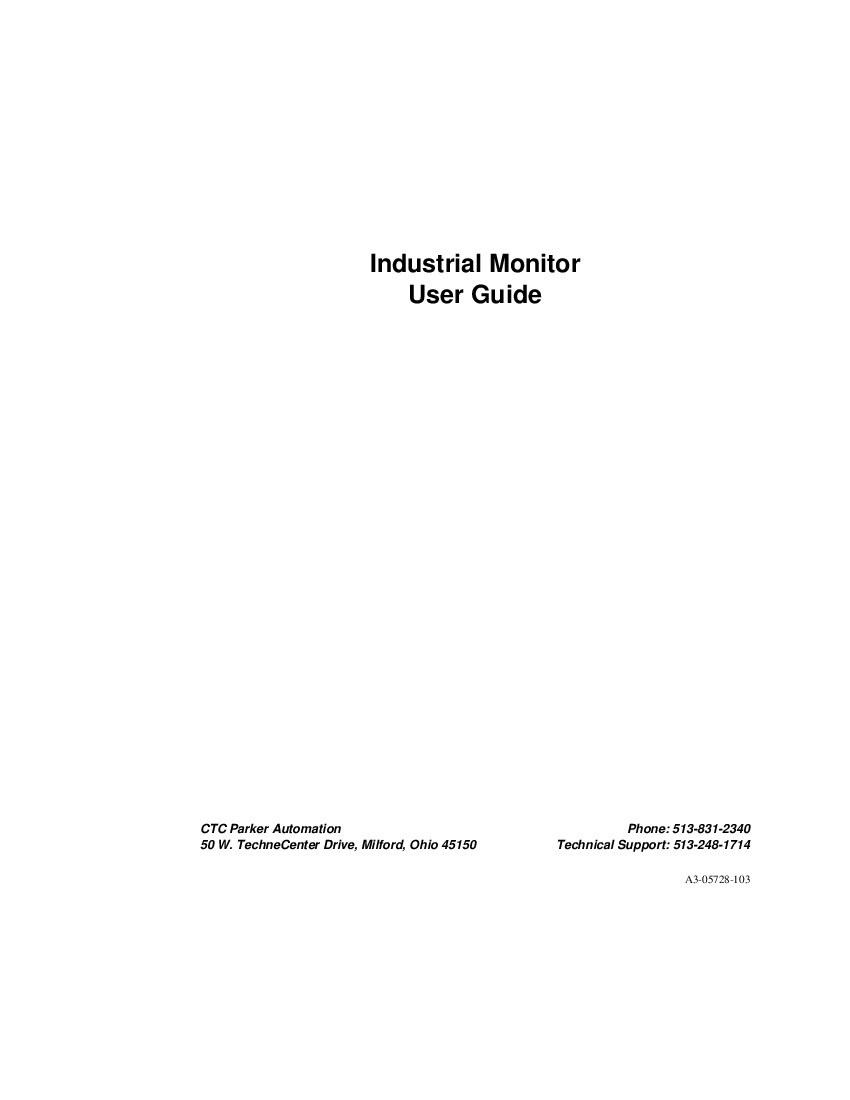

PM1-4G1-XD3 Manuals, White Papers, Data Sheets, and Troubleshooting
