The PM1-4E1-XA3 is an HMI PowerStation RS Monitor

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-4E1-XA3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-4E1-XA3
  • SKU: CPA-58886
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-4E1-XA3 Technical Specifications

Model Number PM1-4E1-XA3
Manufacturer Parker CTC
Series PowerStation RS Monitors
Backlight Model # BLR-7000
Environmental Rating NEMA 4
Temperature 0-50 degrees Celsius
Country of Manufacturer United States
Weight 14.6 lbs
Dimensions 12.1” x 15.1” x 3.6”
Ports Analog Video Input, Touchscreen, Power Input

About the PM1-4E1-XA3

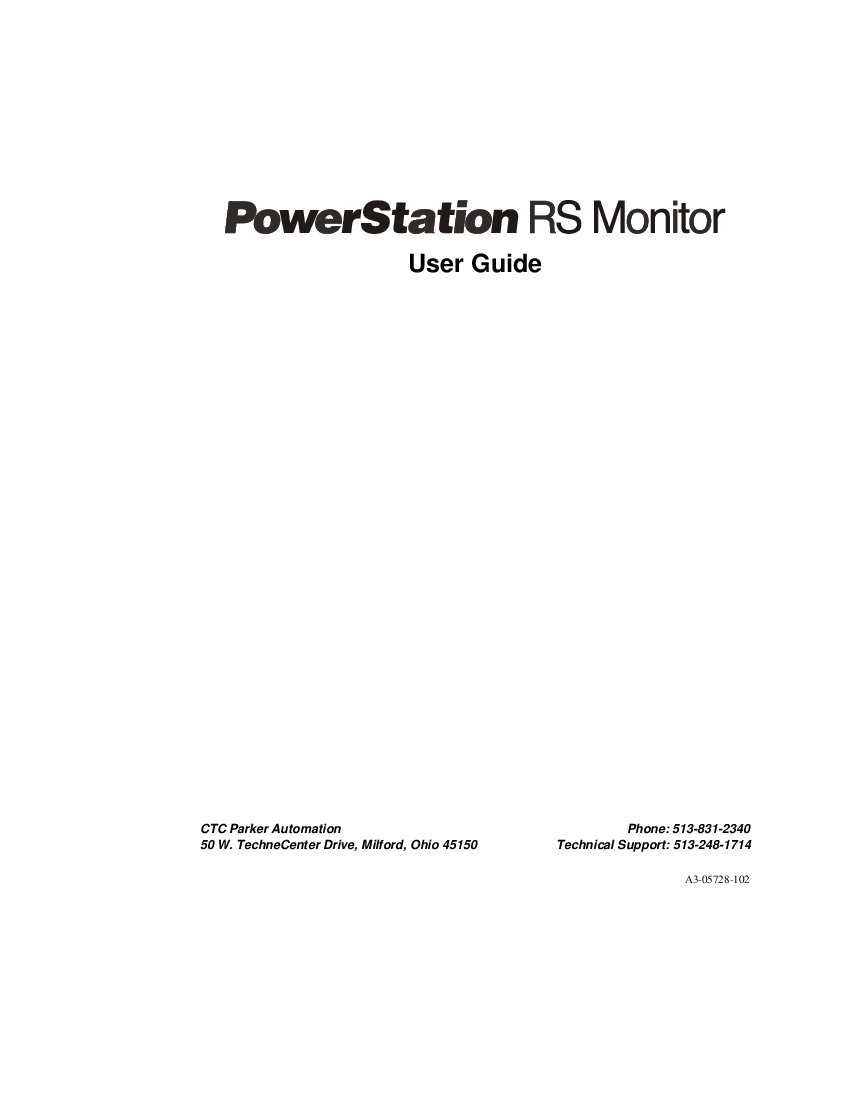

The PM1-4E1-XA3 is an HMI PowerStation RS Monitor manufactured by Parker CTC. Parker has provided a general, but comprehensive guide for the PowerStation series. This manual can be found under the "manuals" tab.


PM1-4E1-XA3 Hardware Inclusions

The RS Monitor series has a variety of different features that all monitors have in common. The PM1-4E1-XA3 is an LED display screen that can be connected to a RS, RC, or RX PowerStation or another compatible computer. The RS Monitor series can support a variety of numbers under the following video modes:

  • Resolution
  • Vertical Sync Frequency
  • Horizontal Sync Frequency

The RS Monitors have the NEMA 4 rating, but there is another level of protection that the screen offers. The screen is resistive to a variety of chemicals that could be present in an area where the monitor is installed. The surface of the monitor is also resistive to other chemicals if exposed to the outside.


Frequently Asked Questions about PM1-4E1-XA3

What are the three connectors on the side of the PM1-4E1-XA3?

These three connectors are the +24VDC Power Input port, Touchscreen port, and Analog Video Input port.

Where can the RS Monitors be installed?

The RS Monitors can be installed in a control enclosure or on an adjustable arm.

Reviews For PM1-4E1-XA3

Internal Review
(5.0)

The PM1-4E1-XA3 is an HMI PowerStation from Parker CTC. The monitor has a variety of features that are standard for all monitors in the series. The PM1-4E1-XA3 is sensitive to electrical noise, which means users should be conscious of where they install the monitor. The RS Monitors are only able to accept DC power, but there is an option AC power adapter that can be mounted externally on the monitor. - AX Control Lead Technician

Repair Services For PM1-4E1-XA3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-4E1-XA3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

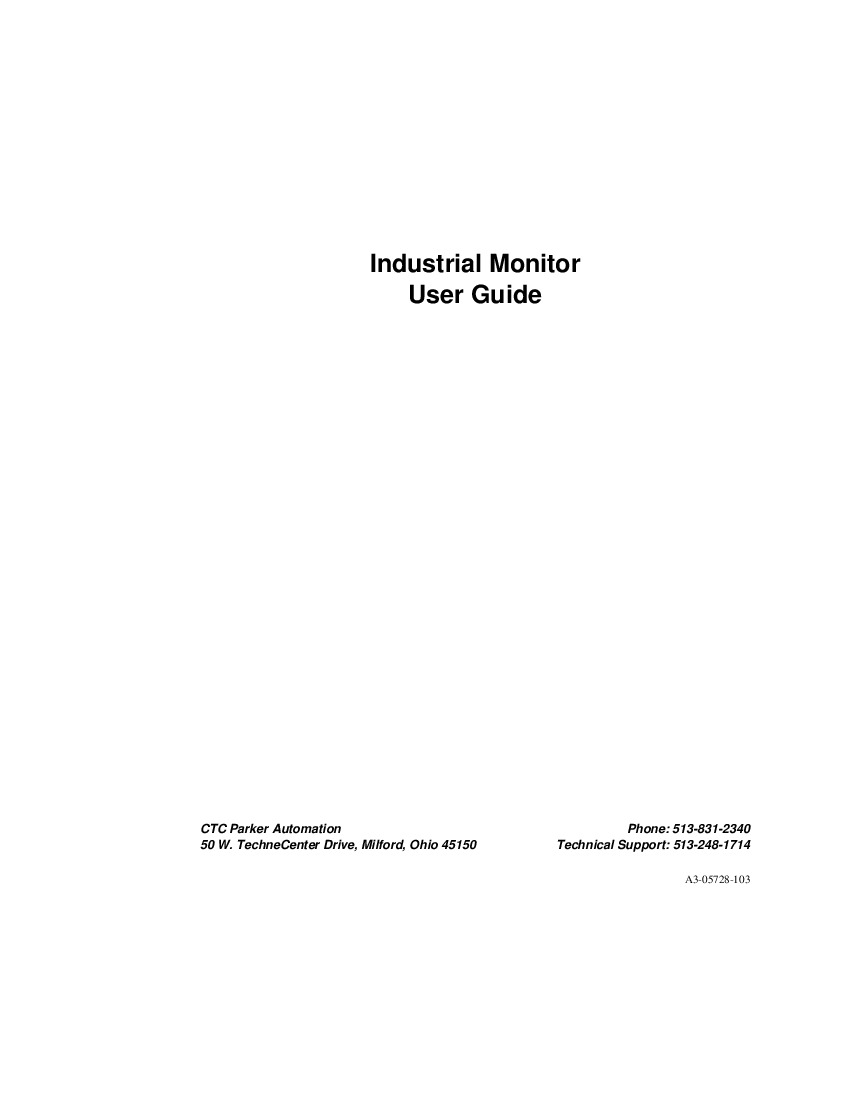

PM1-4E1-XA3 Manuals, White Papers, Data Sheets, and Troubleshooting
