The PM1-4A1-XD1 HMI PowerStation PM1 RS Monitor

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-4A1-XD1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-4A1-XD1
  • SKU: CPA-58888
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-4A1-XD1 Technical Specifications

Model Number PM1-4A1-XD1
Manufacturer Parker CTC
Series PowerStation RS Monitors
Environmental Rating NEMA 4
Country of Manufacturer United States
Temperature 0-50 degrees Celsius
Dimensions 12.1” x 15.1” x 3.6”
Weight 14.6 lbs

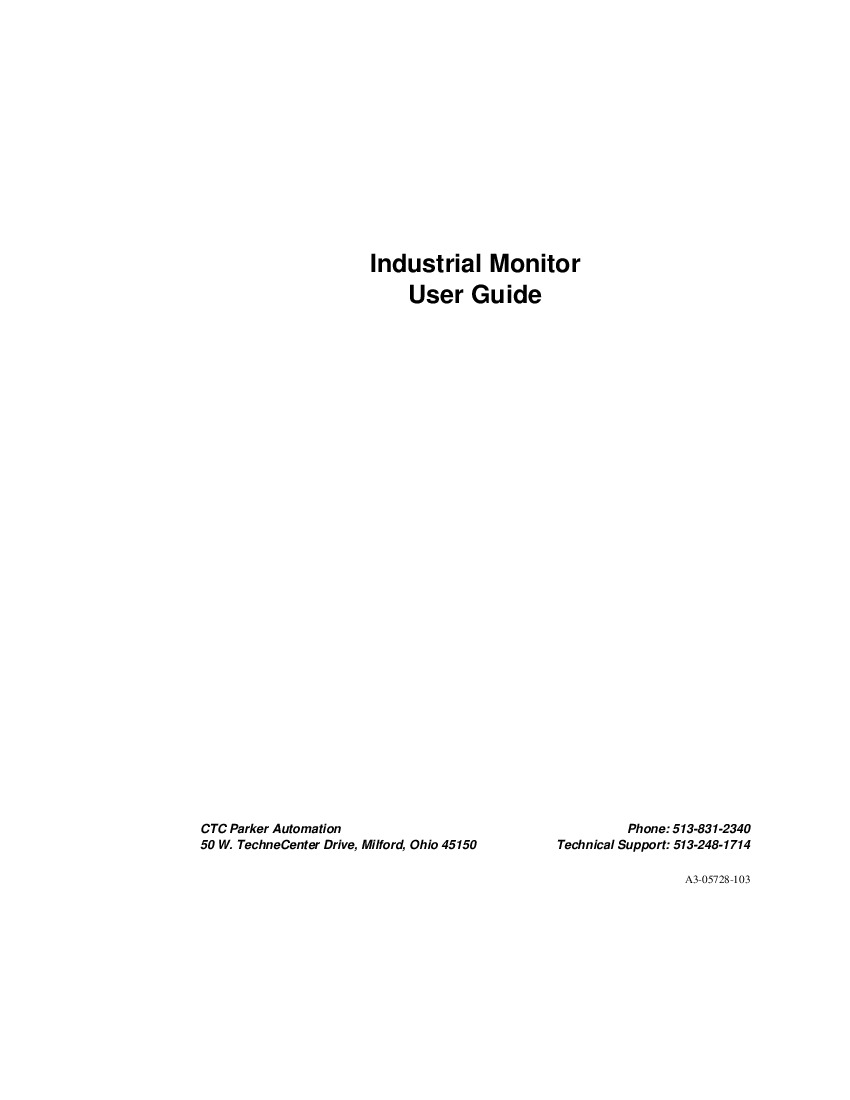

Manual Number A3-05728-103

About the PM1-4A1-XD1

The PM1-4A1-XD1 is a Parker CTC PowerStation PM1 RS Monitor. The PM1-4A1-XD1 is a flat-screen monitor and can be mounted on an adjustable arm or in an controlled enclosure. Parker has provided an abundance of manual materials to help users with installation and maintenance. There is also troubleshooting information in the manuals to help users with common problems. This guide can be found under the "manuals" tab on our website.


PM1-4A1-XD1 Hardware Inclusions

All RS Monitors can be connected to the RS, RX, and RC PowerStation or a computer that runs one of the compatible systems with the monitor. The monitors also conform with a variety of testing specifications. All information on the RS Monitors can be found in the online manuals. The monitors have the following ratings:

  • 20-36 VDC Input Voltage range
  • 30 Watts Maxiumum Power requirement
  • 3.15A Fuse rating

The manuals also contain important information on how to install the monitors within an enclosure. This includes guidelines for making cut-outs of the monitor and how to connect an AC power adapter. The three connection ports on the side of the RS Monitor are important for connecting the monitor to the RS PC or other computer.


Frequently Asked Questions about PM1-4A1-XD1

Can the video image be adjusted on the RS Monitors?

Yes, video images can be adjusted. The online manual gives a thorough walk through on how to adjust the video on page 47.

Can the PM1-4A1-XD1 be cleaned?

Yes, the PM1-4A1-XD1 is resistive to certain chemicals, including certain cleaners. For a full list, refer to manual pages 14-15.

Reviews For PM1-4A1-XD1

Internal Review
(5.0)

The PM1-4A1-XD1 is an HMI PowerStation RS Monitor that was originally manufactured by Parker CTC. The PM1-4A1-XD1 has three connection ports, including a Touchscreen port. The RS monitors also allow for calibration and recalibration should anything need adjusting. The user guide will give important information on all processes. - AX Control Lead Technician

Repair Services For PM1-4A1-XD1

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-4A1-XD1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

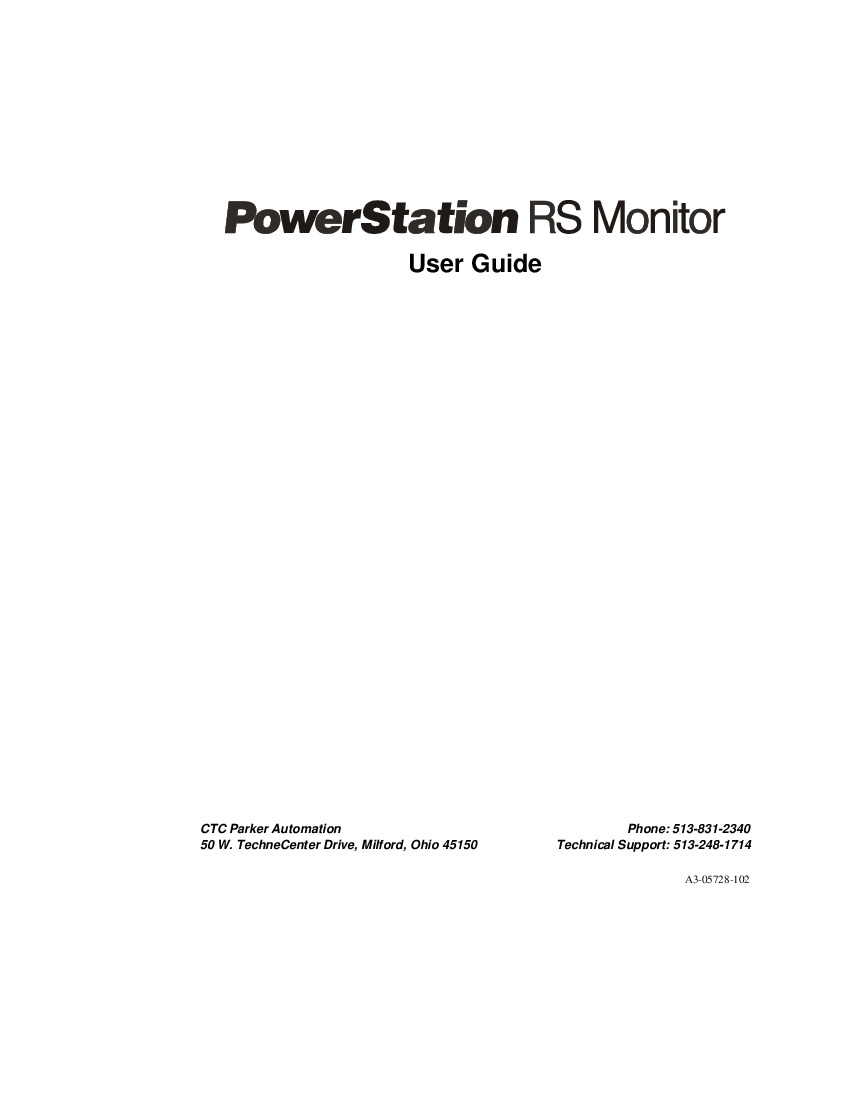

PM1-4A1-XD1 Manuals, White Papers, Data Sheets, and Troubleshooting
