PM1-3A1-XD3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
The PM1-3A1-XD3 is a PowerStation RS Monitor
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a PM1-3A1-XD3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM1-3A1-XD3
  • SKU: CPA-58890
  • Manufacturer: CTC Parker Automation
  • Series: PM1 PowerStation RS Monitors

PM1-3A1-XD3 Technical Specifications

Manufacturer Parker CTC
Series PowerStation RS Monitors
Model Number PM1-3A1-XD3
Country of Manufacturer United States
Environmental Rating NEMA 4
Temperature 0-50 degrees Celsius
Input Voltage 20-36 VDC
Backlight Model # BLR-6110

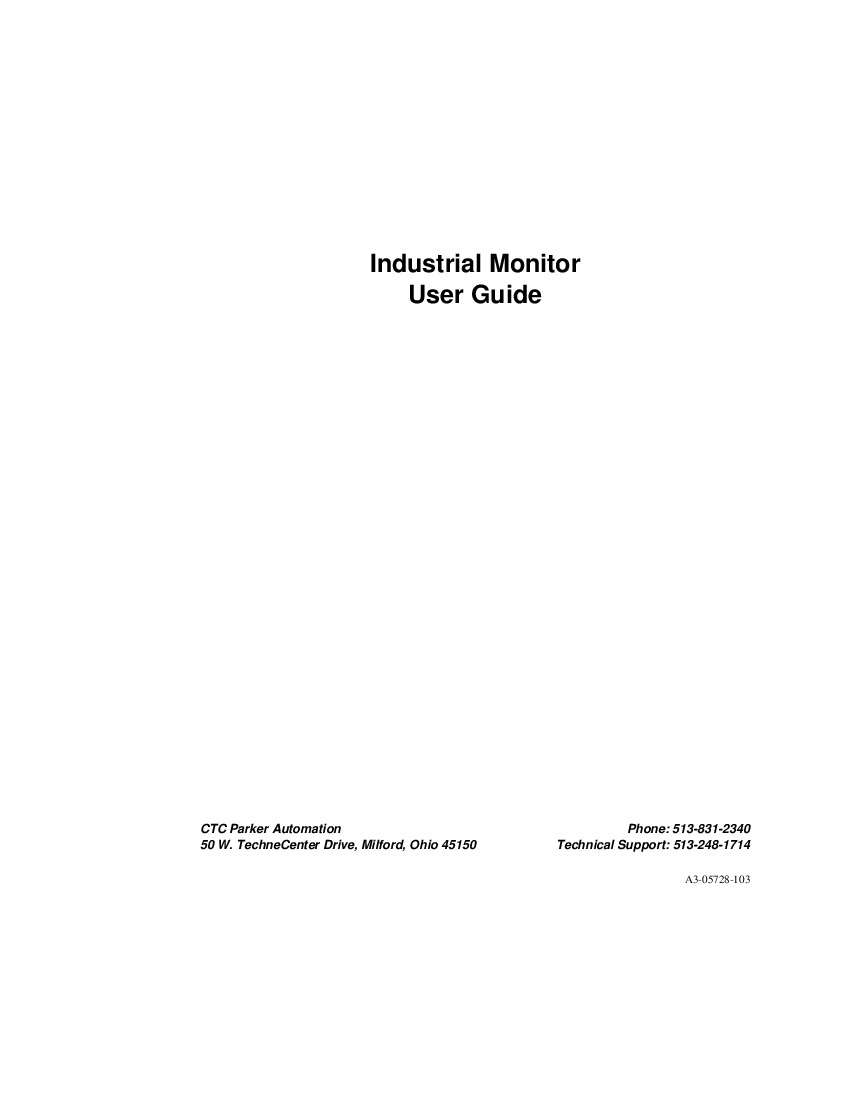

Manual Number A3-05728-103
Certifications CE and UL Certifications

About the PM1-3A1-XD3

The PM1-3A1-XD3 is a Parker CTC HMI PowerStation PM1 RS Monitor. The RS Monitor series has three connection ports on the side of the monitors: Video Input port, Touchscreen port, and Power Input port. The PM1 RS Monitor series has been discontinued and the products are now considered obsolete. There is still a variety of online manual materials regarding the RS Monitor series.

PM1-3A1-XD3 Hardware Inclusions

The PM1-3A1-XD3 has a variety of features that are standard for all RS monitors. The PM1-3A1-XD3 can be mounted to a control enclosure or attached to an adjustable arm. Either option allows for easy access to the monitor. The monitors have, but are not limited to, the following on-screen display settings:

  • Brightness
  • Vertical Position
  • Horizontal Position
  • OSD Background

The PM1-3A1-XD3 gives users the options of changing settings as they might need to for their specific uses. The RS monitors are extremely sensitive to electrical noise, which is something that users need to be aware of before installation.

Frequently Asked Questions about PM1-3A1-XD3

Do I need to configure my RS monitor to my PowerStation RS PC?

No, the monitor and the Powerstation RS PC should have already been configured by Parker CTC.

What kind of location should the PM1-3A1-XD3 be installed in?

The PM1-3A1-XD3 should be kept in an area with no moisture or humidity condensation. The monitor should also be kept in a range from 0-50 degrees Celsius.

Reviews For PM1-3A1-XD3

Internal Review
(5.0)

The PM1-3A1-XD3 is a basic RS Monitor system manufactured by Parker CTC. The PM1-3A1-XD3 has a 30 Watts maximum and an Input Voltage range of 20-36 VDC. The monitor's power supply can detect the input voltage amount and adjust automatically. The PM1-3A1-XD3 can also support multiple video modes. - AX Control Lead Technician

Repair Services For PM1-3A1-XD3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your PM1-3A1-XD3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

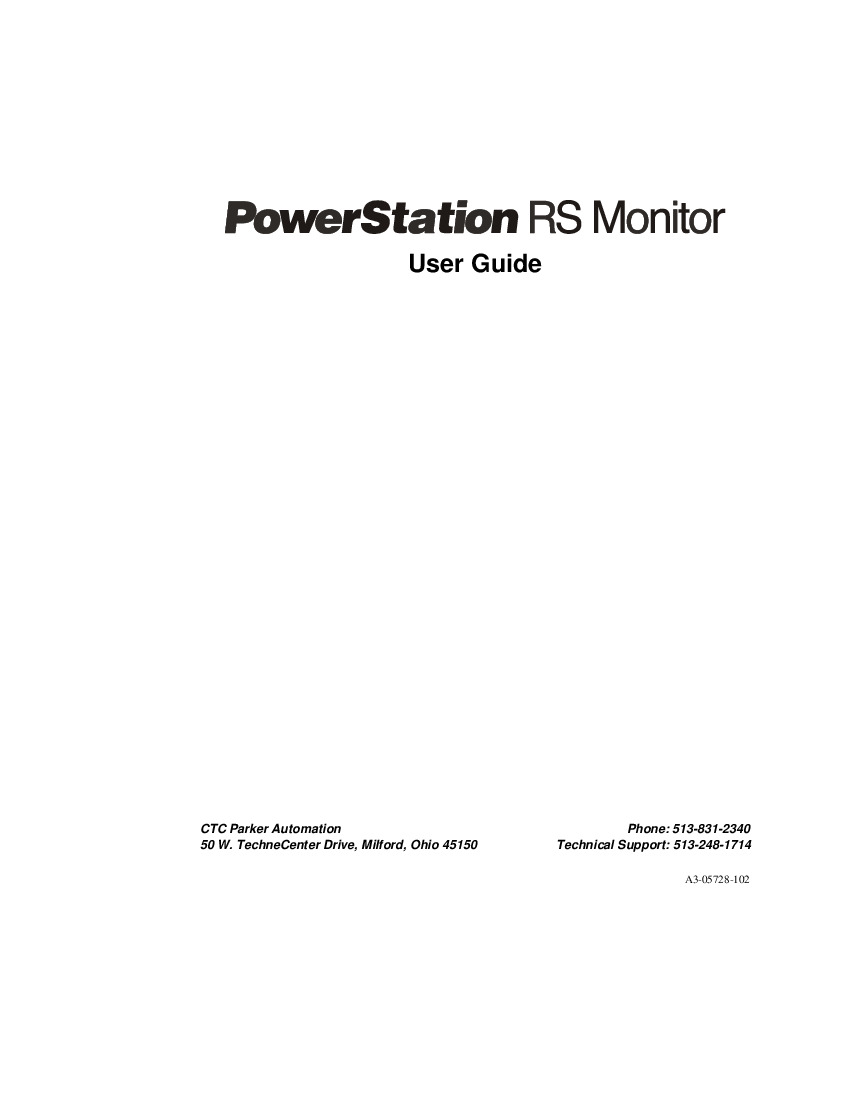

PM1-3A1-XD3 Manuals, White Papers, Data Sheets, and Troubleshooting
