P21-3C2-A4-1D3
- 4.00 (1)
The P21-3C2-A4-1D3 is a P2 PowerStations Monitor manufactured by CTC Parker Automation.
About the P21-3C2-A4-1D3
- Display: Color TFT, 640 x 480 VGA, 256 colors.
- Brightness: 150 cd/m2 (NIT).
- Memory 8 MB minimum, 256 MB maximum
- Backlight model: BLR-6080
- Operating temperature 32 to 122ºF (0 to 50ºC) ambient air temperature at air inlets

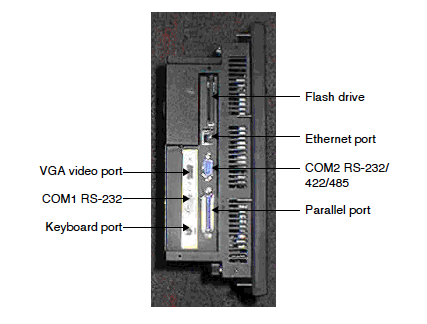

The P21-3C2-A4-1D3 PowerStation includes many of the same ports found on most PCs. All P2 PowerStations have two serial ports, a VGA video port, a parallel port, a PS/2-style keyboard port, an Ethernet port, and a Compact Flash connector. The following illustration shows the available connectors on a P2.
Frequently Asked Questions about P21-3C2-A4-1D3
How many I/O ports does the P21-2C2-A6-1D3 has?
The P2 PowerStation has 5 I/O ports:
- 1 9-pin RS232 (non-isolated)
- 1 9-pin RS232/422/485 (non-isolated)
- 1 25-pin IBM parallel
- 1 PS/2 keyboard
- 1 RJ45 10/100 Base T Ethernet
What is the weight of the unit?
12.6 lbs / 5.6 Kg
What is the faceplate chemical resistance?
