P21-3C1-A4-1D3

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The P21-3C1-A4-1D3 P2 PowerStation is a rugged, compact PC that is designed to be used as an industrial operator interface.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

1 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a P21-3C1-A4-1D3 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: P21-3C1-A4-1D3
SKU: CPA-58903

Manufacturer: CTC Parker Automation
Series: P2 PowerStations

Description
Repairs
Warranty
Manuals

P21-3C1-A4-1D3 Technical Specifications

Manufacturer	CTC Parker Automation
Series	P2 PowerStations
Part Number	P21-3C1-A4-1D3
Shipping Weight	15 lb
Voltage	20-36 VDC, 50 Watts Max
Compliant	Year 2000 Compliant
Backlight Model	BLR-6080
Environmental Rating	Type 4, 0-50ºC
Display	12 inch

About the P21-3C1-A4-1D3

The P21-3C1-A4-1D3 P2 PowerStation is a rugged, compact PC that is designed to be used as an industrial operator interface. It features a durable touchscreen and two boards that include a parallel port, two serial ports, and an Ethernet port. The PowerStation’s PC architecture allows you to run CTC Parker’s MachineShop™ software.

Memory 8 MB minimum, 256 MB maximum

Storage 8, 16, 32, 48, 96 or 128 MB solid state flash drive (field expandable and replaceable). Actual storage volumes may be higher.

I/O ports • 1 9-pin RS232 (non-isolated)

1 9-pin RS232/422/485 (non-isolated)
1 25-pin IBM parallel
1 PS/2 keyboard
1 RJ45 10/100 Base T Ethernet

PC/104 Bus extension 16-bit, +/-5V, +/-12V

Dimensions (H x W x D) 11.0" (280mm) x 13.8" (350mm) x 3.5" (89mm)

Weight 12.6 lbs. (5.6 Kg)

Reviews For P21-3C1-A4-1D3

Internal Review

(5.0)

Key Features, Expandability, and Software Compatibility – Central to the P21-3C1-A4-1D3's appeal is its 12-inch display with a durable touchscreen, providing an intuitive and resilient interface for operators. It runs on a 20-36 VDC input with a maximum power consumption of 50 Watts, and utilizes a BLR-6080 backlight model. The unit offers flexible memory configurations, from a minimum of 8 MB to a maximum of 256 MB, and provides ample solid-state flash drive storage options (8, 16, 32, 48, 96, or 128 MB), which are conveniently field expandable and replaceable. Its PC architecture is a significant advantage, allowing it to run CTC Parker’s MachineShop™ software, enhancing its utility for automation tasks. — AX Control Lead Technician

Repair Services For P21-3C1-A4-1D3

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your P21-3C1-A4-1D3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More

P21-3C1-A4-1D3 Manuals, White Papers, Data Sheets, and Troubleshooting

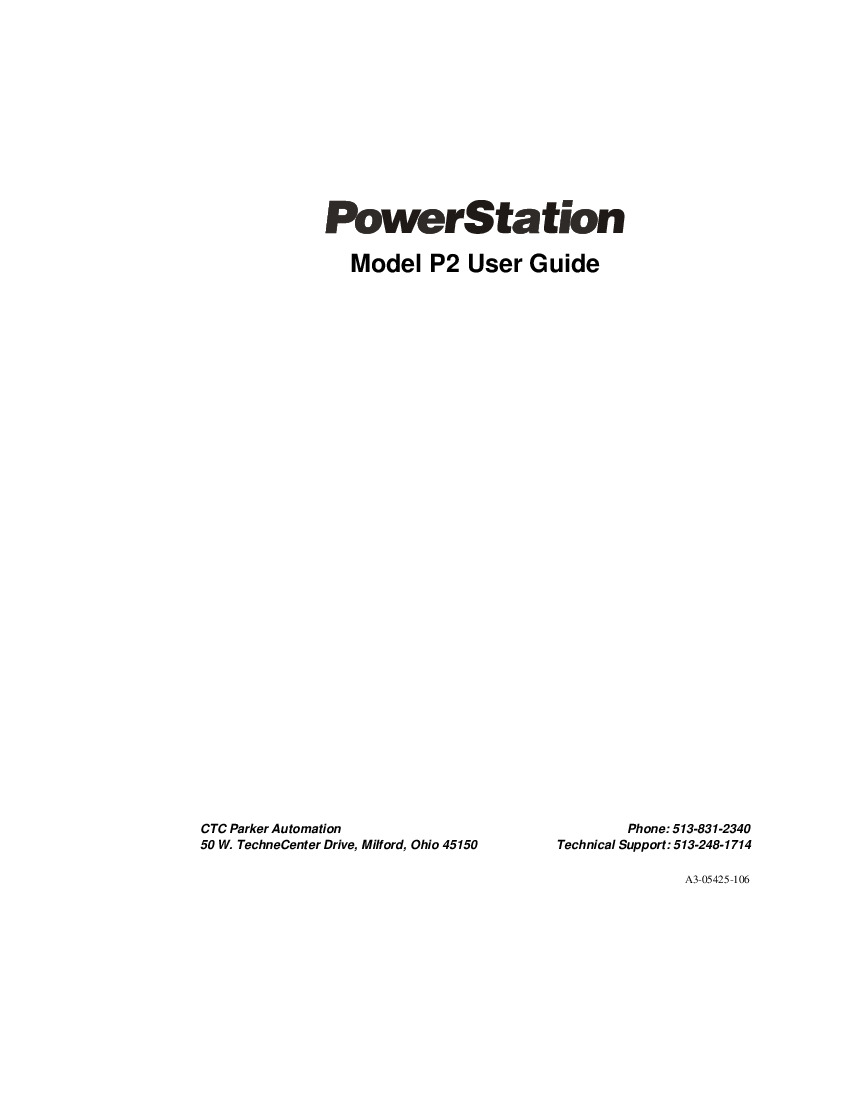

P21-3C1-A4-1D3_Manual.pdf
P21-3C1-A4-1D3_Manual.pdf
