P21-2B1-A4-1D3 CTC Parker Automation P2 PowerStation, 20-36 VDC, 50 Watts Max, BLR-6060

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a P21-2B1-A4-1D3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: P21-2B1-A4-1D3
  • SKU: CPA-58899
  • Manufacturer: CTC Parker Automation
  • Series: P2 PowerStations

P21-2B1-A4-1D3 Technical Specifications

Manufacturer CTC Parker Automation
Series P2 PowerStations
Part Number P21-2B1-A4-1D3
Environmental Rating Type 4, 0-50ÂșC
Backlight Model BLR-6060
Voltage 20-36 VDC, 50 Watts Max
Compliant Year 2000 Compliant

About the P21-2B1-A4-1D3

The P21-2B1-A4-1D3 PowerStation has two serial ports that you can use to communicate with external devices. These ports support baud rates of up to 115 Kbaud. The COM1 port supports RS-232, while COM2 supports RS-232, RS-422, and RS-485 communication standards. The surface exposed to the outside of the enclosure are resistive to the following chemicals:

  • Commercial glass cleaners
  • Ammonia (10% dilute solution)
  • Motor oil
  • Hydraulic fluid
  • Diesel fuel
  • Gasoline (leaded, unleaded)
  • Silicone based lubricant
  • Alcohol (ethyl, methyl)
  • Automatic transmission fluid

P21-2B1-A4-1D3 Device Hardware Connectors
  • The P21-2B1-A4-1D3 PowerStation has a VGA Video port that allows you to use an external SVGA monitor and the flat-panel display simultaneously.
  • The parallel port (LPT1) pinout is identical to the standard IBM parallel printer port.
  • The CPU board includes a mini-DIN keyboard port. This port can accept input from keyboards that have a PS/2 connector. This port can also accept input from IBM AT-compatible keyboards, including 84-key standard keyboards and 101-key enhanced keyboards.
  • The PowerStation has a fully integrated 10 baseT/100 baseTX Ethernet port connected to the 32-bit PCI Bus. The port allows you to connect the PowerStation to a Local Area Network, motion controller or I/O system. Novell, TCP/IP and all other Ethernet protocols are supported.

Frequently Asked Questions about P21-2B1-A4-1D3

What kind of keyboard can be connected to the PowerStation?

The CPU board includes a mini-DIN keyboard port that can accept input from keyboards with a PS/2 connector, as well as IBM AT-compatible keyboards (including 84-key standard and 101-key enhanced keyboards).

What are the Ethernet capabilities of the PowerStation?

It has a fully integrated 10BaseT/100BaseTX Ethernet port connected to the 32-bit PCI Bus. This port allows connection to a Local Area Network (LAN), motion controller, or I/O system.

Repair Services For P21-2B1-A4-1D3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your P21-2B1-A4-1D3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

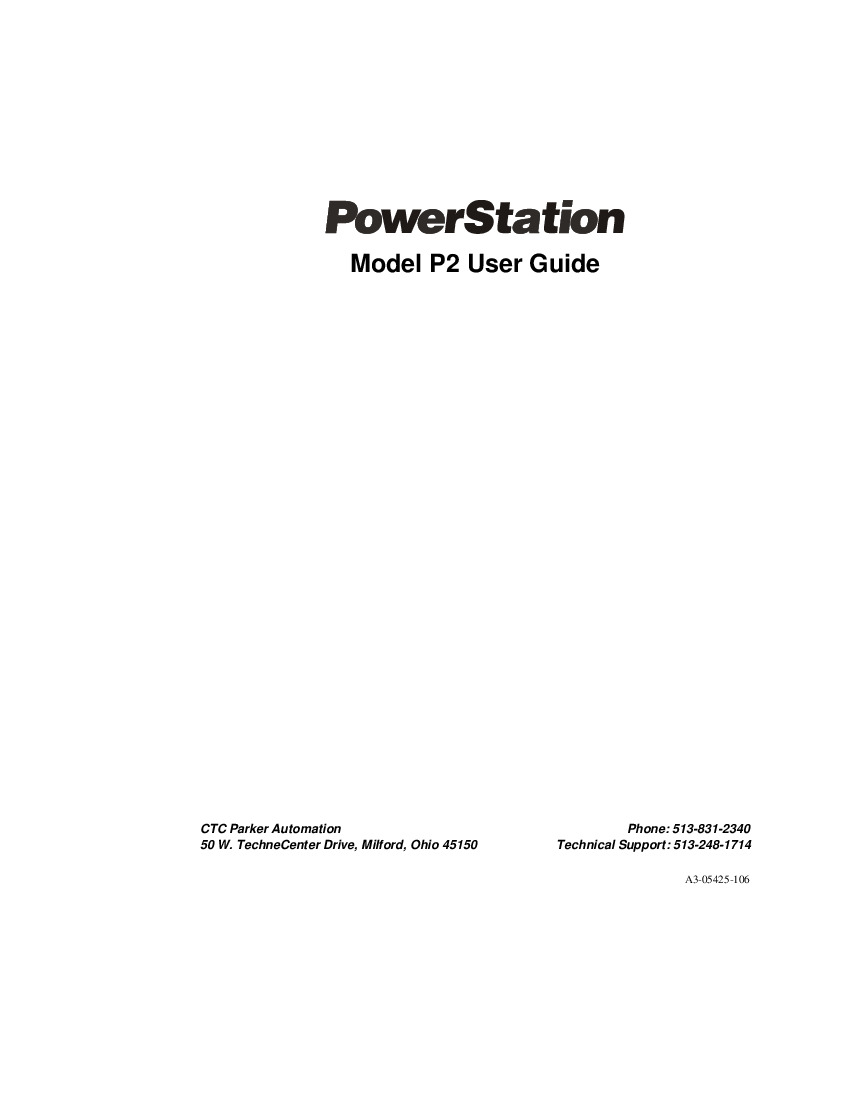

P21-2B1-A4-1D3 Manuals, White Papers, Data Sheets, and Troubleshooting
