P21-0C2-A4-1D3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
P21-0C2-A4-1D3 CTC Parker Automation P2 PowerStations
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a P21-0C2-A4-1D3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: P21-0C2-A4-1D3
  • SKU: CPA-58897
  • Manufacturer: CTC Parker Automation
  • Series: P2 PowerStations

P21-0C2-A4-1D3 Technical Specifications

Manufacturer CTC Parker Automation
Series P2 PowerStations
Part Number P21-0C2-A4-1D3
Shipping Weight 15 lb

About the P21-0C2-A4-1D3

The P21-0C2-A4-1D3 PowerStation is manufactured by CTC Parker Automation and part of the P2 PowerStations Series.

  • Memory: 8 MB minimum, 256 MB maximum
  • Storage 8, 16, 32, 48, 96 or 128 MB solid state flash drive (field expandable and replaceable). Actual storage volumes may be higher.
  • I/O ports • 1 9-pin RS232 (non-isolated)
    • 1 9-pin RS232/422/485 (non-isolated)
    • 1 25-pin IBM parallel
    • 1 PS/2 keyboard
    • 1 RJ45 10/100 Base T Ethernet
  • PC/104 Bus extension 16-bit, +/-5V, +/-12V
  • Dimensions (H x W x D) 11.0" (280mm) x 13.8" (350mm) x 3.5" (89mm)
  • Weight 12.6 lbs. (5.6 Kg)

The P21-0C2-A4-1D3 PowerStation’s power supply automatically detects the input voltage level and adjusts accordingly. The P21-0C2-A4-1D3 P2 PowerStation includes many of the same ports found on most PCs. All P2 PowerStations have two serial ports, a VGA video port, a parallel port, a PS/2-style keyboard port, an Ethernet port, and a Compact Flash connector.

Frequently Asked Questions about P21-0C2-A4-1D3

What are the storage options?

It comes with a solid-state flash drive with storage options of 8, 16, 32, 48, 96, or 128 MB. These are field expandable and replaceable, and actual storage volumes may be higher.

Does it have a PC/104 bus extension?

Yes, it includes a 16-bit PC/104 bus extension with +/-5V and +/-12V power availability.

How does the power supply handle input voltage?

The P21-0C2-A4-1D3 PowerStation's power supply automatically detects the input voltage level and adjusts accordingly.

Repair Services For P21-0C2-A4-1D3

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your P21-0C2-A4-1D3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

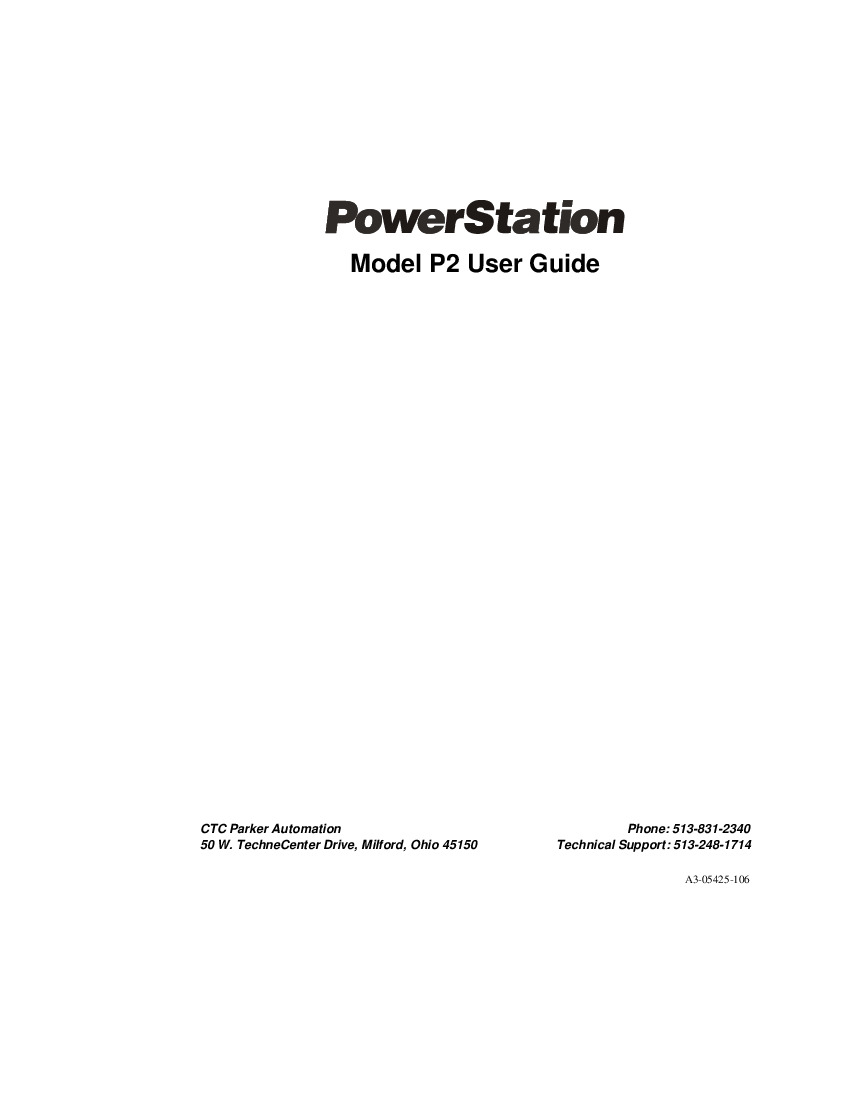

P21-0C2-A4-1D3 Manuals, White Papers, Data Sheets, and Troubleshooting
