ISM1400-C11

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Designed to be used in stand-alone applications the ISM1400-C11 model can be used in factory settings to identify barcodes and much more. This model is equipped with a color tool but it is not entirely sure if this model has a PatMax function.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a ISM1400-C11 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: ISM1400-C11
  • SKU: ISM1400C11CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight Micro Series Vision System

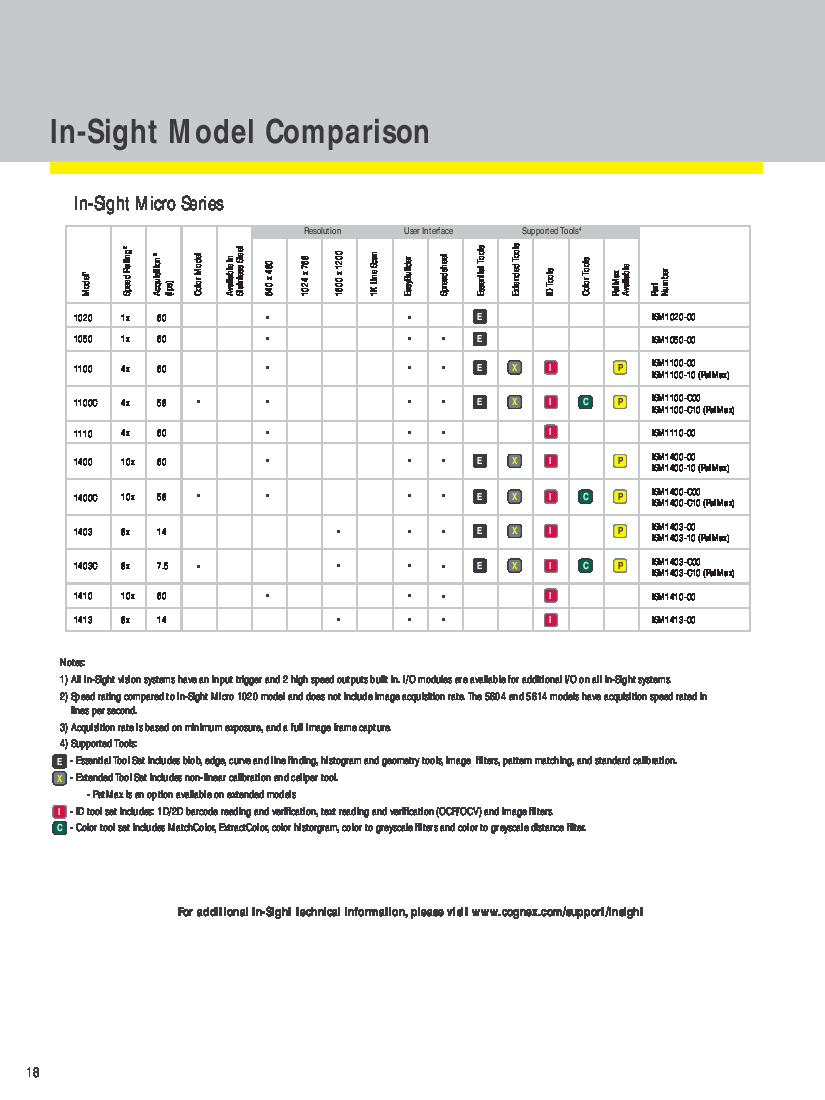

ISM1400-C11 Technical Specifications

Acquistion Rate 58 fps
Bit Depth 24-Bit Color
Color Model Yes, denoted by the C
Firmware Requirement In-Sight Version 4.4.3
Humidity 90%, non-condensing
Regulatory Compliance CE, FCC, KCC, TÜV SÜD NRTL, RoHS
Sensor Type 1/3" CCD
Speed Rating 10x
Supported Tools Essential, Extended, Color, ID, and Potential PatMax

Product Description

The ISM1400-C11 model was designed by Cognex as a compact and stand-alone unit to work in applications in which a vision system is needed to identify barcodes, items by shape and color, or alphanumeric characters. This unit also has the capability to identify parts on some of the fastest production lines. As denoted by the C in this models part number this unit has a color software tool, the specific tool is known as ExtractColor which can inspect a menagerie of color features on a part, within the color software tool there is also a tool labeled a vigorous MatchColor tool that will acknowledge the part based simply on its color.

Several different cables can be used with the ISM1400-C11 model, one of which is the Ethernet cable; there are two ends of the cable each has eight pins and are referred to as P1 and P2, the pins within the cable have different signal names, and wire colors associated with them. For example pin eight on the P1 end and pin six on the P2 end are used for the TPI-/+48VDC RTN (Mode A) signal with the associated wire color being green. The remaining pin signals and associated colors are found on page twenty-five of the In-Sight Micro Series Vision System Installation Manual which can be found above in the manuals tab.

If the ISM1400-C11 model requires a cleaning a small amount of isopropyl alcohol or mild cleaner should be applied to a cleaning cloth and then wiped down. Spraying or pouring the cleaner directly onto the model can cause damage to the system's housing.

Frequently Asked Questions about ISM1400-C11

How does the I/O module cable connect to the ISM1400-C11 Compact In-Sight Color Micro 1400C Series Cognex Vision System?
The Compact In-Sight Color Micro 1400C Series Cognex Vision System ISM1400-C11 has an I/O connector located at the rear of the vision system. The I/O module cable is designed to have a M8 connector at one end which will connect to the I/O connector of the vision system. The I/O Module cable also has  DB15 connector that connects with the I/O module (ex. CIO-MICRO-CC) itself via an I/O connector.
How does the ISM1400-C11 Compact In-Sight Color Micro 1400C Series Cognex Vision System obtain power and an Ethernet capacity?
The PoE connector is the remaining connector located at the rear of the Cognex vision systems. This connector is significantly larger then the units I/O connector. This connection is what will provide the Cognex ISM1400-C11 Compact In-Sight Color Vision System with both power and an Ethernet connection. Either the CIO-MICRO or the CIO-MICRO-CC I/O module will be connected to the vision system for this purpose. If a third party device is used then that device must supply a PoE injector or switch to supply power. Please note, the I/O module should not be connected to any other power source other than a 24 VDC power.

Reviews For ISM1400-C11

Internal Review
(5.0)

One of the major features of this model is the fact that it has a color tool and can be used with color-to-greyscale filters. This model is also best used when used in applications that require parts to be identified by their color. - AX Control Tech Team

Repair Services For ISM1400-C11

Type Lead Time Price Action
Repair Service 1-2 weeks $795

Our highly skilled technicians can repair your ISM1400-C11. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
