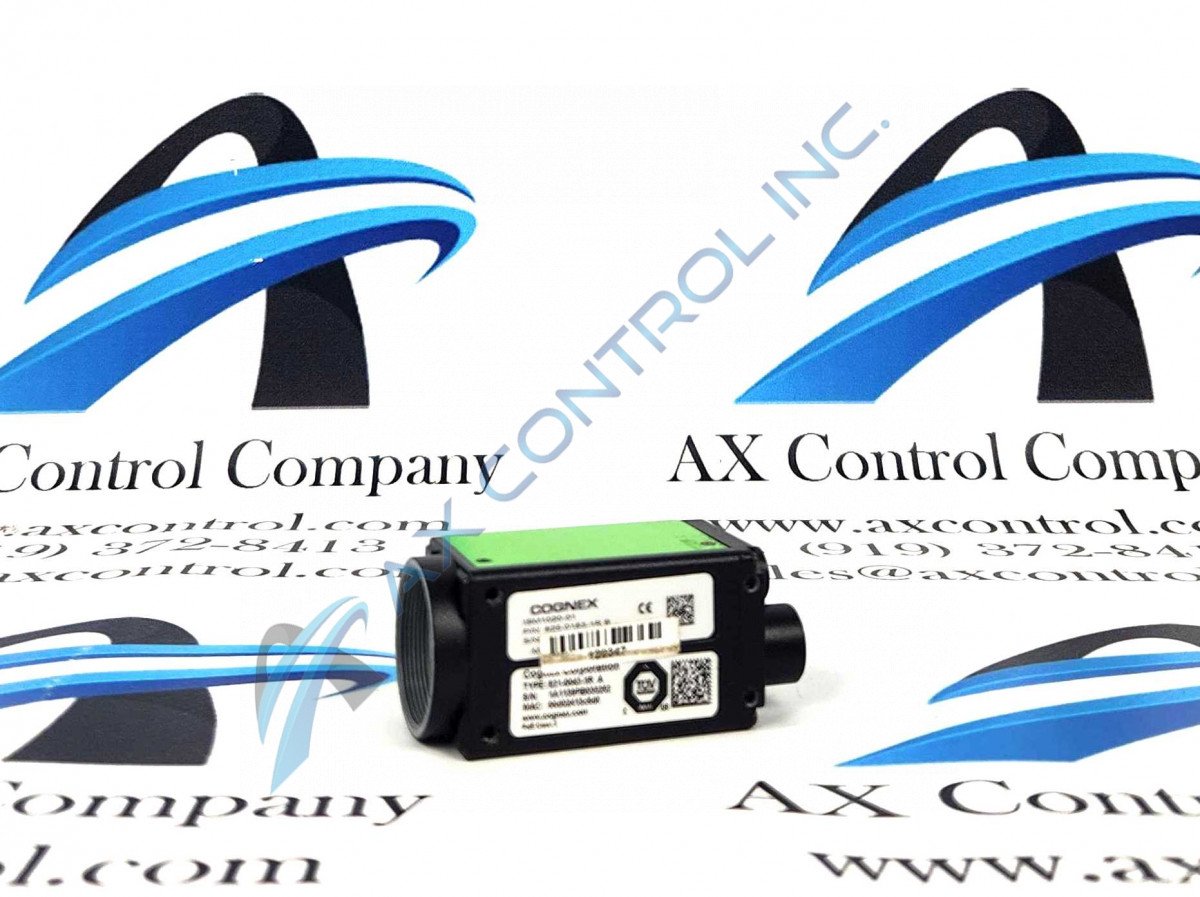

The ISM1020-01 Vision System is only equipped with a standard resolution of 640 x 480 pixels and only has the EasyBuilder User Interface. This system only has an acquisition rate of sixty frame rates per second.



Warranty: Learn More
Sell Surplus: Have a ISM1020-01 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: ISM1020-01
  • SKU: ISM102001CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight Micro Series Vision System

ISM1020-01 Technical Specifications

Cable Types Breakout, Ethernet, and I/O Module
Dimensions with Mounting Block W 1.18" x D 2.36" x H 1.50"
Memory Types SDRAM and Non-Volatile Flash Memory
Minimum Firmware Required In-Sight Version 4.4.3
Operating Humidity 90%, non-condensing
Sensor Type 1/3-Inch CCD
Series In-Sight Micro Series Vision System

Product Description

Model number ISM1020-01 was one of the original Cognex In-Sight Micro Vision Systems to be produced. During the operation of this model, it has the ability to perform several automated functions which include identification, inspection, robot guidance, and measurement. All of these automated functions can be performed on the factory floor and if connected to a network can be easily configured remotely through the network using the EasyBuilder user interface.

The standard components that come with the ISM1020-01 model are the vision system itself, the extension ring used in relation to the lens type, specifically the C-mount lens, and the mounting kit which includes the M3 screws. The vision system can provide job storage, vision processing, image acquisition, discrete input, and output options, and finally Ethernet connectivity. The image acquisitions that are associated with this model are full-frame integration, rapid reset, and progressive scan.

While this vision system only has a standard resolution it can still perform a wide range of functions. The ISM1020-01 model can handle some of the highest-speed manufacturing lines even though it has one of the smallest vision system footprints available. Note that the standard resolution associated with this model is in the range of six hundred and forty to four hundred and eighty pixels.

It is vital to note that the only tool set available with the ISM1020-01 model is the essential toolset which has quite a few features including but not limited to the findings of edge, curve, blob, and lines, as well as image filters. The remaining features can be found in the attached Cognex In-Sight Micro Vision System Data Sheet.

Frequently Asked Questions about ISM1020-01

What are the Ethernet cable length options for an In-Sight Cognex Vision System such as the ISM1020-01?
The Ethernet cables for the ISM1020-01 In-Sight Cognex vision system come in the following lengths options: 0.6 m, 2 m, 5 m, 10 m, 15 m, and 30 meters. The user has the option to select either a 45 degree key right angle Ethernet cable or a 135 degree key right angle cable excluding the 0.6 meter Ethernet cable which does not require specification on this front.
In order to accurately connect the In-Sight Cognex Vision System ISM1020-01 to an Ethernet cable, a LAN cable (RJ-45) connector must be used. First the user should insert the LAN cable into the LAN port of the I/O module and then connect the additional end to a PC, router, or switch depending on the specific connection needed for the system.
What is the breakout cable used for with the In-Sight Cognex Vision System ISM1020-01?
The breakout cable allows the user to gain access to the Cognex vision system's high-speed outputs and the trigger of the system. This cable has the option to be connected from theISM1020-01 to a strobe light, an external PCL, or a trigger sensor. This breakout cable comes in the lenghts of 0.6m, 2m, 5m, 10m and 15m.

Reviews For ISM1020-01

Internal Review

One major downside of owning the ISM1020-01 model is the lack of information, most of the information provided on this page is general information in relation to the In-Sight Micro Series and the ISM1020-00 vision system. - AX Control Technician
