ISM1020-00

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Cognex Vision System ISM1020-00 is one of the In-Sight Micro models. It is not available in a color model nor is it available in stainless steel. It is considered compact, network-ready, and stand-alone.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a ISM1020-00 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: ISM1020-00
  • SKU: ISM102000CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight Micro Series Vision System

ISM1020-00 Technical Specifications

Electronic Shutter Speed 16 ┬Ás to 1000 ms
Humidity 90%, non-condensing
Material Die-Cast Zinc Housing
Power Consumption 6.49 Watts
Power Type A and B
Program/Job Memory 128 MB Non-Volatile Flash Memory
Status LEDs 2 User-Configurable and Network
Trigger One Opto-Isolated Acquisition Trigger
Weight 5.15 oz. (146 g)

Product Description

Model ISM1020-00 is an In-Sight Cognex Vision System designed with factory work in mind. It can be configured remotely and is equipped with an efficient user interface. Some specifications for model ISM1020-00 include;

  • Options to connect an Ethernet cord.

  • A discrete I/O.

  • Job storage capabilities.

  • A mounting kit with M3 screws and an optional mounting block.

Users can also choose to use C-mount lenses with the product’s 5mm extension ring. A purchase of model ISM1020-00 does not include any cords that can be optionally connected to it. However, these cords can be found separately in various lengths. This In-Sight Cognex vision system is an ideal product for inspection capabilities, robot guidance, identification, and automation measurement that is done on the floor of factories.

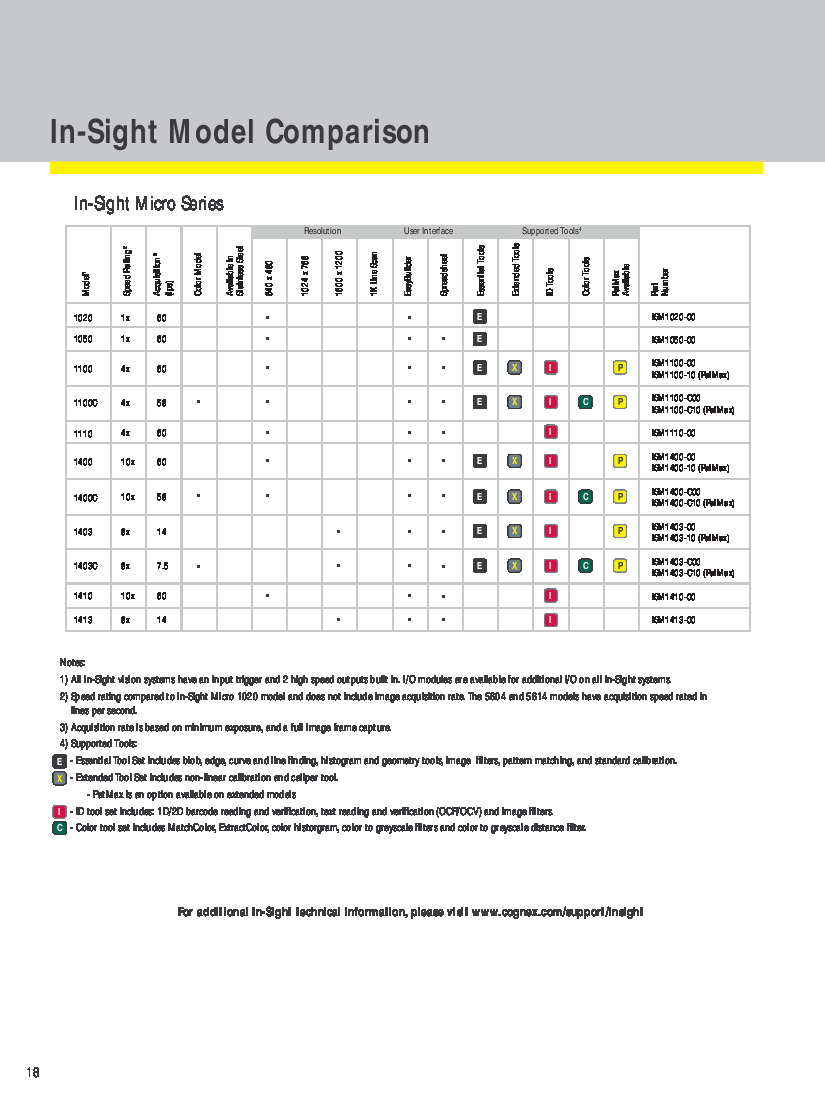

This model is considered one of the most basic In-Sight Vision Systems as it only has an essential toolset. The essential toolset has geometry tools, pattern matching, standard calibration, and many others. All of the features and their applications and advantages can be found in the In-Sight Vision Micro Vision System Product Guide attached above in the manual tab. The product guide describes a variety of the different features associated with this model and other models in the In-Sight Micro Series.

One upside of owning this model is that it is typically used for some of the most advanced speed manufacturing lines with a vision system that has one of the most minute footprints available.

Frequently Asked Questions about ISM1020-00

What is a ISM1020-00 Cognex Vision System?
The In-Sight Cognex vision system is used for automation measurement, identification, robot guidance, and inspection capabilities while on the factory grounds. An intuitive user interface provides all models with the capability of being configured remotely. The ISM1020-00 includes the standard components of a vision system that allows the operator the following features of vision processing, job storage capabilities, Ethernet connection capability, and a discrete I/O. The mounting kit for the In-Sight  ISM1020-00 Cognex Vision System comes with M3 screws to aid the user in mounting the unit. There is also an optional mounting block if desired for additional security to a mounting surface.
Are there any extension capabilities for the In-Sight Cognex ISM1020-00 vision system?
A standard feature of the In-Sight Cognex Vision Series is an extension ring. This 5mm extension ring is for use with C-mount lenses.
Does the ISM1020-00 come with cables to fit the unit?
The In-Sight Cognex vision system ISM1020-00 does not include cables, which are generally sold separately.  For example, the Ethernet cable which has a M12 connector and a RJ-45 connector can come in six unique lengths that the user can select for their specific on-sight purpose and location of the In-Sight Cognex vision system ISM1020-00.

Reviews For ISM1020-00

Internal Review
(5.0)

The ISM1020-00 model is one of the models that have a limited toolset but despite having the limited toolset it can perform in some of the fastest applications. - AX Control Tech Team

Repair Services For ISM1020-00

Type Lead Time Price Action
Repair Service 1-2 weeks $605

Our highly skilled technicians can repair your ISM1020-00. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
