Product Description

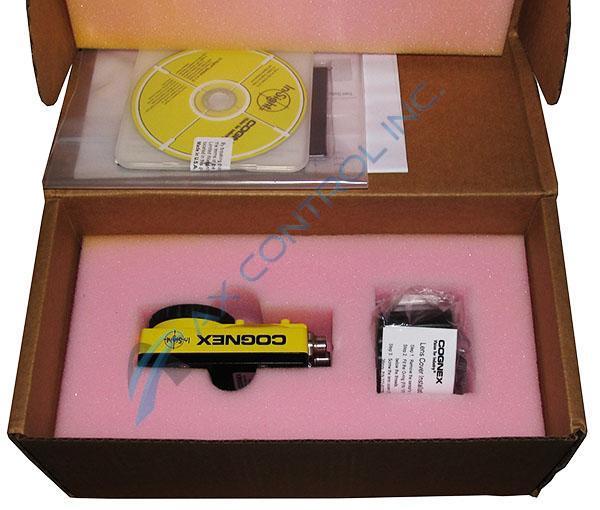

The image bit depth of the In-Sight ISS-5615-0000 Vision System is 256 grey levels (8 bits/pixel) at 16 full frames per second.
The minimum firmware requirement for the ISS-5615-0000 is In-Sight version 4.4.1.
Before you install the ISS-5615-0000, consider that the device power consumption is 24VDC ±10% at 500mA maximum.
The primary resource to verify the power state of the device is to view the Power LED. The device might have one or more states that are reflected by the Power LED.
-
When the Power LED is off, it means no power is available to the device. Or, a power source is not present.
-
When the Power LED turns Off and On rapidly, it might indicate the device is turned off and the device is preparing to be ready to be turned on. This last a few seconds after power is applied.
-
When the Power LED turns Off and On slowly, the device might be Off and is ready to be turned on again.
-
When the Power LED is on continuously, the device is on.
Two connectors are featured on the front of the ISS-5615-0000. One connector supports the breakout cable. It is an 8-pin cable. The breakout cable carries communication signals (serial and high-speed outputs) and electrical power (24VDC). The Ethernet connector is also available. Use it to connect to a network device. It is a 8-pin cable and it uses the standard industrial specifications.
Two LEDs are available for the site to configure as needed (User 1 LED and User 0 LED).
