The IS5613-00 model is one of the vision systems produced by Cognex. This model is part of the In-Sight 5000 series. It has a 1/1.8-inch CCD sensor. The maximum resolution available on the IS5613-00 model is 1600 x 1200 pixels.



Sell Surplus: Have a IS5613-00 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS5613-00
  • SKU: IS561300CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight 5000

IS5613-00 Technical Specifications

Part Number IS5613-00
Series In-Sight 5000 Vision System
Manufacturer Cognex Vision
Electronic Shutter Speed 27 microseconds to 1000 millisecons
Lens Type C-Mount
Number of Status LEDs 5; 2 User-Configurable, Power, Network Traffic, and Network Status

Product Description

IS5613-00 is a high-performance fixed-mount identification (ID) reader. Developed by Cognex for the In-Sight 5000 series, this ID reader can read and verify both text and 1- and 2- dimensional barcodes. This model features advanced OCR/OCV tools that provide text reading and verification capabilities. The IDMax software is integrated into this system, a barcode reading program derived from the Cognex PatMax software. IDMax reads codes and text in real-time, consistent with the device’s ability to parallel high-speed production lines. Codes are read at a rate of 7200 ppm with this unit. Factoring in all aspects of the device’s operations, the IS5613-00 measures a 20 times speed rating.

As a high-performance model, IS5613-00 features a 1 GHz processor to run the Cognex tool library efficiently. Included in the tool library are all identification tools available to the device, including image filters, text verification, and barcode reading. When images are captured with the model, the 256 MB of image processing memory renders each image in a 1600 x 1200 resolution. A flash storage cache of 128 MB provides memory space for user-selected jobs and programs. Interfacing with networks and external I/O modules is possible as the device features an Ethernet port, a 10/100/1000 BaseT protocol, and an RS232C connection.

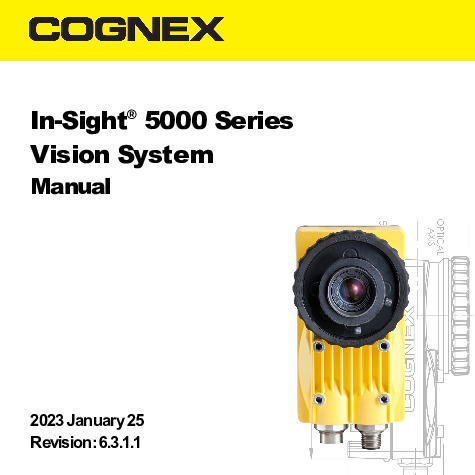

Device installation and storage parameters should be followed to maintain the integrity of IS5613-00. Containing temperature-sensitive pieces, this unit should be housed in a climate-controlled facility. These restrictions dictate that ambient operating temperatures should range no lower than 0°C (32°F) and no higher than 45°C (113°F). A complete installation guide is available in the In-Sight 5000 series manual and the device datasheet.


Frequently Asked Questions about IS5613-00

What type of module is the IS5613-00 unit?

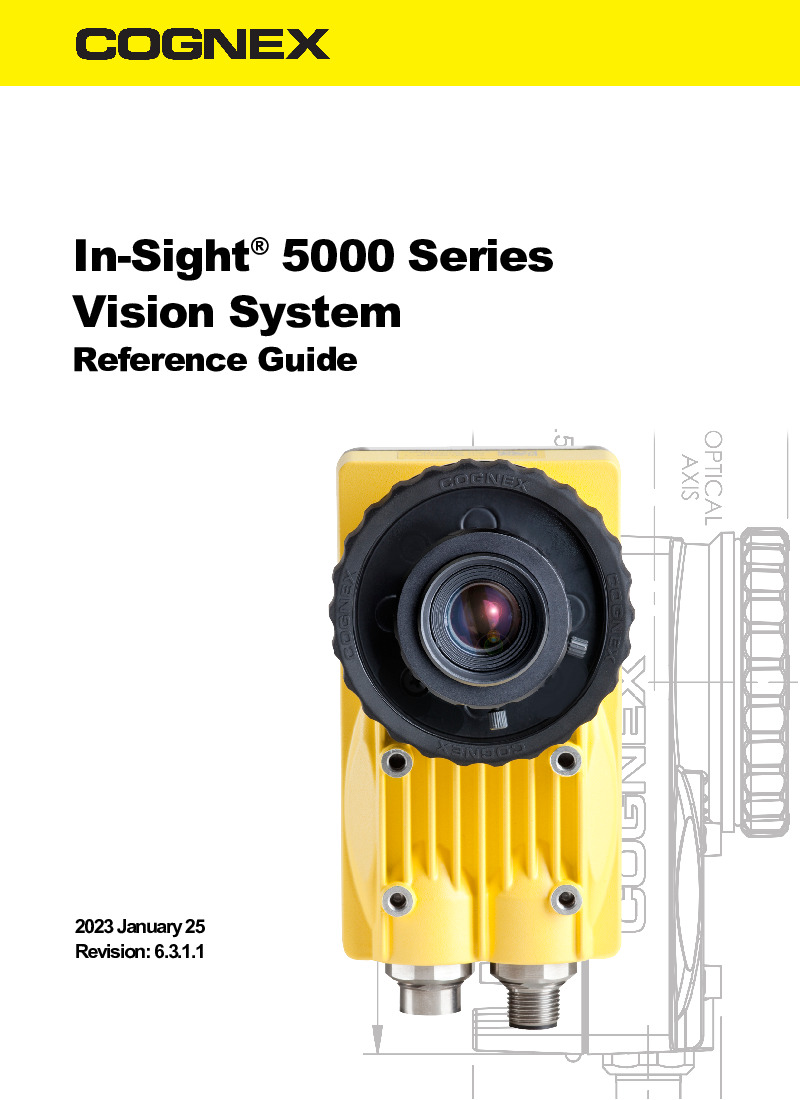

The IS5613-00 model is a vision system. As a vision system, it is a stand-alone machine that can be used on the factory floor. When this model is used directly on the factory floor, it can perform identification, measurement, inspection, and robot guidance applications. The IS5613-00 model can also be configured over a remote network when using the IS5613-00 unit with an intuitive user interface. This model has a 50 mm lens cover kit, a thread guard, and a mounting screw kit. For installation procedures, refer to the attached reference guide.

What does the vision system do?

This vision system can provide vision processing, job storage, Ethernet and serial connectivity, discrete inputs and outputs, and image acquisition. The IS5613-00 model supports up to 128 MB of non-volatile memory with unlimited storage when using a remote network device. The serial communication connectivity on this model is an RS-232C port which allows for I/O module compatibility.

Reviews For IS5613-00

Internal Review

While some of the In-Sight models can feature firmware that is 5.1.0 or higher, this feature is not available on the IS5613-00 model. As this model cannot support that firmware requirement, it is unlikely that the IS5613-00 model can support the 1588 feature for timestamp resolution. For more information about the features that are supported on the IS5613-00 model, refer to the attached reference guide. - AX Control Tech

Repair Services For IS5613-00

Type Lead Time Price Action
Repair Service 1-2 weeks $1620

Our highly skilled technicians can repair your IS5613-00. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
