The IS5410-10 model is part of the In-Sight 5000 series produced by Cognex. The minimum firmware required to run the system is In-Sight version 4.4.3. The IS5410-10 model has a maximum resolution of 640 x 480 pixels and an electronic shutter speed of sixteen microseconds to 1000 milliseconds.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS5410-10 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS5410-10
  • SKU: IS541010CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight 5000

IS5410-10 Technical Specifications

Part Number IS5410-10
Series In-Sight 5000
Manufacturer Cognex Corporation, Natick MA
Sensor Type 1/3-Inch CCD
Bit Depth 256 Grey Levels (8 bits/pixel)
Protection Type IP67

Product Description

This device belongs to one of the several Cognex series of devices from Cognex Vision Machines. These units are designed with a similar physical aesthetic, with a primarily Cognex yellow body accented with black. The IS5410-10 is outfitted with numerous similar specifications to the majority of In-Sight 5000 modules. The firmware installed into the unit’s system is the 4.4.3 version. The In-Sight 5000 units are designed with a memory capacity that can hold 128 megabytes of non-volatile flash memory and an image processing memory of 256 megabytes.

The IS5410-10 is outfitted with a C-mount to attach a lens to its frame, which includes a clear lens cover. The standard In-Sight 5000 dimensions apply to this unit: 43.5 mm x 124.2 mm x 61.4 mm. Though, with the lens cover equipped, the dimensions become 83.4 mm x124.2 mm x 61.4 mm. This unit weighs approximately 350 grams. Its frame is composed of a die-cast aluminum frame which is rated with a grade of IP-67.

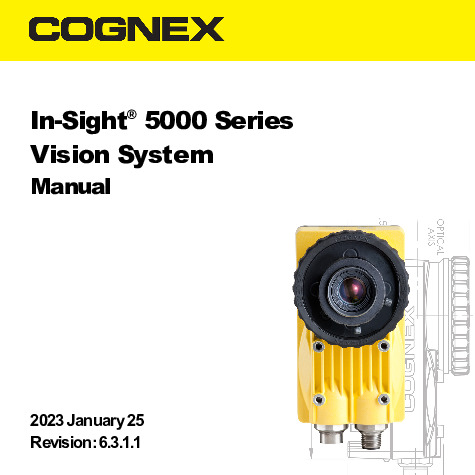

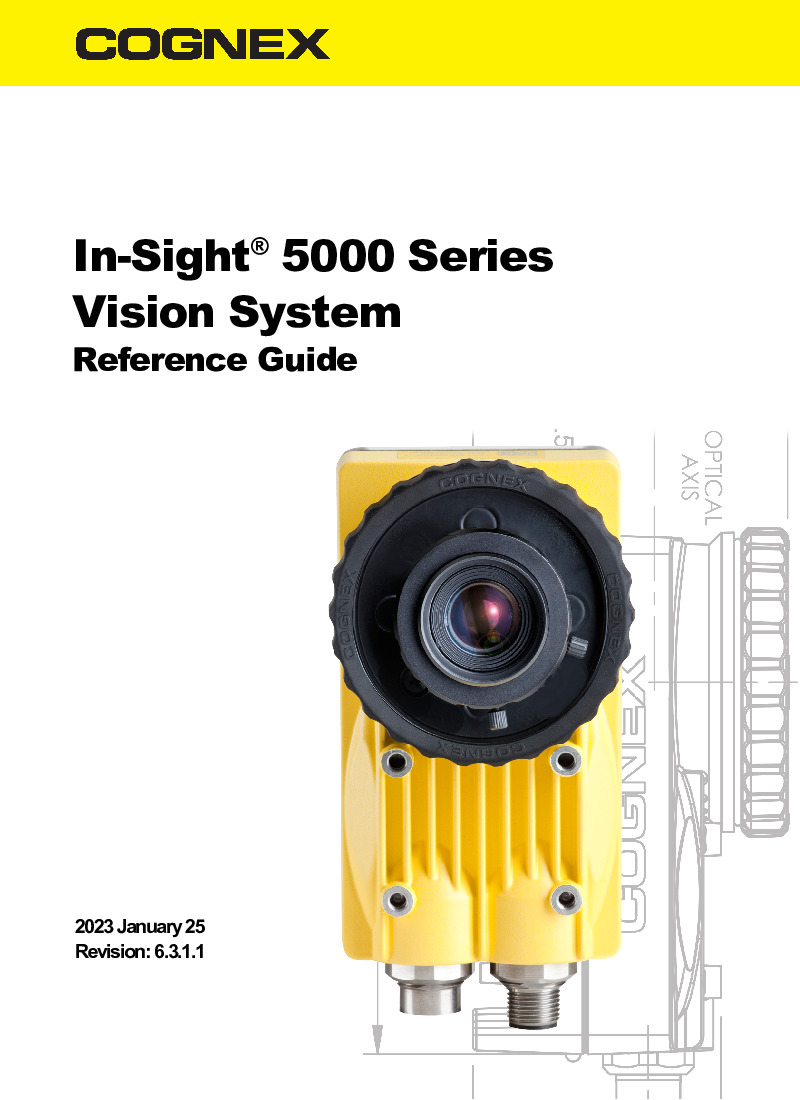

The IS5410-10 captures images at a rate of 60 frames per second and has an image resolution of 640 x 480 pixels. The bit depth that is rendered is 256 gray levels, at 8 bits per pixel. The sensor module within this unit is a 1/3-inch CCD unit. All of the available technical information can be found in the In-Sight 5000 Series Vision System Reference Guide.

There are network and serial communications available on the IS5410-10 model. The network communication type for this model is an Ethernet port. The Ethernet port on this model is a 10/100/1000 Base T type with auto MDIX. This connection supports DHCP and static/link-local IP address configuration. For the serial communication types, also refer to the In-Sight 5000 series Vision System Reference Guide.

Frequently Asked Questions about IS5410-10

Does the IS5410-10 model support the 1588 feature?

The 1588 support in the In-Sight 5000 series can only be used with models that support firmware version 4.5.0 or later because the minimum firmware of the IS5410-10 model is 4.4.3; it can be assumed that the model can support the 1588 models. As the model can potentially support the 1588 feature, the timestamp resolution of 8 nanoseconds and the synchronization accuracy through the transparent clock is five microseconds. For more information on some of the supported features of the IS5410-10 model, refer to the attached manuals.

What I/O modules can be used with this vision system?

Three I/O modules can be used with the IS5410-10 unit. The three I/O modules are labeled CIO-1400, CIO-MICRO, and CIO-MICRO-CC. The CIO-MICRO and CIO-MICRO modules have eight general inputs and eight general outputs with two high-speed outputs. The CIO-1400 modules have seven inputs with six general and two high-speed outputs. For information on how the I/O modules will connect to the vision system itself look for installation procedures in the reference guide.

Reviews For IS5410-10

Internal Review
(4.0)

One of the downsides of the IS5410-10 model is its size; this model is larger than some of the other In-Sight 5000 models. Due to the size of the model, it can be difficult to navigate within the chosen application. For a smaller model, research the other available In-Sight 5000 models from Cognex. - AX Control Tech
