In-Sight IS5410-01 Vision System

IS5410-01

  • {{ avg.toFixed(1) + ' (' + ratingCount + ')' }}
  • {{ message }}
In-Sight IS5410-01 Vision System

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a IS5410-01 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The image bit depth of the In-Sight IS5410-01 Vision System is 256 grey levels (8 bits/pixel) at 60 full frames per second.The minimum firmware requirement for the IS5410-01 is In-Sight version 4.4.3.



Installation of the device is comprised of several actions as explained below.

Lens installation on the device.



  1. Connecting the Ethernet cable to the device and the network.

  2. Breakout cable: One connector is available on the device for the breakout cable. Also connect the other end as needed.

  3. The In-Sight Explorer software provides the means to configure the device. Install the software and prepare to setup the device.

The IS5410-01 contains 128MB non-volatile flash memory and unlimited storage through a remote network device.



Flash memory is provide on the device. 128MB of flash memory comes on the device. You can connect to a storage device through a network and have access to all the memory the device contains. Possibly, you can add storage to increase the memory available to the device.

The image processing memory is 256 MB. The resolution is 640x480. The sensor type is ⅓-inch CCD. The weight is 350 g (12.3 oz.) with the lens cover installed and without the lens. The IS5410-01 is surrounded in a die-cast aluminum housing.



The operating temperature of the IS5410-01 is 0°C to 45°C (32°F to 113°F). The operating  humidity is 95%, non-condensing (operating and storage).

The Ingress Protection rating is IP67 (with cover for the lens). The vibration rating is 10 G from 10-500 Hz with 150 gram lens per IEC 68-2-6. This applies to conditions when the device is being shipped or stored. The shock rating is 80 G shock with 150 gram lens attached per IEC 68-2-27. This applies to conditions when the device is being shipped or stored.



The size of the device with the lens installed is described in the next list.

Width: 83.2mm (3.27in)



  • Height: 124.1mm (4.88in)

  • Depth:  61.3mm (2.41n)

The size without the lens cover installed,is described next.



  • Width: 43.0mm (1.70in)

  • Height: 124.0mm (4.80in)

  • Depth: 61.0mm (2.40in)

Before you install the IS5410-01, consider that the device power consumption is 24VDC ±10%, 500mA maximum.








IS5410-01 Technical Specifications

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty.
All PLCs and HMIs: 3 years
All AC/DC and Servo Drives: 2 years
All Motors: 1 year
Learn More

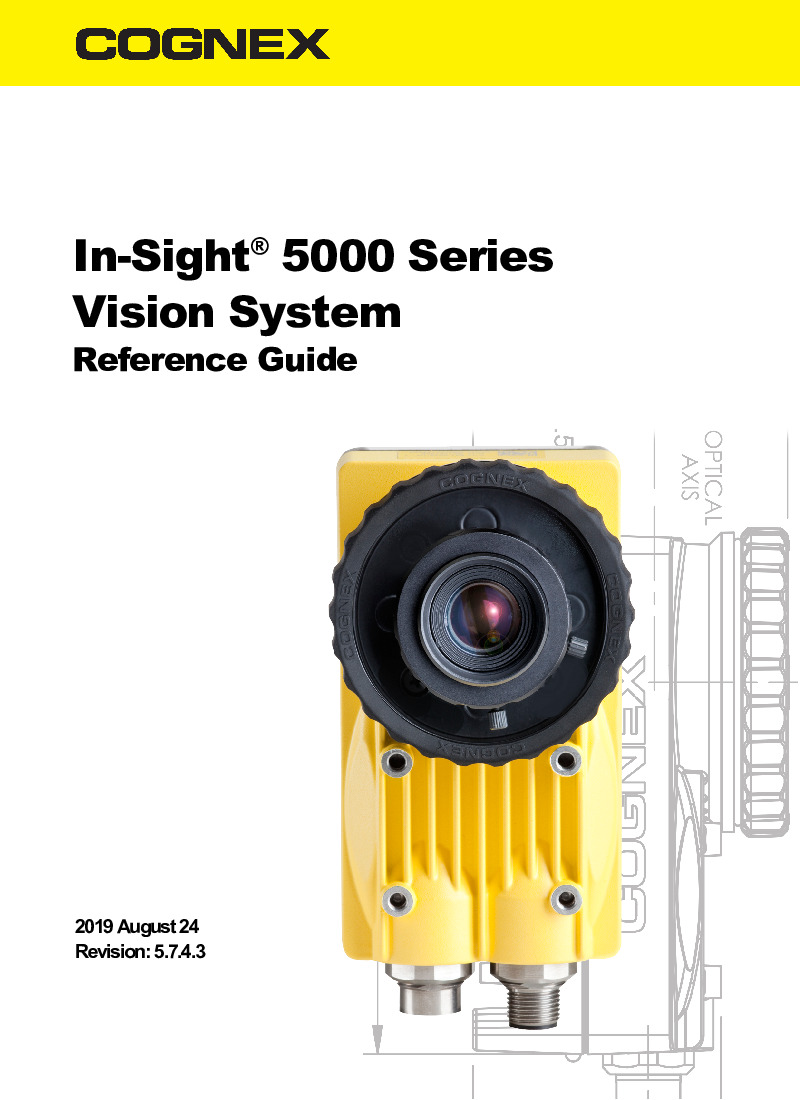

IS5410-01 Manuals, White Papers, Data Sheets, and Troubleshooting
