IS5403-S11

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.63 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.63 (8)
  • Click a star to rate this product
The IS5403-S11 model is part of the In-Sight 5000 vision system produced by Cognex Vision. This model has a 1/1.8-inch CCD sensor with 1600 x 1200 pixels. The IS5403-S11 model has a bit depth of 8 bits/pixel or 256 grey levels.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS5403-S11 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS5403-S11
  • SKU: IS5403S11CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight 5000

IS5403-S11 Technical Specifications

Part Number IS5403-S11
Series In-Sight 5000 Vision System
Manufacturer Cognex Vision Corporation, Natick MA
Lens Type C-Mount
Serial Communication RS-232C, when connected to a Breakout Cable
Dimensions without Lens Cover Installed 1.71" x 4.89" x 2.42"
Weight without Lens Cover Installed 32.0 oz or 907 grams
Electronic Shutter Speed 27 microseconds to 1000 millisecons

About the IS5403-S11

The IS5403-S11 model is part of the Cognex Vision In-Sight 5000 vision system series, primarily used for several functions, such as identification, measurement, automated inspection, and robot guidance applications right on the factory floor. The IS5403-S11 model can be configured over a network remotely over an intuitive user interface.

The image bit depth of the In-Sight IS5403-S11 Vision System is 256 grey levels (8 bits/pixel) at 14 full frames per second. The minimum firmware requirement for the IS5410-01 is In-Sight version 4.4.3. Installation of the device is comprised of several steps explained below:

  1. Connecting the Ethernet cable to the device and the network.

  2. Breakout cable: One connector is available on the device for the breakout cable; connect the other end as needed.

  3. The In-Sight Explorer software provides the means to configure the device. Install the software and prepare to set up the device.

There are two memory types on the IS5403-S11 model which are image processing memory and job/program memory. The job/program memory on the IS5403-S11 model is 32MB of non-volatile flash memory. One of the special features of the job/program memory function is that so long as it is connected to a remote network device it has unlimited memory storage. You can connect to a storage device through a network and access all the memory the device contains.

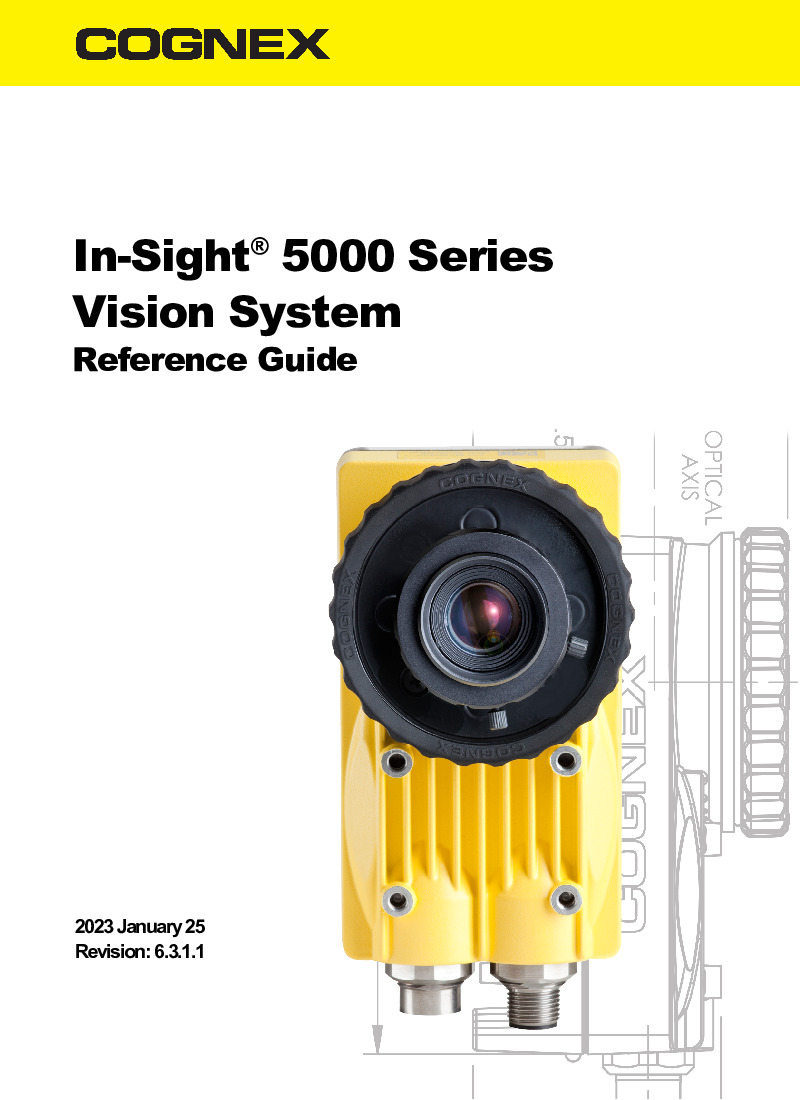

For more information regarding the other features of the IS5403-S11 model can be found in two manuals, the In-Sight 5000 Series Vision System Reference Guide and the In-Sight 5000 Series Vision System Manual. Both of the manuals are useful when operating the IS5403-S11 model; if needing information on the technical specifications of the unit use the reference guide.

Frequently Asked Questions about IS5403-S11

There are standard In-Sight 5403 models, and then there is the IS5403-S11 model; what are the differences, if any, between the two?

One of the main differences between the two models is the lens cover kit. The lens cover kit on a standard IS5403 model is the typical 50 mm lens cover kit. The lens cover kit on the IS5403-S11 model is an IP68 lens cover kit. Another difference is the housing type, the housing type on a typical IS5403 model is die-cast aluminum, and the IS5403-S11 model is made of stainless steel and is thus heavier than the standard IS5403 models. The memory amounts between the two models also differ; the standard memory amount for In-Sight 5000 models, in general, is 128 MB or 256 MB; the memory amount for the IS5403-S11 model is 32 MB for job/program memory and 64 MB for image processing memory.

How many LEDs are there on the IS5403-S11?

There are five LEDs available on the IS5403-S11 model. There are the power, network status, and network traffic LEDs, which are indicators of data detection and power detection. The remaining LEDs are user 1 and user 0, these two LEDs are user-configurable and differ only in color; user 1 LED is green when active, while user 0 LED is red when active.

Reviews For IS5403-S11

Internal Review
(4.0)

While the IS5403-S11 model has a higher resolution than some of the other In-Sight 5000 models, the frame rate is affected and is lower than other units. The lower frame rate will affect the picture and how it comes out. The frame rate on this model is fourteen full frames per second. If wishing for a model that has a higher frame rate note, that the resolution of the system could be affected. - AX Control Tech

Repair Services For IS5403-S11

Type Lead Time Price Action
Repair Service 1-2 weeks $1427

Our highly skilled technicians can repair your IS5403-S11. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
