IS5403-10

Product Description

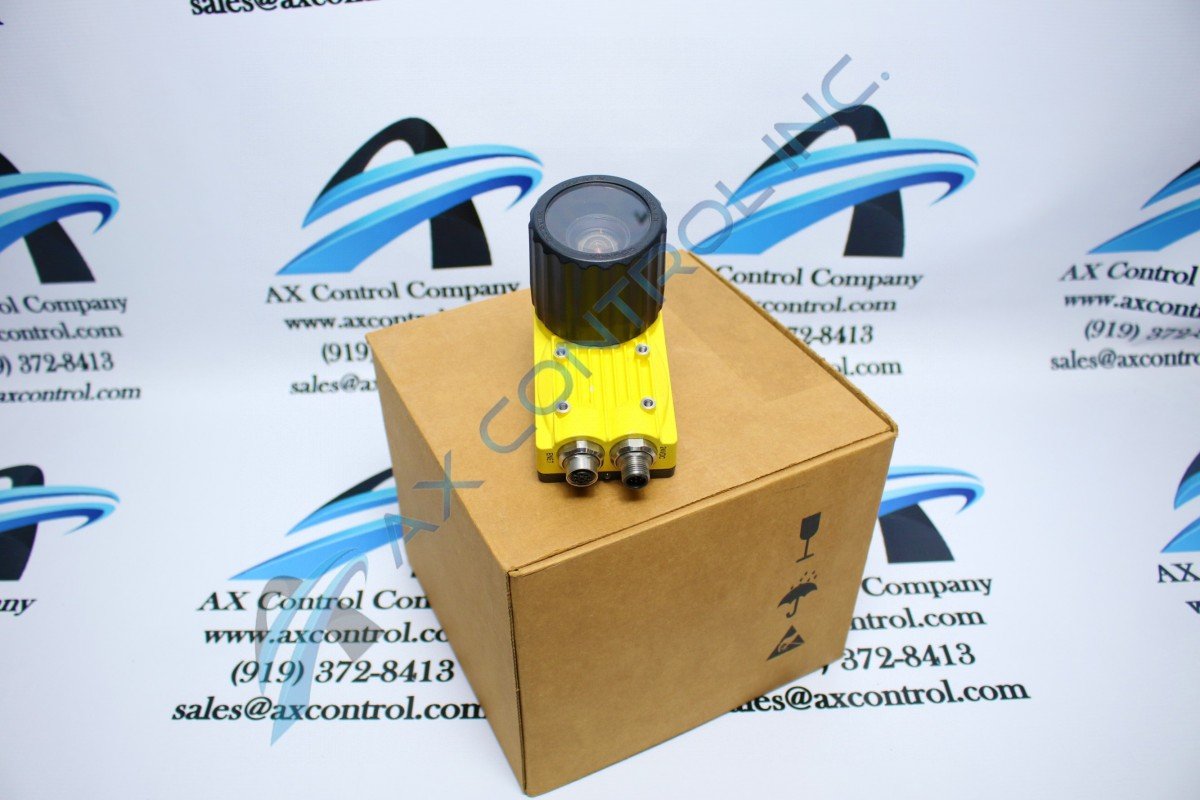

The In-Sight IS5403-10 Vision System features one 10/100 BaseT Ethernet port with an RJ-45 connector and one RS-232C port for serial communications.

The breakout cable is used with the device for serial signals, power supply, trigger signals, output signals. The white/green wire provides power. Green provides a trigger signal (+). White/orange provides a trigger signa (-)l. Blue provides a high-speed output signal (0). White/blue provides a high-speed output signal (1). Orange provides a serial signal (receive). White/brown provides a serial signal (transmit). Brown provides a ground.

24VDC ±10% power at 500mA is the power that must be available at the site of installation.

The In-Sight IS5403-10 Vision System features Power, Network Status, and Network Traffic indicator LEDs. It also contains two user-configurable indicator LEDs.

The IS5403-10 contains 128MB non-volatile flash memory and unlimited storage through a remote network device. The image processing memory is 256 MB. The resolution is 1600x1200. The sensor type is 1/1.8-inch CCD. The weight is 350 g (12.3 oz.) with the lens cover installed and without the lens. The IS5403-10 features a die-cast aluminum housing.

The image bit depth of the In-Sight IS5403-10 Vision System is 256 grey levels (8 bits/pixel) at 14 full frames per second.

The minimum level firmware you need for the IS5403-10 is 4.4.3.  First, check the firmware level on the device. Then refer to the web site and search from a newer firmware version. If appropriate, download it and install it on the device. Always use the newest firmware to have the latest fixes and access to improved reliability.
