IS5100-11

4.60 (10)
Click a star to rate this product

4.60 (10)
Click a star to rate this product

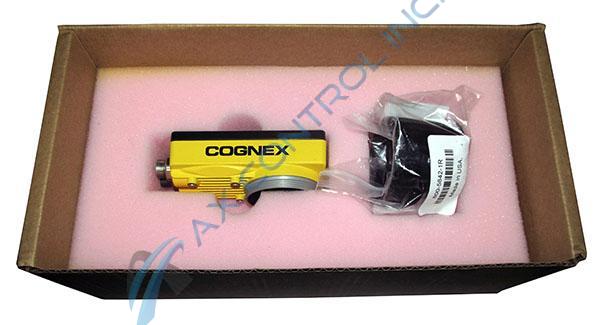

The IS5100-11 Insight Vision System w/ Patmax made for Cognex's In-Sight 5000 Series

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS5100-11 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS5100-11
SKU: CV-5168

Manufacturer: Cognex Vision
Series: In-Sight 5000

Description
Repairs
Warranty
Manuals

About the IS5100-11

The image acquisition of the In-Sight IS5100-11 Vision System is 256 grey levels (8 bits/pixel) at 60 full frames per second. The operating temperature of the IS5100-11 is 0°C to 45°C (32°F to 113°F). The operating humidity is 95%, non-condensing (operating and storage). The Ingress Protection rating is IP67 (with appropriate lens cover installed). The vibration rating (shipping and storage) is 10 G from 10-510 Hz with 150 gram lens per IEC 68-2-6. The shock rating (shipping and storage) is 80 G shock with 150 gram lens attached per IEC 68-2-27.

The IS5100-11 contains 32MB non-volatile flash memory and unlimited storage through a remote network device. The image processing is 64 MB. The resolution is 640x480. The sensor is ⅓-inch CCD. The weight is 350 g (12.3 oz.) with the lens cover installed and without the lens.

The IS5100-11 is surrounded in a die-cast aluminum housing. With the lens installed, the dimensions are 83.3mm (3.28in) x 123.2mm (4.85in) x 61.4mm (2.42in). Without the lens cover installed, the dimensions are 43.5mm (1.71in) x 123.2mm (4.85in) x 61.4mm (2.42in) including the thread guard.

Frequently Asked Questions about IS5100-11

How can I install this unit?

To install the In-Sight IS5100-11 Vision System, you must install the lens, connect the Ethernet cable, connect the breakout cable, install the In-Sight Explorer software on a networked laptop, or other device, and log on to the Vision System.

What is the IS5100-11's minimum firmware requirement?

The minimum firmware requirement for the IS5100-11 is In-Sight version 2.80.01 PR1.

Reviews For IS5100-11

Internal Review

(5.0)

Before you install the IS5100-11, consider that the device must be supplied with a 24VDC output rated for at least 600 mA continuous and a maximum short circuit current rating of less than 8A and a maximum power rating of less than 100VA and marked Class 2 or Limited Power Source (LPS). The power source must be UL or NRTL listed. - AX Control Lead Technician

Repair Services For IS5100-11

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1284

Our highly skilled technicians can repair your IS5100-11. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More

IS5100-11 Manuals, White Papers, Data Sheets, and Troubleshooting

is5000.pdf
is5000.pdf
