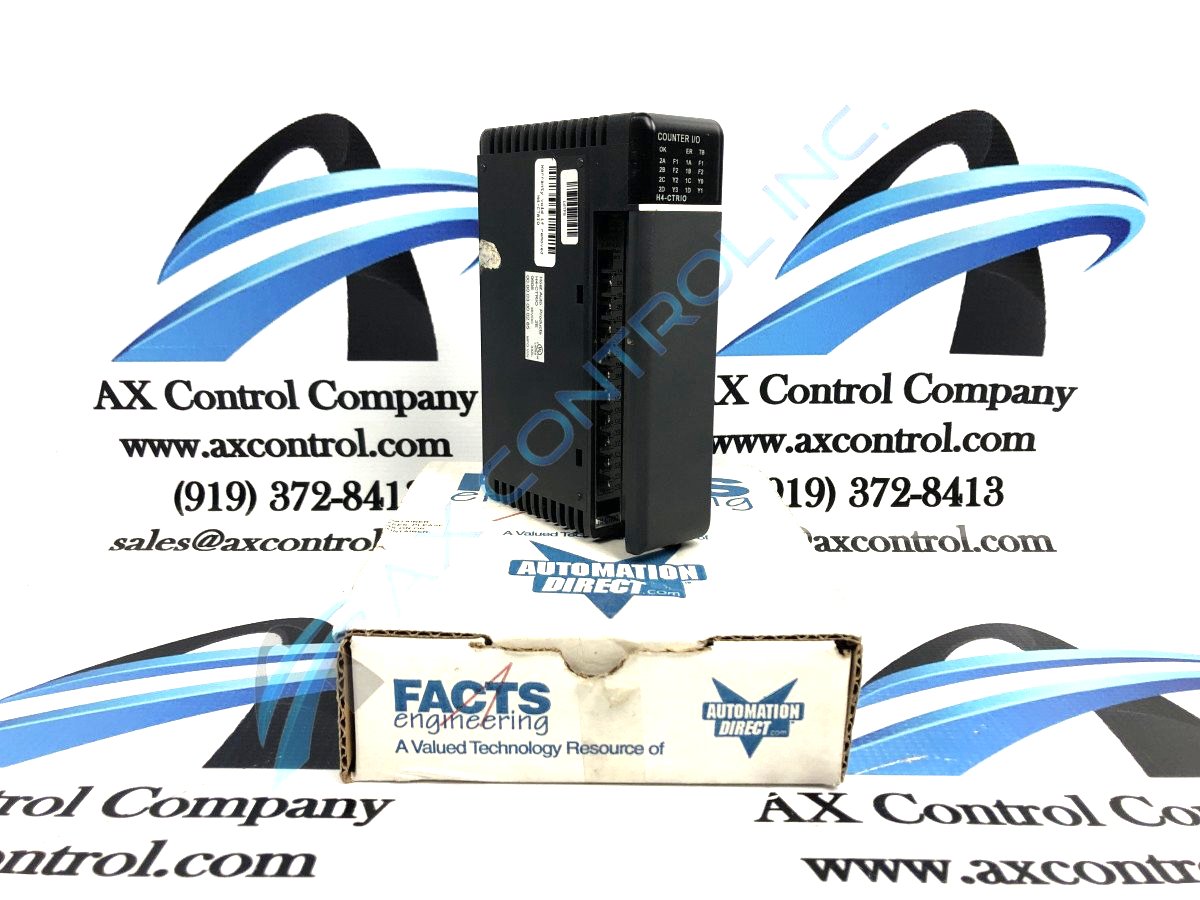

The outputs of the H4-CTRIO High Speed Counter Interface features 4 output points, individually isolated, current sourcing (or sinking) FET outputs. The maximum load current is 1 A per point. The pulse output control range is 20 Hz to 25 Hz.
The H0-CTRIO features LED indicators on the front of the device.
OK Operation OK.
ER Error occurred in program.
TB Terminal block missing.
1A - 1D Channel 1A - Channel 1D Input Status.
2A - 2D Channel 2A - Channel 2D Input Status.
(Ch1) F1 - F2 Channel 1 Resource State.
(Ch2) F1 - F2 Channel 2 Resource State.
Y0 - Y3 Output Status.
From 32℉ and 140℉ (0℃ to 60℃) is the operating temperature. The H4-CTRIO provides 2500 V I/O-to-logic isolation, 1000 V among input channels and all outputs. The H4-CTRIO High Speed Counter Interface features 8 DC sink/source inputs at 100 kHz maximum.
Use the Workbench tool to configure the H4-CTRIO while in RUN mode. Use the H4-CTRIO Workbench to configure the points, map the CPU to memory, and configure other functions Before starting the program, you must map the memory.
