Product Description

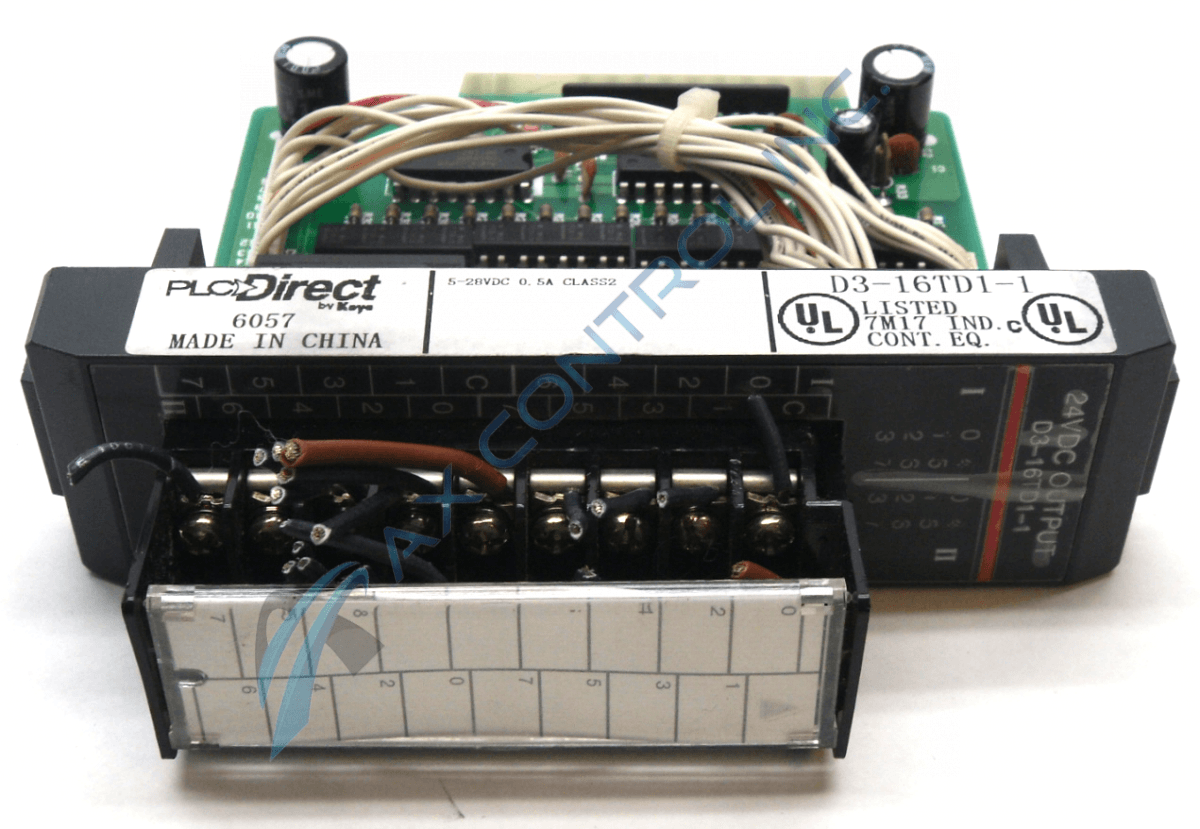

Automation Direct's 16 Point, 2 Common DC Powered Output Module is a product worked on by Koyo and PLC Direct. The 16 output points of the module are current sinking points. There are 2 commons on the module, this means for every 8 points there is an internally connected output common. The output type of the module is an open collector NPN transistor. The module fits into an Automation Direct base and it weighs 5.6 ounces. For proper use of the device, the ambient temperature stays between 0 to 60 degrees Celsius. The module has a storage temperature that falls between -20 and 70 degrees Celsius. The terminal is removable and that gives the module the ability of remote use. There is a logic side status indicator that allows the user to get notified of the issues within the system.

The 16 Point, 2 Common DC Powered Output Module has a operating voltage that ranges from 5 to 24 VDC. The input voltage for the device peaks at 45 VDC. The max current is .5 amps per point and 2 amps per common. The maximum leakage current is .1 mA at 40 VDC. The ON voltage drop is 2 volts and the minimum load is 1 mA.

The inrush current reaches a max of 3 amps for every 20 milliseconds and 1 amp for every 100 milliseconds. The off to on and on to off response for the device has a .1 millisecond limit. There are two fuses on the device and they are non-replaceable. These fuses are connected to the logic side status indicators and notify the user of problems.

The searchable product number of the 16 Point, 2 Common DC Powered Output Module is D3-16TD1-1. The product number of the instruction booklet is the D3-USER-M manual. Call us now to get pricing quotes and information about our warranties.
