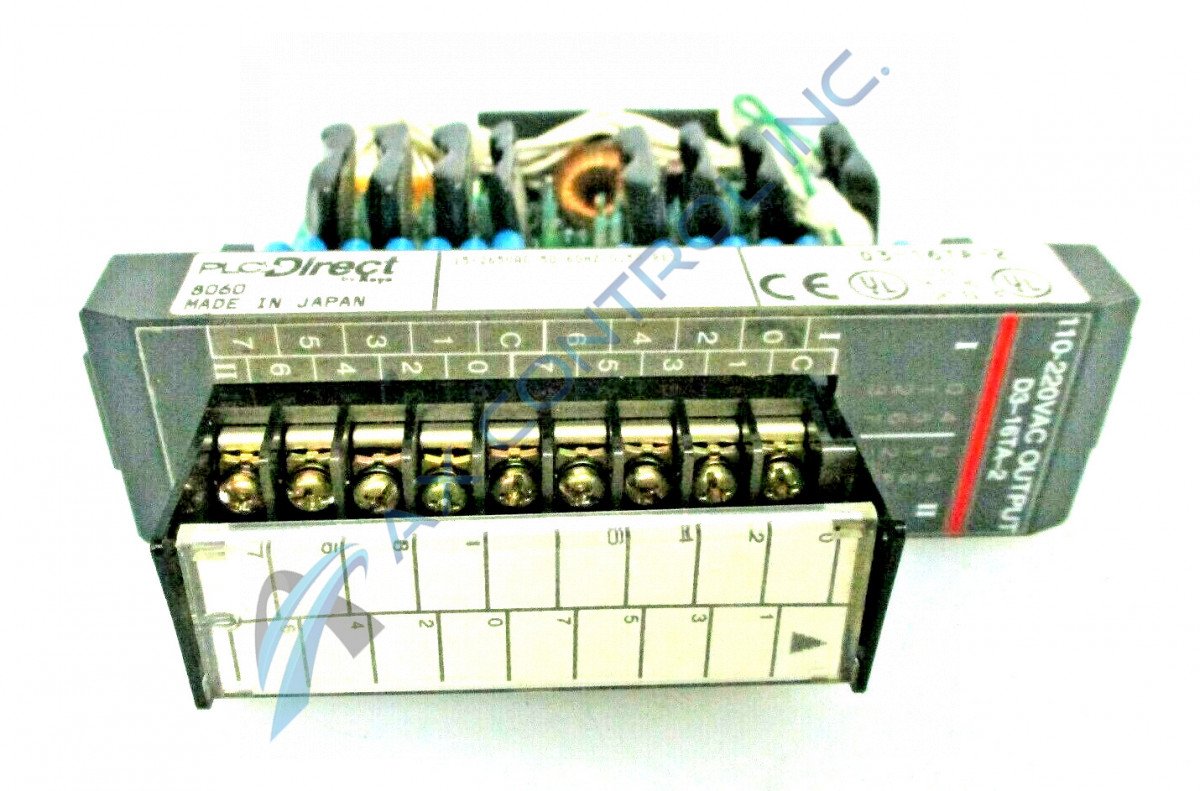

16 Point, 2 Common AC Powered Output Module

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a D3-16TA-2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-16TA-2
  • SKU: D316TA2AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

D3-16TA-2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (5)
  • Click a star to rate this product
16 Point, 2 Common AC Powered Output Module

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a D3-16TA-2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-16TA-2
  • SKU: D316TA2AD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

Product Description

Automation Direct's 16 Point, 2 Common AC Powered Output Module is a commissioned product manufactured by Koyo and PLC Direct. For every 8 points on the device, there is an isolated output common. The output type for the module is triac. The device weighs 7.2 ounces. There is a removable terminal that gives the module the ability of remote use. There is a logic side status indicator that allows the user to get notified of the issues within the system.

The operating voltage of the 16 Point, 2 Common AC Powered Output Module ranges from 15 to 165 VAC. The peak input voltage of the device is 265 VAC. The greatest current is 5 amps per point, 3 amps per common, and 6 amps per module. The maximum leakage current is 4 mA at 265 VAC. The minimum load is 10 mA at 15 VAC. The AC Frequency of the device volleys between 47 and 63 hertz.

The maximum inrush current is 10 amps for every 10 milliseconds and 5 amps for every 100 milliseconds. The off/on response for the device has a 1 millisecond limit. The on/off response of the module is 9 millisecond peak. There are also two non-replaceable fuses within the system. These fuses are connected to the logic side status indicators and notify the user of problems.

The searchable product number of the 16 Point, 2 Common AC Powered Output Module is D3-16TA-2. The product number of the instruction booklet is the D3-USER-M manual. Call us now to get pricing quotes and information about our warranties.

Repair Services For D3-16TA-2

Type Lead Time Price Action
Repair Service 1-2 weeks $188

Our highly skilled technicians can repair your D3-16TA-2. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
