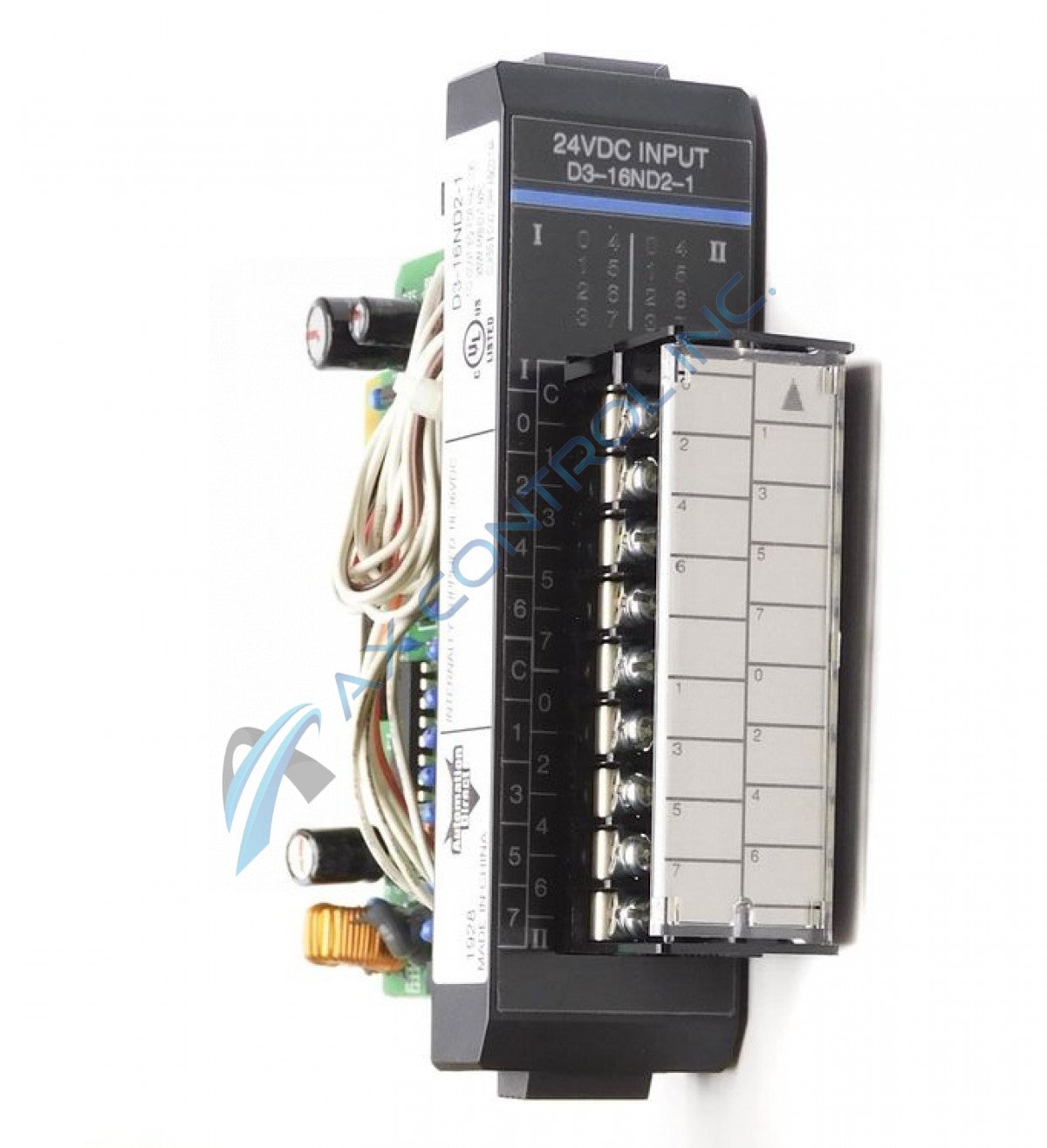

The D3-16ND2-1 unit is a DC input module that was designed and produced by AutomationDirect to be compatible with the DirectLOGIC 305 systems. The D3-16ND2-1 input module can typically be found within AX Control’s stock. If you are interested in obtaining the D3-16ND2-1 input module, be sure to give us a call or send us an email any time between 8:00 a.m. and 5:00 p.m. on business days. Our sales representatives are here to help you make your facility the best it can be.
The D3-16ND2-1 input module has 16 currently sourcing inputs and 2 internally connected commons. The input voltage is internally supplied with a range between 18 and 36 VDC and the peak voltage is set to 36 VDC. When the D3-16ND2-1 input module is set to ON, the voltage level is >19 Volts. When the D3-16ND2-1 input module is set to OFF, the voltage level is <3 Volts. The input impedance is set to 1.8 kiloOhms and the maximum input current is set to 20 mA. The D3-16ND2-1 input module is furnished with removable terminals and field side status indicators.
When you are ready to begin the installation process of the D3-16ND2-1 input module, be sure that you are able to accommodate the base power that is required to operate the D3-16ND2-1 input module. This particular module requires 9 Volts, 25 mA of power at maximum.
The D3-16ND2-1 input module has a total weight of about 0.39 lbs. or 0.18 kg. This total does not count any of our packaging materials.
