D3-10BDC 20.5-30VDC I/O Base

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-10BDC to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

D3-10BDC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
D3-10BDC 20.5-30VDC I/O Base

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-10BDC to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

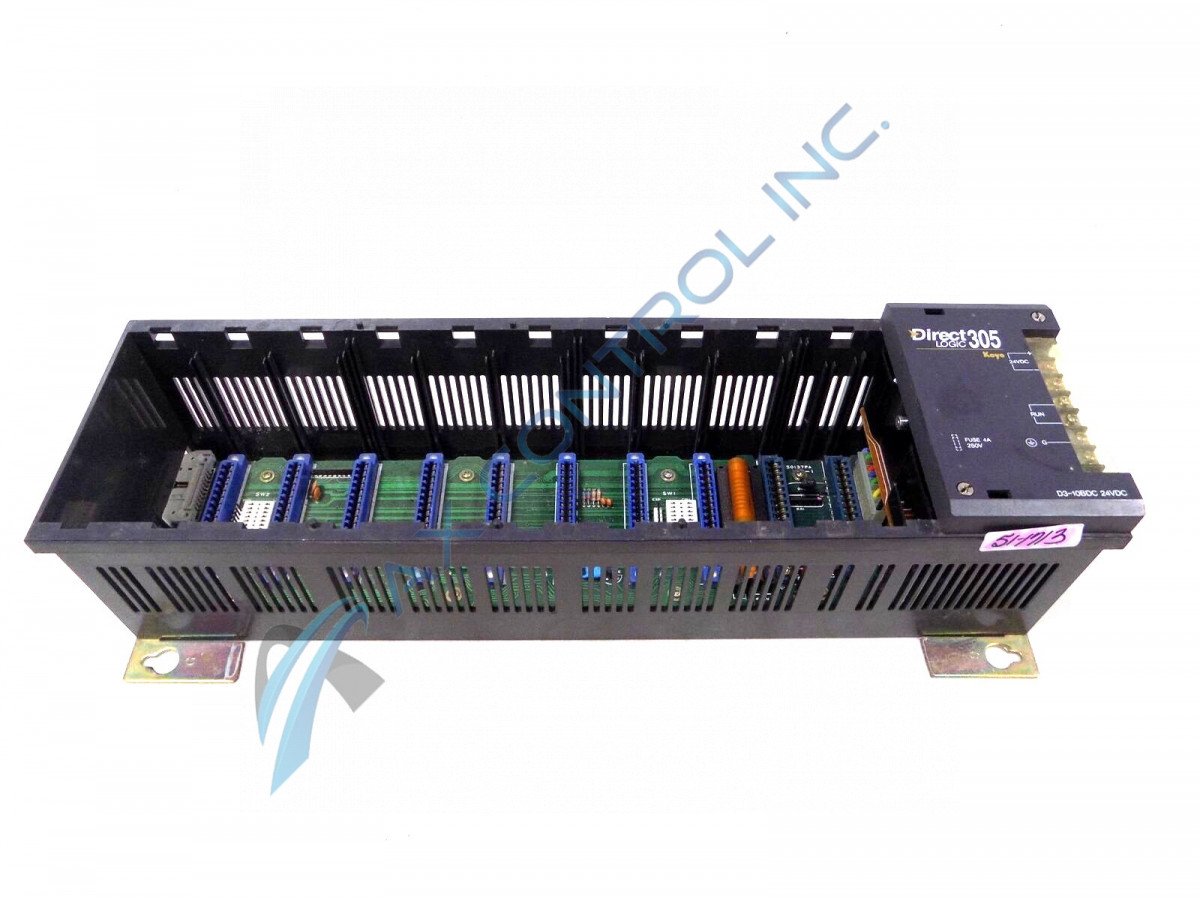

The D3-10BDC I/O Base contains 10 slots for CPUs, I/O devices, and other types of devices. The D3-10BDC can support one CPU base and two expansion bases. The D3-10BDC is a 10-slot I/O base so the expansion bases must be 10-slot or 5-slot expansion bases.  The input voltage range is 20.5-30VDC <10% ripple and the base power consumption is 65 Watts maximum. The maximum inrush current maximum is 30A. Dielectric strength is 1500VAC for one minute between 24VDC input terminals and run output.

The power supply output (voltage ranges and ripple) is (5VDC) 4.75-5.25V with 5% ripple, (9VDC) 8.5-10V with 5% ripple, and (24VDC) 20-28V with 5% ripple. The 5 VDC current supplied is 1.4A. The 9 VDC current supplied is 1.7A. The 24 VDC current supplied is 0.5A.

The fuse requirement is 4A (250V) user-replaceable.  The dimensions are 18.34 W x 4.85 H x 4.41 D in. (465Wx123Hx112D mm). The weight is 50.5oz. (1432g). The operating temperature is 32° F to 140° F (0° C to 60° C). The operating humidity is 5% to 95% relative humidity (non-condensing). The D3-10BDC supplies 900 mA at 5V, 2000 mA at 9V, and 500 mA at 24V. The model does not supply auxiliary 24 VDC output at the base terminal.




Repair Services For D3-10BDC

Type Lead Time Price Action
Repair Service 1-2 weeks $258

Our highly skilled technicians can repair your D3-10BDC. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

D3-10BDC Manuals, White Papers, Data Sheets, and Troubleshooting
