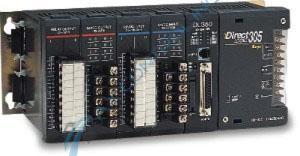

D3-10B-NR 110-220 VAC I/O Base

AVAILABILITY:

CALL FOR AVAILABILITY

Warranty: Learn More
Sell Surplus: Have a D3-10B-NR to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-10B-NR
  • SKU: D310BNRAD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

D3-10B-NR

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
D3-10B-NR 110-220 VAC I/O Base

AVAILABILITY:

CALL FOR AVAILABILITY

Warranty: Learn More
Sell Surplus: Have a D3-10B-NR to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-10B-NR
  • SKU: D310BNRAD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

Product Description

A limit to the D3-10B-NR I/O Base is that it must have a power source that supplies 10-220 VAC power. Another requirement is that the CPU is installed only in the first slot of the CPU base that resides locally.

The D3-10B-NR I/O Base is engineered with 10 slots. Only one CPU base and one expansion base can be supported by the base. You can use expansion bases that provide 5-slot or 10-slots.

The specification of the D3-10B-NR I/O Base are as follows

  • The base power consumption is 85 VA is the consumption for base power at the rated top limit.

  • Inrush current: 30A 1ms and no higher.

  • Power supply output:

    • 5VDC - Only rated from  4.75 through 5.25V current supplied is 1.0 A.

    • 9VDC - Only rated from 8.5 through 10V current supplied is 2.0A

    • 24VDC - Only rated from 20 through 28V current supplied is 0.5A

  • Auxiliary 24 VDC at 100mA maximum output.

  • The fuse is 2A (250V) and it is not able to be replaced.

  • Size: 15.55 W x 4.85 H x 4.41 D in. (395x123x112 mm).

  • Temperature in the environment surrounding the device: Between 32° F through 140° F (0° C through  60° C).

  • Operating humidity: Must be detected at between 5% and to 95% relative humidity (non-condensing).

The D3-10B-NR supplies 900 mA at 5V, 2000 mA at 9V, and 500 mA at 24V.
