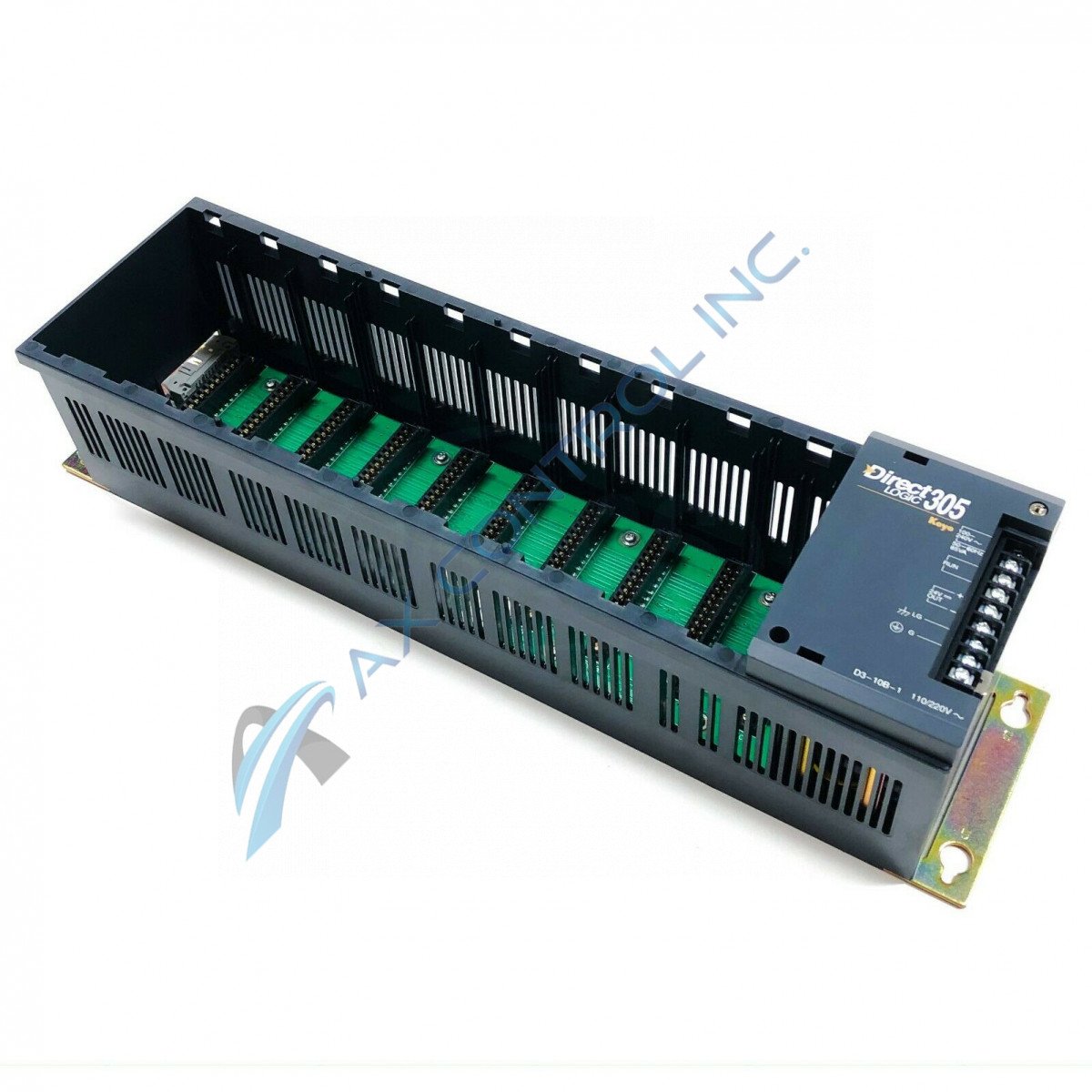

Automation Direct, DirectLogic 305, Koyo PLC Direct 10 Slot Base Local VAC.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a D3-10B-1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: D3-10B-1
  • SKU: AD-3104
  • Manufacturer: Automation Direct
  • Series: DirectLogic 305

D3-10B-1 Technical Specifications

Manufacturer Automation Direct
Series DirectLogic 305
Part Number D3-10B-1
Weight 3.2 lbs

About the D3-10B-1

  • The D3-10B-1 I/O Base features 10 slots for CPUs, I/O devices, and other components.
  • It supports one CPU base and one expansion base (which must be a 10-slot or 5-slot type).

Power Specifications
  • Input Voltage Range: 85-264 VAC, 47–63 Hz.
  • Base Power Consumption: 85 VA maximum.
  • Maximum Inrush Current: 30A for 1ms.
  • Dielectric Strength: 2000 VAC for one minute (between AC power supply terminals, run output, common, and 24VDC).
  • Power Supply Outputs (Voltage & Ripple):
    • 5VDC: 4.75-5.25V with 5% ripple.
    • 9VDC: 8.5-10V with 5% ripple.
    • 24VDC: 20-28V with 5% ripple.
  • Current Supplied:
    • 5 VDC: 1.0A (Supplies 1400 mA).
    • 9 VDC: 2.0A (Supplies 1700 mA).
    • 24 VDC: 0.5A (Supplies 600 mA).
  • Auxiliary 24 VDC Output: 100mA maximum, supplied at the base terminal.

Physical & Environmental Specifications

  • Fuse Requirement: 2A (250V), non-replaceable.
  • Dimensions: 18.3 in (W) x 4.85 in (H) x 4.41 in (D) [465 x 123 x 112 mm].
  • Weight: 51.1 oz (1450g).
  • Operating Temperature: 32°F to 140°F (0°C to 60°C).
  • Operating Humidity: 5% to 95% relative humidity (non-condensing).
