D3-10B

Product Description

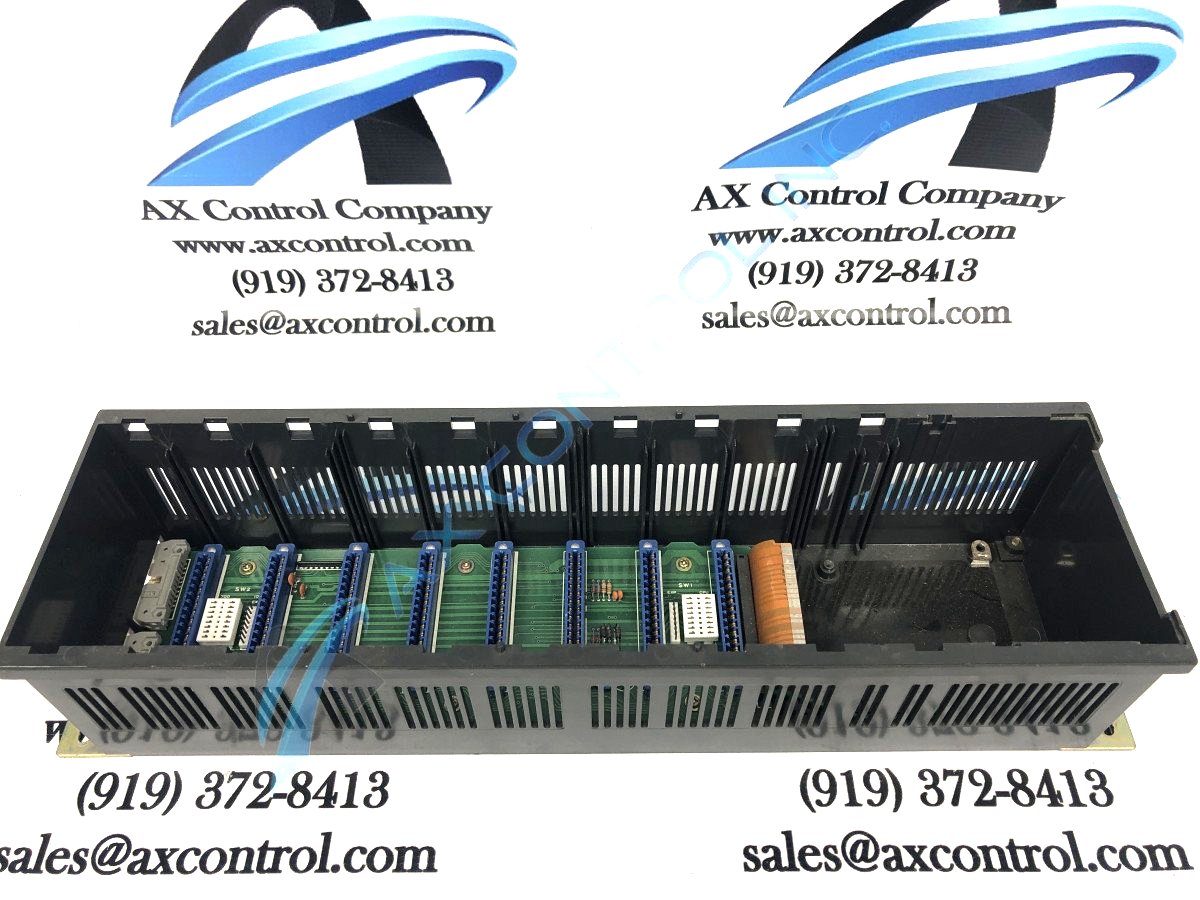

The D3-10B is a DirectLogic 305 I/O base.  This base is part of a series of modules used within the DL305 series of PLC components, which offer expandable capabilities and the ability to create a system specific to your small industrial control needs.

The D3-10B has ten individual slots that can be used for one CPU and nine other modules.  It has an input voltage range of 97-132 VAC, 47-63 Hz with a base power consumption of 70 VA max.  The inrush current is rated at 30 amps.   The unit includes a 2 A (250 V) user-replaceable fuse.

The D3-10B weighs approximately 50.5 ounces before the addition of packing materials.  It is 18.3 x 4.85 x 4.41 inches in dimensions. Operating temperature for this unit is 32 degrees Fahrenheit to 140 degrees Fahrenheit.  The unit should only be used in locations where humidity is non-condensing and remains between 5% and 95%.

OEM manuals provide specific and detailed information on how to properly wire this base module.  Please review this information before unboxing your part.  Damage will occur to the unit if it is improperly wired.  There is also a risk of electrical shock if the installation is improperly completed or if terminals are touched during installation.

If you have any questions about the availability of this or any other component, please check our online inventory updates.  You can also reach out to our staff.  In-stock products typically ship out to you on the same day your purchase order is received, if received before 3 pm.
