D3-08TD2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
D3-08TD1 is a DirectLogic DL305 discrete sourcing 8 output point module. Nominal Output is 6-24 VDC. It has 2 Non-Isolated Output Commons with 8 points per common

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-08TD2 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

D3-08TD2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
D3-08TD1 is a DirectLogic DL305 discrete sourcing 8 output point module. Nominal Output is 6-24 VDC. It has 2 Non-Isolated Output Commons with 8 points per common

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a D3-08TD2 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The D3-08TD2 is a DirectLogic output module.  This is one of many modules for the DL305 available here at AX Control, including input and output modules, CPUs, and bases.  The DL305 is an expandable, customizable PLC system designed for industrial control of a number of small applications.

The D3-08TD2 is a 24 VDC output module with 8 outputs.  The unit has 2 internally connected commons per module.   This module uses NPN transistor emitter-follower output type.   It has a peak voltage of 40 VDC and a max current of 0.5A/point, 1.8A/common.    The unit has two non-replaceable fuses, one 3A per common.  The terminal board on the front faceplate is non-removable.

Output modules like the D3-08TD2 are typically assigned a YO through Y777 address.  Keep this in mind when setting up your system.

Module placement is important as you design and build your DL305 system.  Be sure to take temperature and humidity readings into account when planning your system.  Additionally, wiring must remain as short as possible between modules.

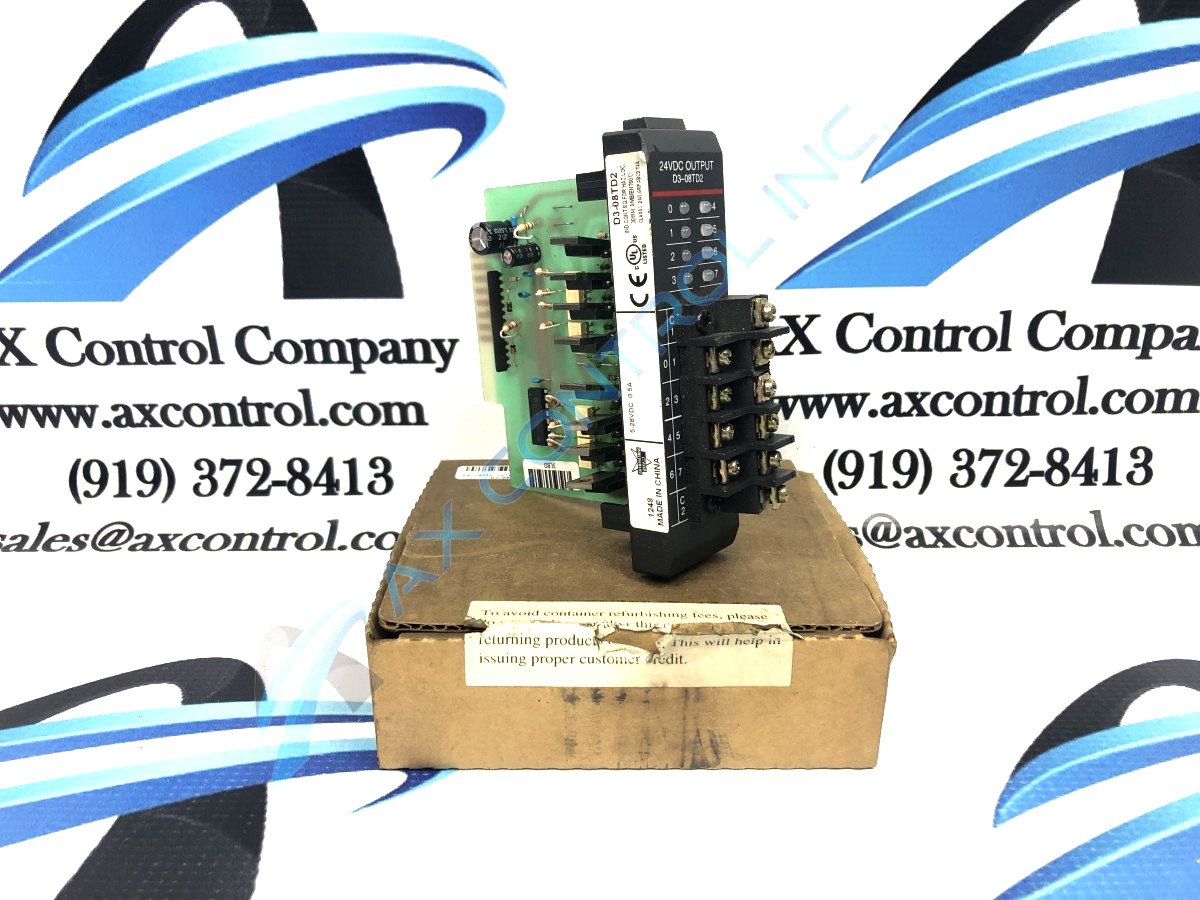

The D3-08TD2 is designed as a circuit board with a front faceplate.  The faceplate includes indicator lights and the previously mentioned terminal strip. The circuit board includes integrated circuits, vertically mounted resistors, and transistors.  The unit is CE marked and is also UL listed.

Talk to our staff today if you have any questions about availability or shipping time.  Most of our in-stock products can ship as quickly as a few hours.   Limited stock products may take longer.
